Chapter 2: Installation
Page 2-2 BRIM-A6 User’s Guide
2.2 INSTALLING APIMS
To install an APIM into the BRIM-A6:
1. Attach the disposable grounding strap to your wrist (refer to the
instructions on the disposable grounding strap package).
2. Remove the two faceplate screws from the BRIM. See Figure 2-1.
3. Remove the three screws from the BRIM standoffs. See Figure 2-1.
4. Insert the APIM connector into the BRIM connector. See Figure 2-1.

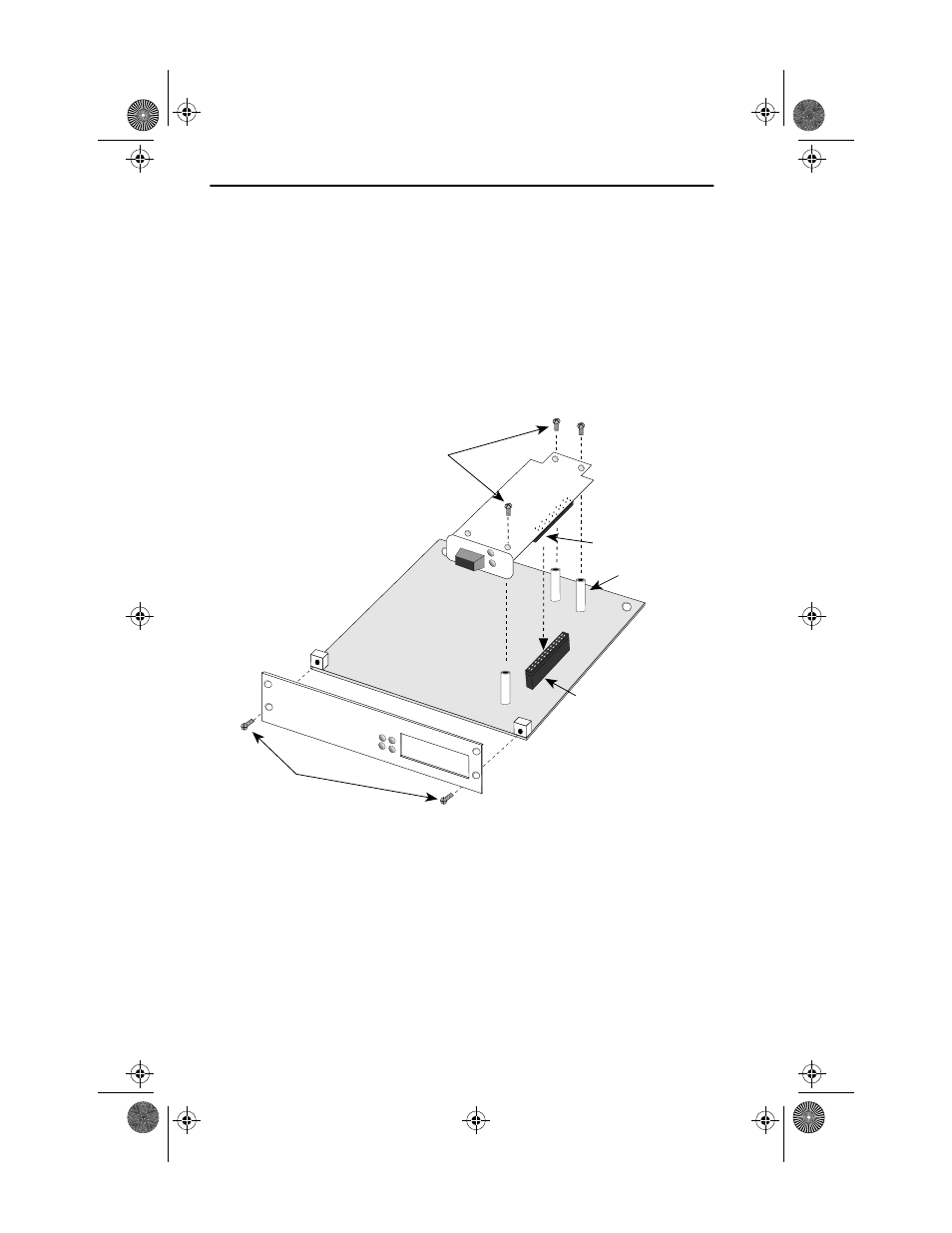

Figure 2-1 Installing an APIM
5. Press down firmly on the APIM until the APIM connector slides all the
way into the BRIM connector. Ensure the APIM sits flush on the
standoffs.
6. Secure the APIM with the screws provided with the APIM.
7. Reattach the faceplate to the BRIM.
131101
PWR
RCV
XMT
STS
BRIM-A6
APIM
LNK
STS
BRIM
CONNECTOR
FACEPLATE SCREWS
APIM CONNECTOR
STANDOFF
APIM SCREWS
