8
This configuration offers many different options from the
bi-directional mounting feature for both the QD mount and the
riser. The riser can be installed in either direction depending on
your preference. The same for the QD mount. (NOTE: Figures
included only show one example direction.) Locate four screws
and install a spring washer and a flat washer onto each screw.

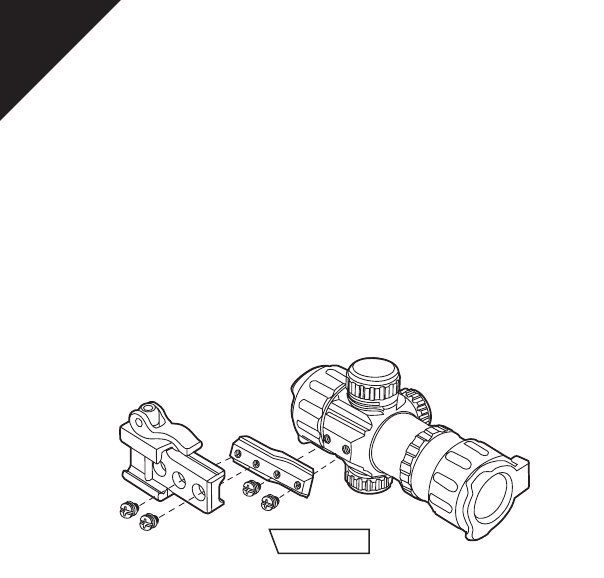

I. Install Riser: Align the riser to the mating base on
the dot sight based on the direction suitable for your
application. Install and fasten two screws to fully secure
the riser as shown in Fig 1.
A. Install QD Mount with Riser:
(for SCP-DS3840W and SCP-DS3039W only)
Fig 1
