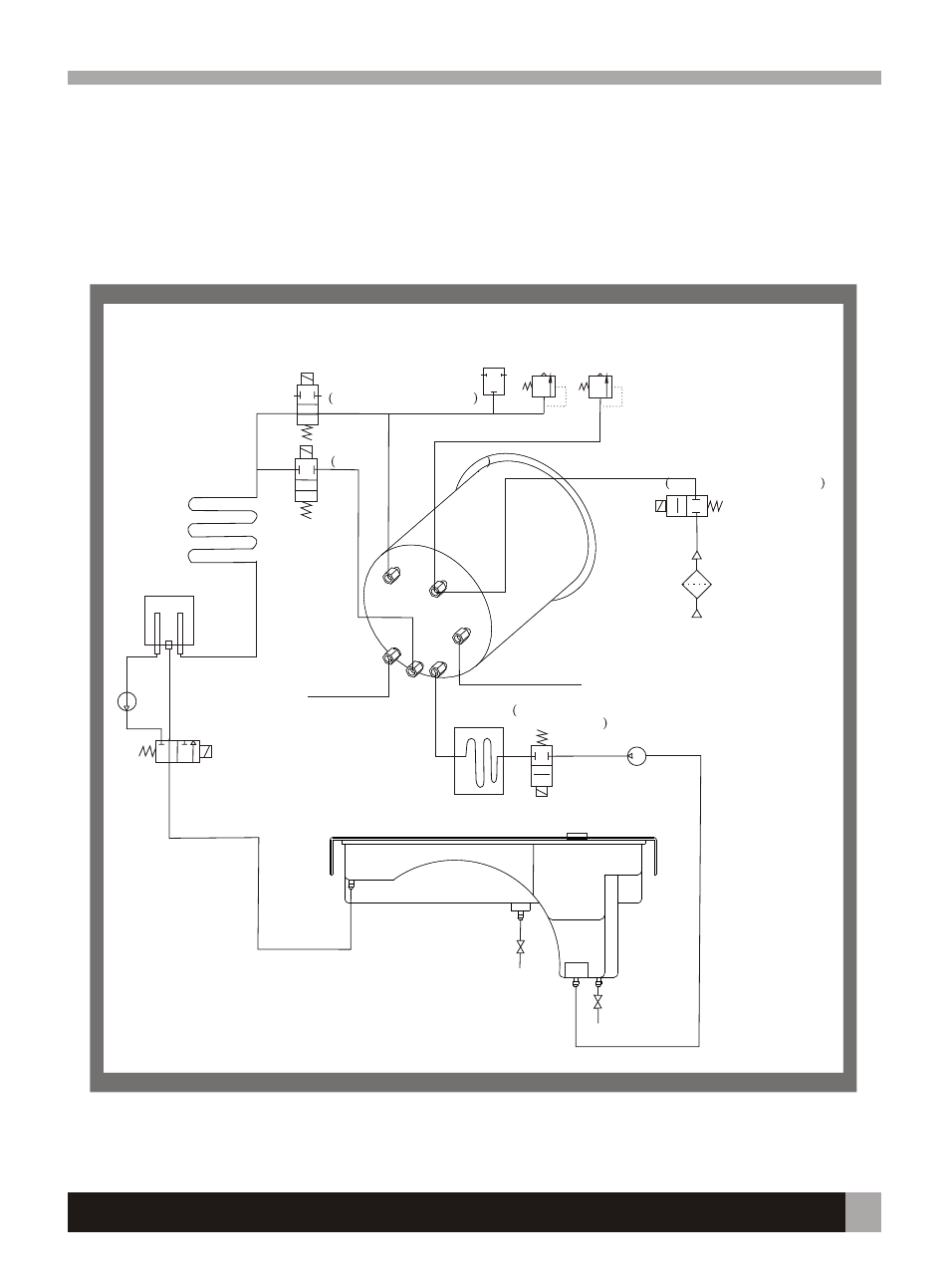

Piping
Operation manual
SEA Series Steam Sterilizers
26
Safety valve
Fill air solenoid valve
Normally closed valve
Air filter
Steam valve
Normally
closed valve
Let in air pump
(water pump)
manual water
filling exit
drain connection
Used water tank
Clean water tank
Vacuum pump
two position three pass valve
(vacuum valve)
Condense
Condense pipe
Used water
drain connection
Steam
generator
Inner temperature sensor
Vent steam valve
Normally open valve
Pressure sensor
Vent water valve
Normally closed valve
Chamber
Steam pressure lock
Filter net
