Removal and Replacement Procedures
Maintenance and Service Guide
5–47
5. Lift up on the back edge of the charger board 3 to disconnect
it from the system board.
6. Remove the charger board 4 from the base enclosure.

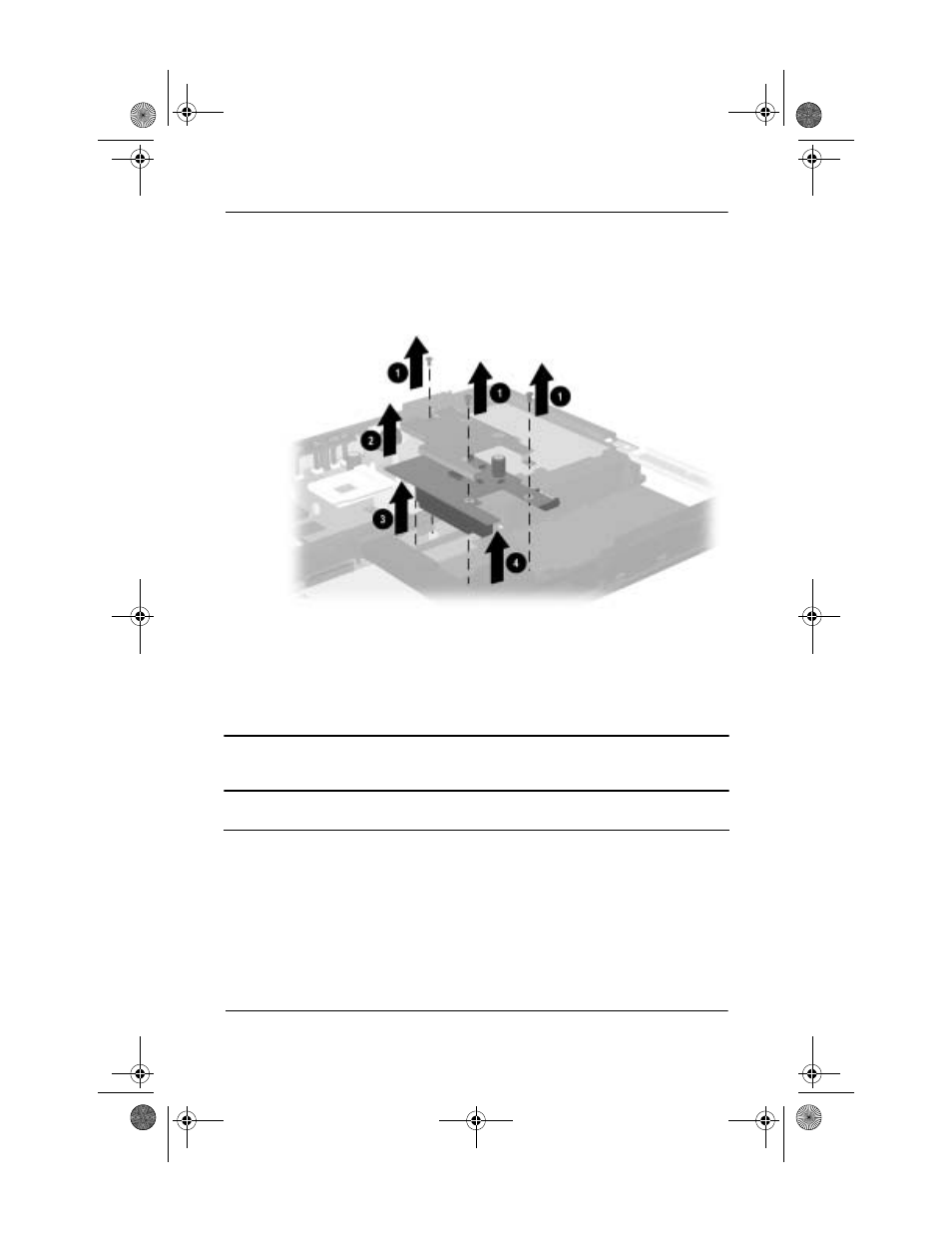

Figure 5-37. Removing the Charger Board
Reverse the preceding procedures to install the charger board.
5.19 Speaker Assembly
1. Prepare the computer for disassembly (Section 5.3).
2. Remove the palm rest (Section 5.14).
3. Remove the charger board (Section 5.18).
Speaker Assembly
Spare Part Number Information
Speaker assembly
285538-001
279372-001.book Page 47 Friday, July 19, 2002 11:50 AM
