Compaq 1500 User Manual
Page 107
Removal and Replacement Procedures
Maintenance and Service Guide
5–15
1. Prepare the computer for disassembly (Section 5.3).
2. Turn the computer bottom side up with the rear panel facing
forward.
3. Remove the PM2.5 × 4.0 screw 1 that secures the mini PCI
compartment cover to the base enclosure (Figure 5-12).
4. Slide the cover to the left 2.
5. Lift the left edge of the cover and swing it to the right 3.
6. Remove the cover.

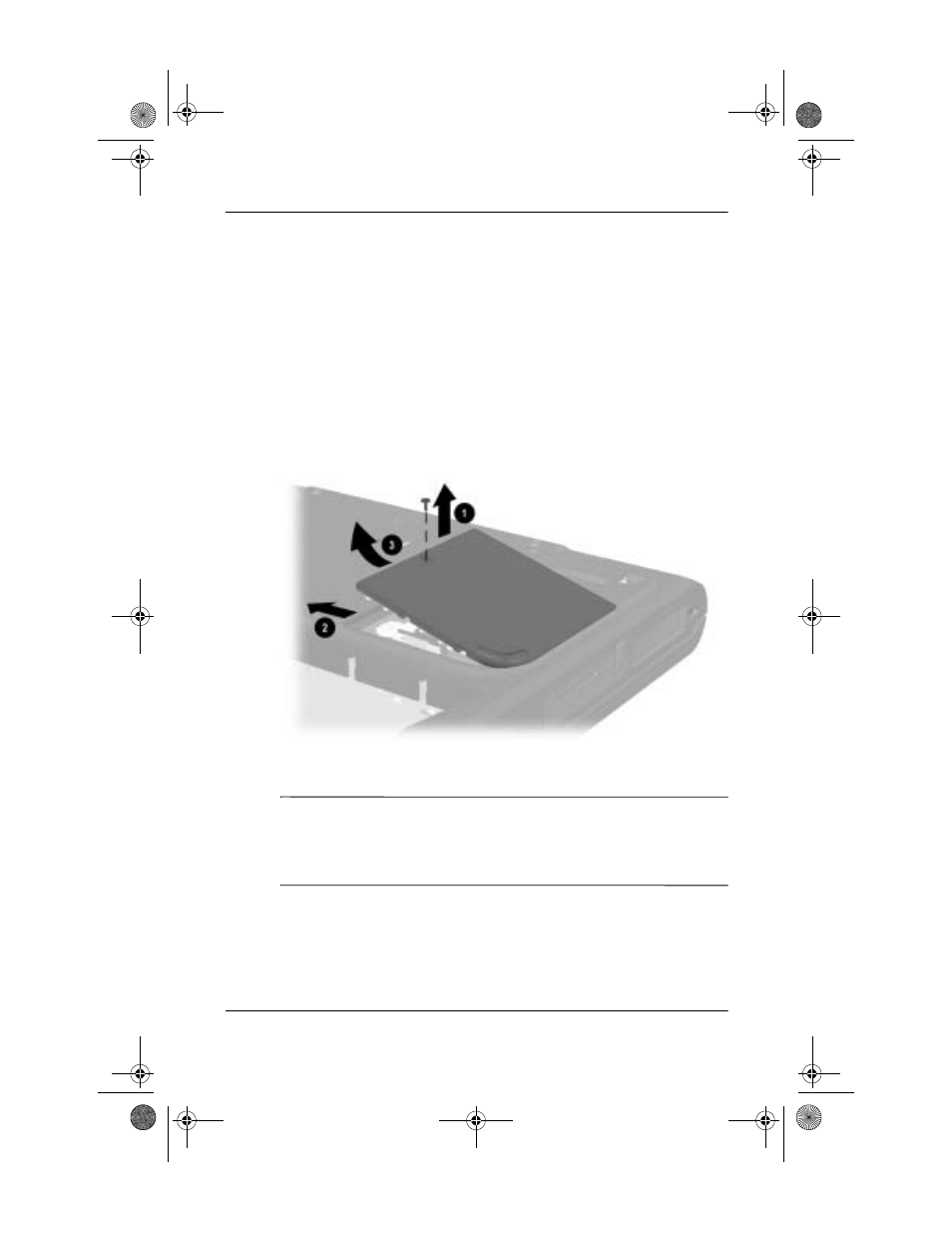

Figure 5-12. Removing the Mini PCI Communications
Slot Cover
✎
Mini PCI compartment covers are available with carbon finish for
Evo Notebook N1000 models and silver finish for Presario 1500
models, and are included in the Miscellaneous Plastics/Hardware
Kit, spare part number 285541-001.
