Removal and Replacement Procedures
Maintenance and Service Guide
5–19
5.9 LED Cover
1. Prepare the computer for disassembly (Section 5.3).
2. Turn the computer bottom side up with the rear panel facing
forward.
3. Remove the two TM2.5 × 8.0 screws that secure the LED
cover to the base enclosure (Figure 5-16).

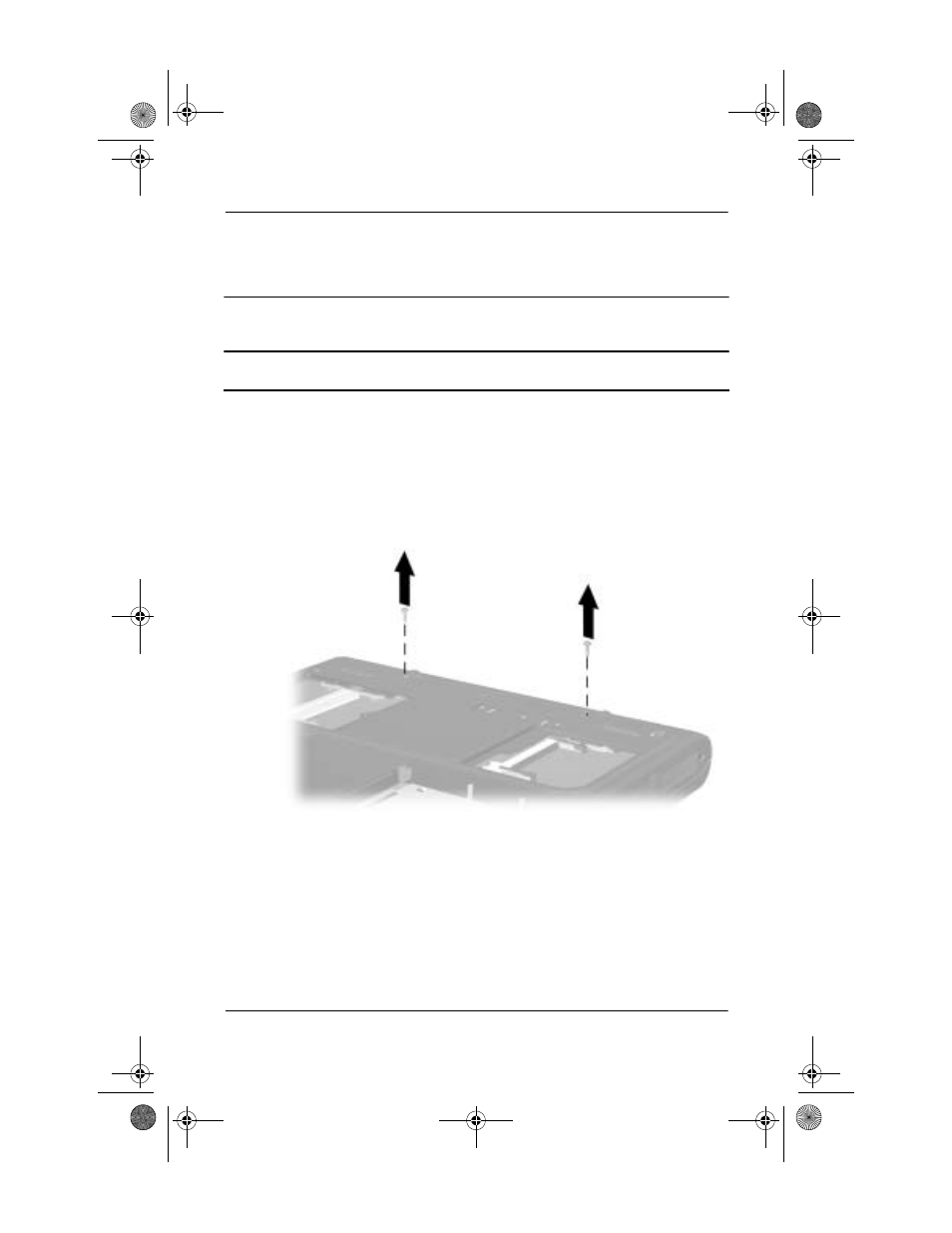

Figure 5-16. Removing the LED Cover Screws
4. Turn the computer top side up with the front facing forward.
5. Open the computer.
LED Cover
Spare Part Number Information
LED cover
295736-001
