9.10.1.1 PC/DB-9F to PXL-250/DB-9M Direct Serial Connection
This is the wiring information for a Keri Systems KDP-252 cable.

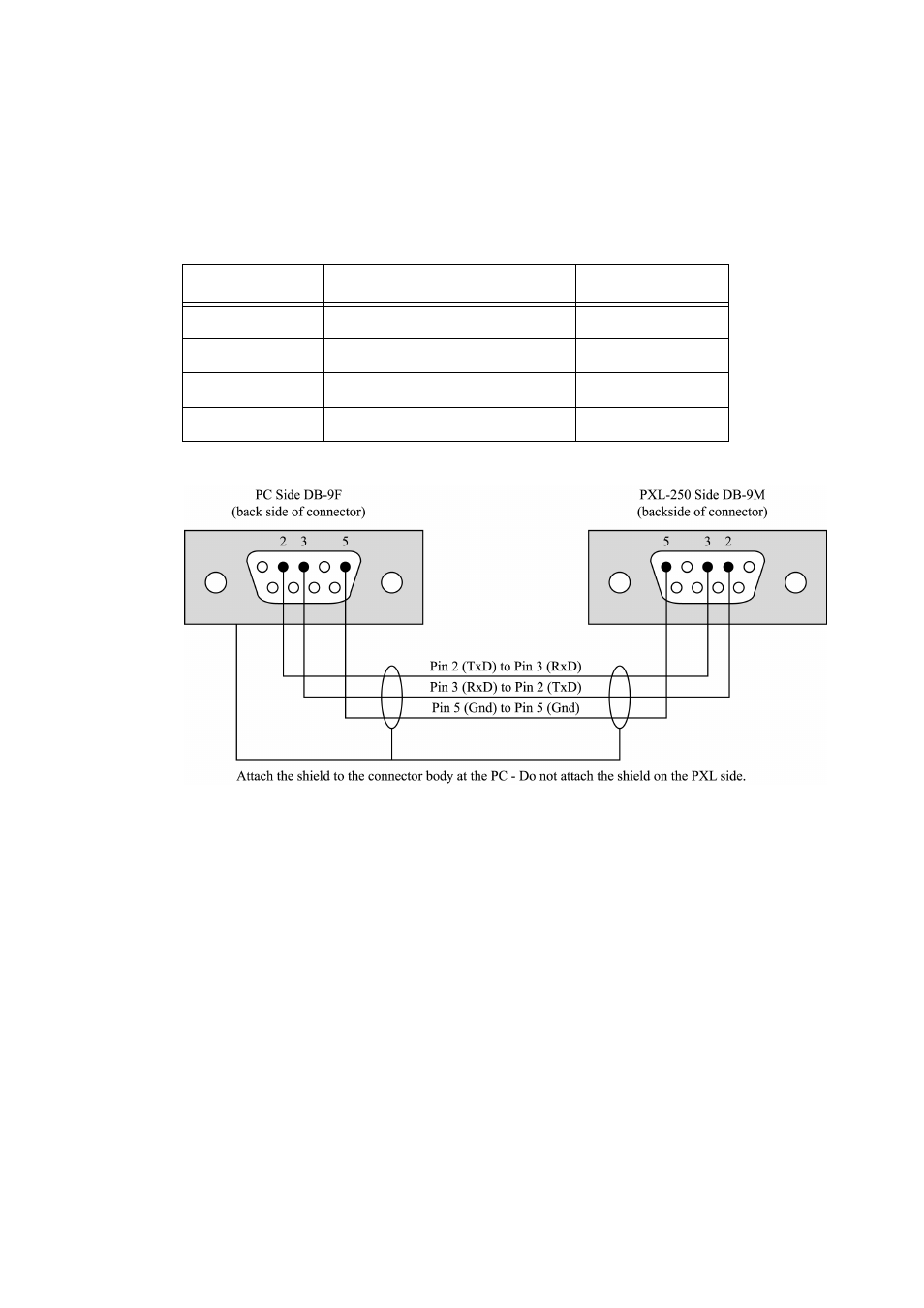

Figure 9-14: PC/DB-9F to PXL-250/DB-9M Cable Wiring
Table 15: PC/DB-9F to PXL-250/DB-9M Cable Wiring
PC DB-9F RS-232 Standard Wire Color PXL-250 DB-9M
Pin 2 – TxD Green Pin 3 – RxD
Pin 3 – RxD Red Pin 2 – TxD
Pin 5 – GND Black Pin 5 – GND
Connector Body Shield no connection
