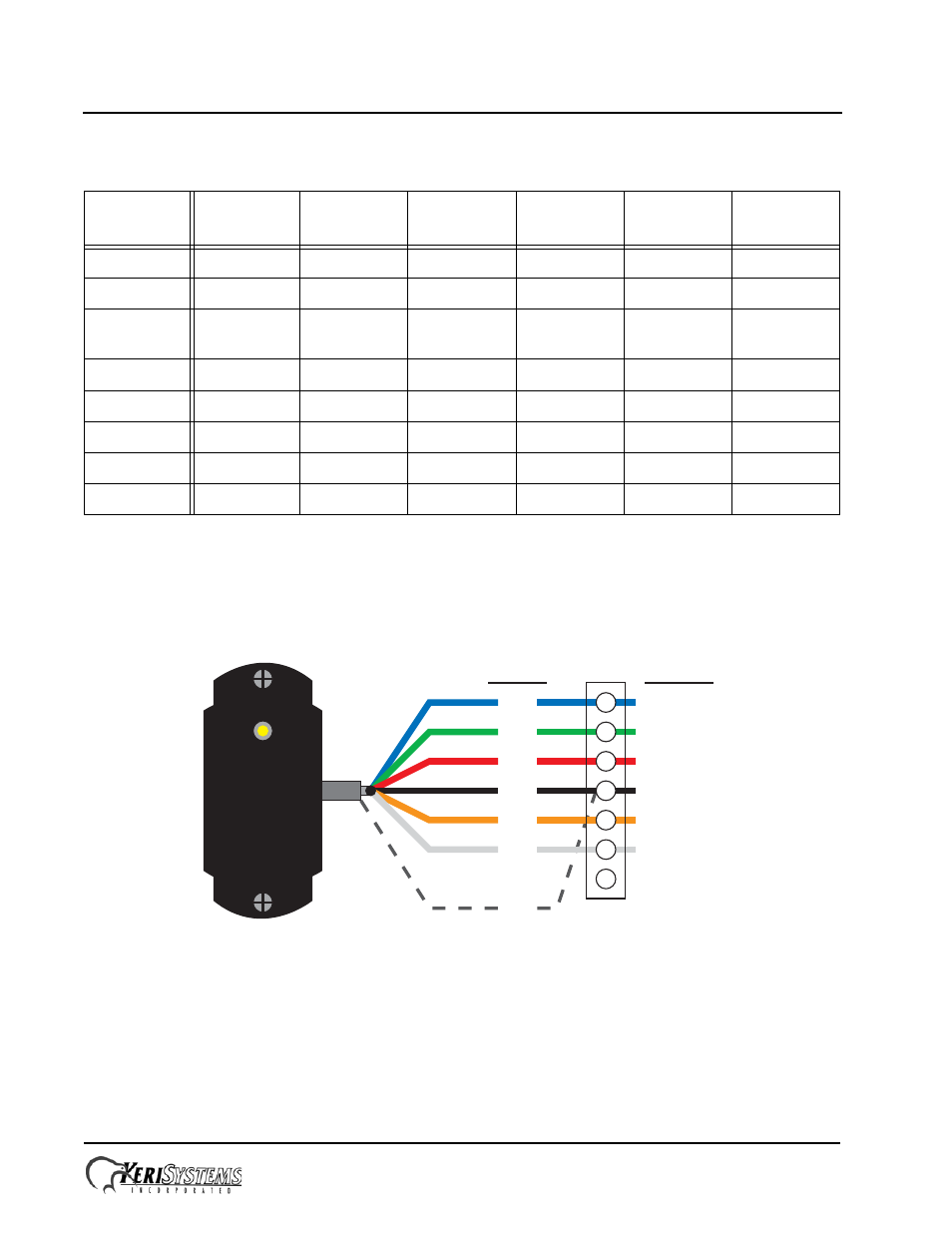

PXL-380 Access Controller
Installation Guide
Page 2 of 7
P/N: 01239-002 Rev. D
2.0
Reader Connections
2.1
Keri MS Reader
Table 1: Cable Matrix
Conductors
Shield
Twisted
Pair
Stranded
AWG
Max
Length
485 Network
2
Y
Y
Y
24
4,000 ft
Power
2
N
N
Y
18
200 ft
Earth
Ground
1
N
N
N
18
as short
as possible
Output
2
N
Y
Y
20
100 ft
Input
2
N
N
Y
22
100 ft
Serial Comm
3
Y
N
Y
24
50 ft
Modem
5
Y
N
Y
24
50 ft
Readers
6
Y
Y
Y
24
500 ft
2
3
5
6
7
Blue
Green
Red
Black
Brown
White
Silver
Wiring applies to both TB-5 / A-Reader and TB-6 / B-Reader.
- not used -
Antenna
Beeper
Power
Ground
Green LED
Red LED
Cable Shield
- not used -
Wire Color
Function
1
4
TB-5/6
