A–4

Maintenance and Service Guide

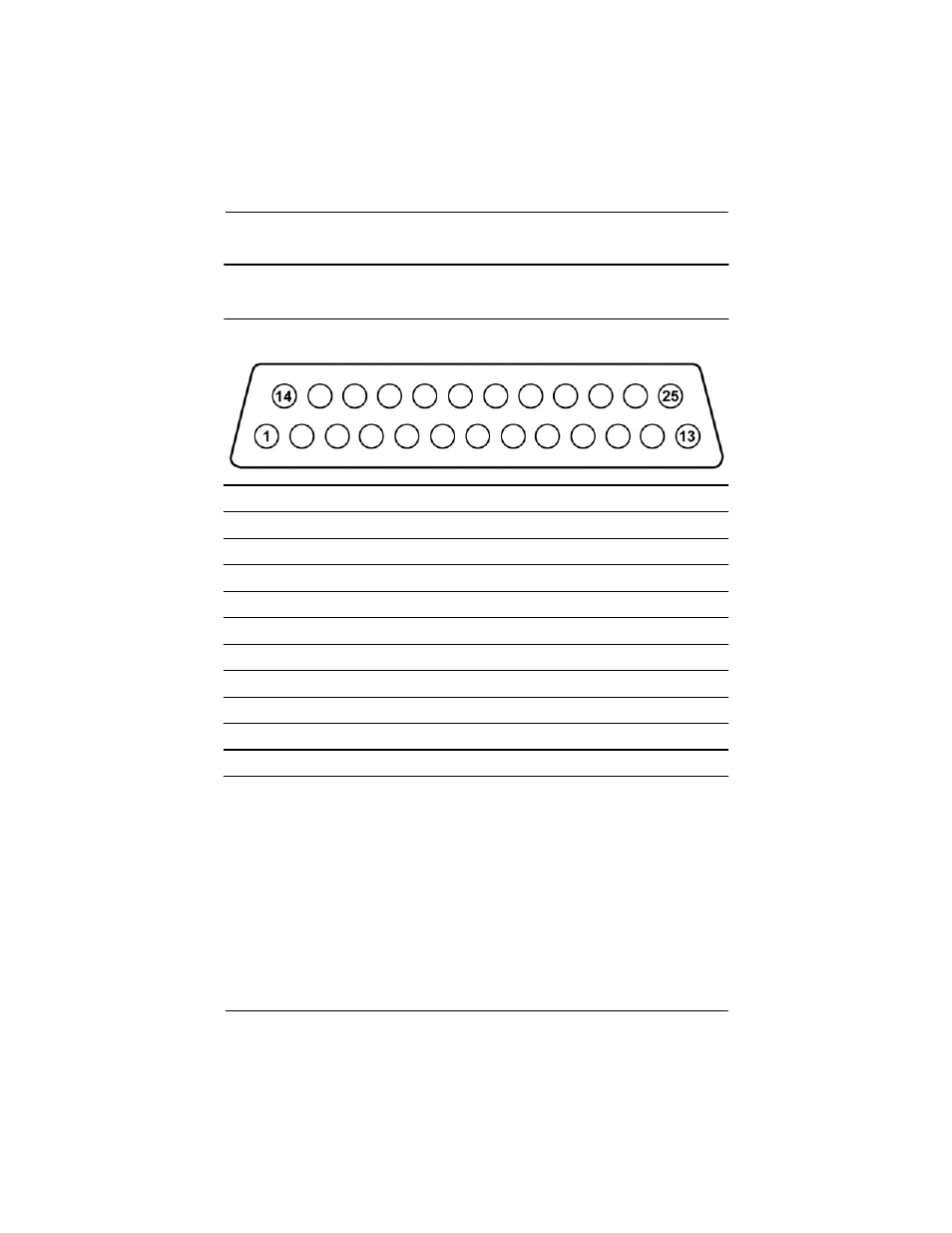

Connector Pin Assignments

Table A-6

Parallel

Pin

Signal

Pin

Signal

1

Strobe*

10

Acknowledge*

2

Data bit 0

11

Busy

3

Data bit 1

12

Paper out

4

Data bit 2

13

Select

5

Data bit 3

14

Auto line feed*

6

Data bit 4

15

Error*

7

Data bit 5

16

Initialize printer*

8

Data bit 6

17

Select in*

9

Data bit 7

18-25

Signal ground

*Signal is active low.
