Compaq N1020V User Manual
Page 158
5–52
Maintenance and Service Guide
Removal and Replacement Procedures
4. Turn the base enclosure top side up with the front facing
forward.
5. Remove the three TM2.5 × 5.0 screws 1 that secure the top
cover to the base enclosure (Figure 5-40).
6. Lift the top cover straight up 2 approximately one inch, then
slide it forward 3 until the microphone cable 4 is exposed.
7. Disconnect the microphone cable 5 from the system board.
8. Remove the microphone 6 from the top cover.
9. Remove the top cover from the base enclosure.

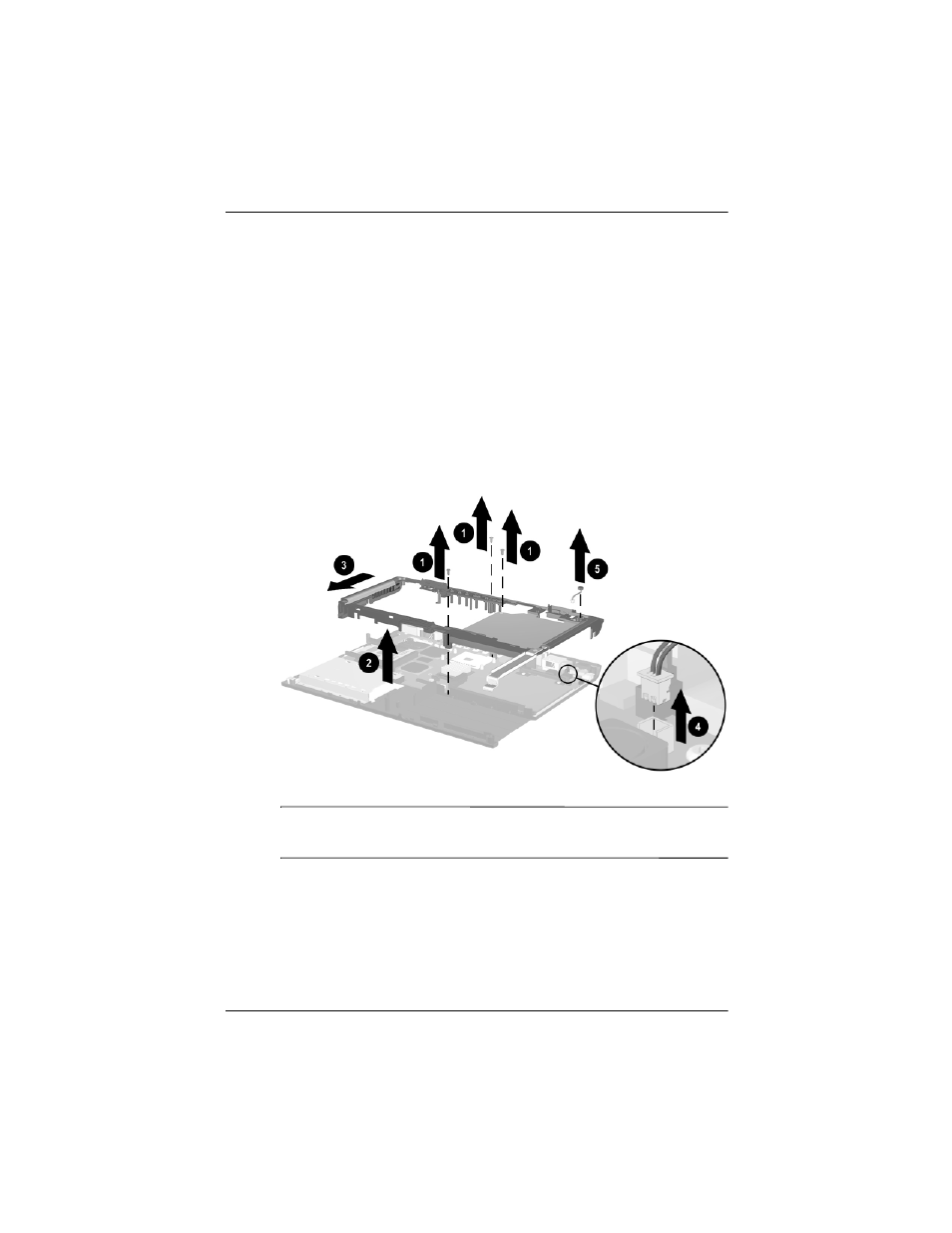

Figure 5-40. Removing the Top Cover and Microphone
✎
The microphone is included in the Miscellaneous Cable Kit,
spare part number 285540-001.
