Maintenance and Service Guide

Removal and Replacement Procedures

5.9 LED Cover

1. Prepare the computer for disassembly (Section 5.3).

2. Turn the computer bottom side up with the rear panel facing

forward.

3. Remove the two TM2.5 × 8.0 screws that secure the LED

cover to the base enclosure (Figure 5-16).

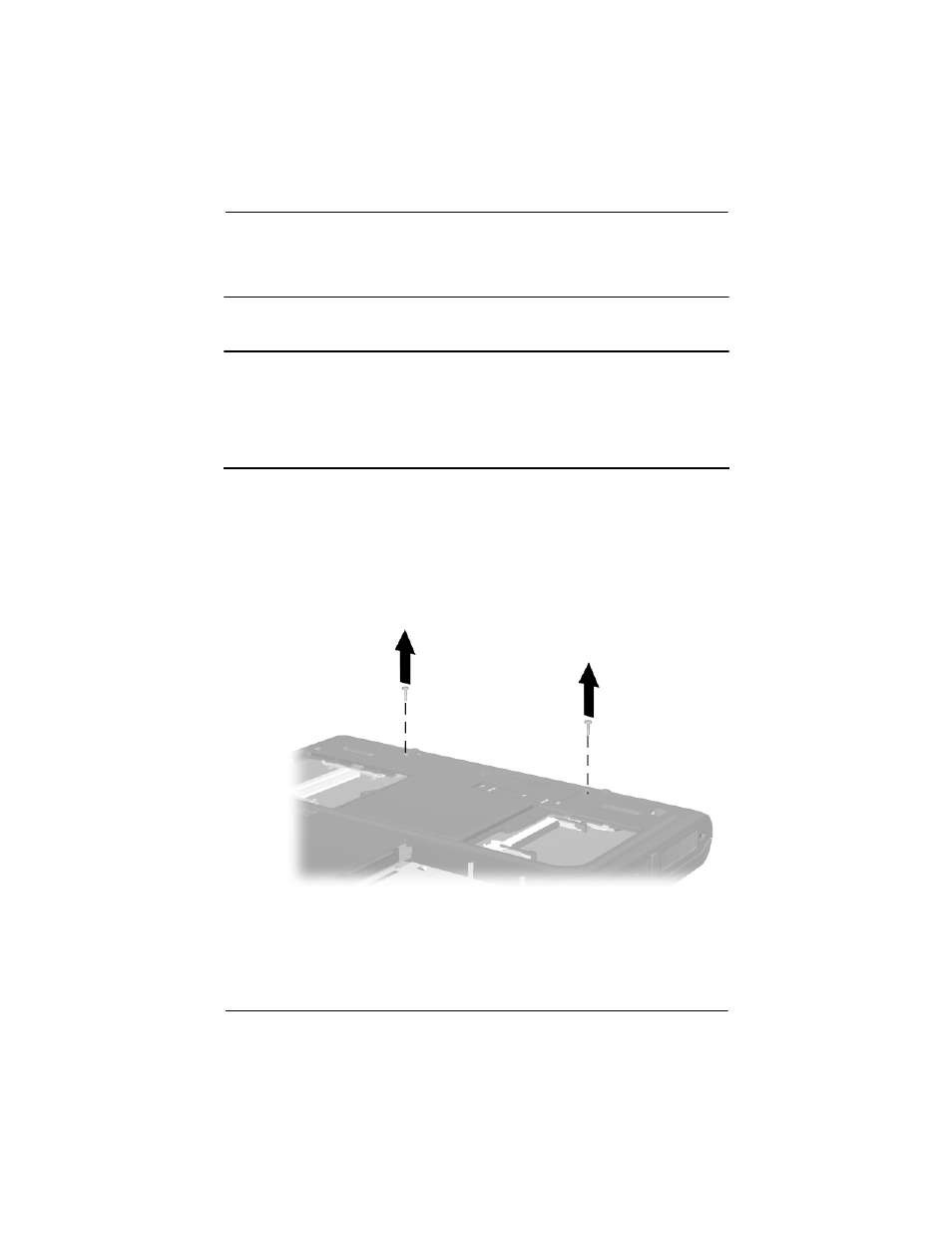

Figure 5-16. Removing the LED Cover Screws

LED Cover

Spare Part Number Information

LED cover

for use only with Evo Notebook N1020v models and Presario

1500 models with config. codes beginning with “L”

for use only with Evo Notebook N1000v models and Presario

1500 models with config. codes beginning with “K”

310695-001

295736-001
