4
DVHVAC36
10001195
W
U
V L
X
F
I
C
D
A
E
B
G
H
V
T
J
K
R
O
N
M
L
P S Q
Z
1195
DVHVAC
Specs
8/20/03 djt

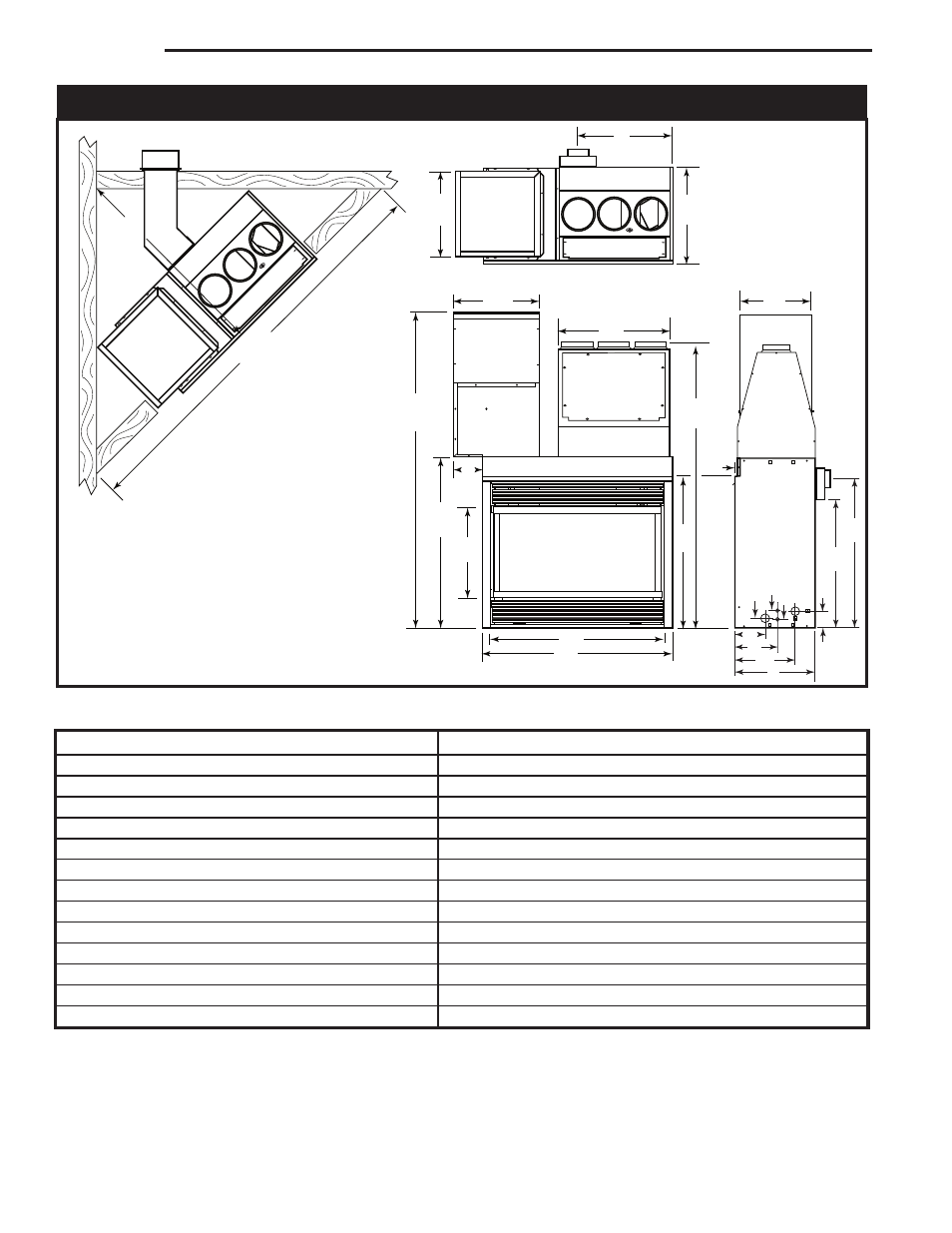

Fireplace Dimensions
Fig. 2 Fireplace specifications.
Ref. DVHVAC36 Ref. DVHVAC36
A 36" (914 mm) N 9⁵⁄₈" (245 mm)
B 34¹⁄₄" (870 mm) O 6⁷⁄₈" (175 mm)
C 21" (533 mm) P 2⁹⁄₃₂" (58 mm)
D 33" (838 mm) Q 2" (51 mm)
E 63⁵¹⁄₆₄" (1621 mm) R 3¹³⁄₁₆" (97 mm)
F 70" (1780 mm) S 4" (102 mm)
G 16⁵⁄₃₂" (410 mm) T 1/2" (13 mm)
H 21⁵⁄₃₂" (537 mm) U 18" (457 mm)
I 38³⁄₁₆" (970 mm) V 16⁷⁄₂₁" (412 mm)
J 28¹⁵⁄₁₆" (735 mm) W 83¹⁄₈" (2111 mm)
K 33¹⁄₂" (851 mm) X 5³⁄₈" (136 mm)
L 18³⁄₁₆" (462 mm) Y 58³⁄₄" (1493 mm)
M 13²¹⁄₃₂" (347 mm) Z 41⁹⁄₁₆" (1056 mm)
