Vermont Casting DVHVAC36 - Manual (Page 20)

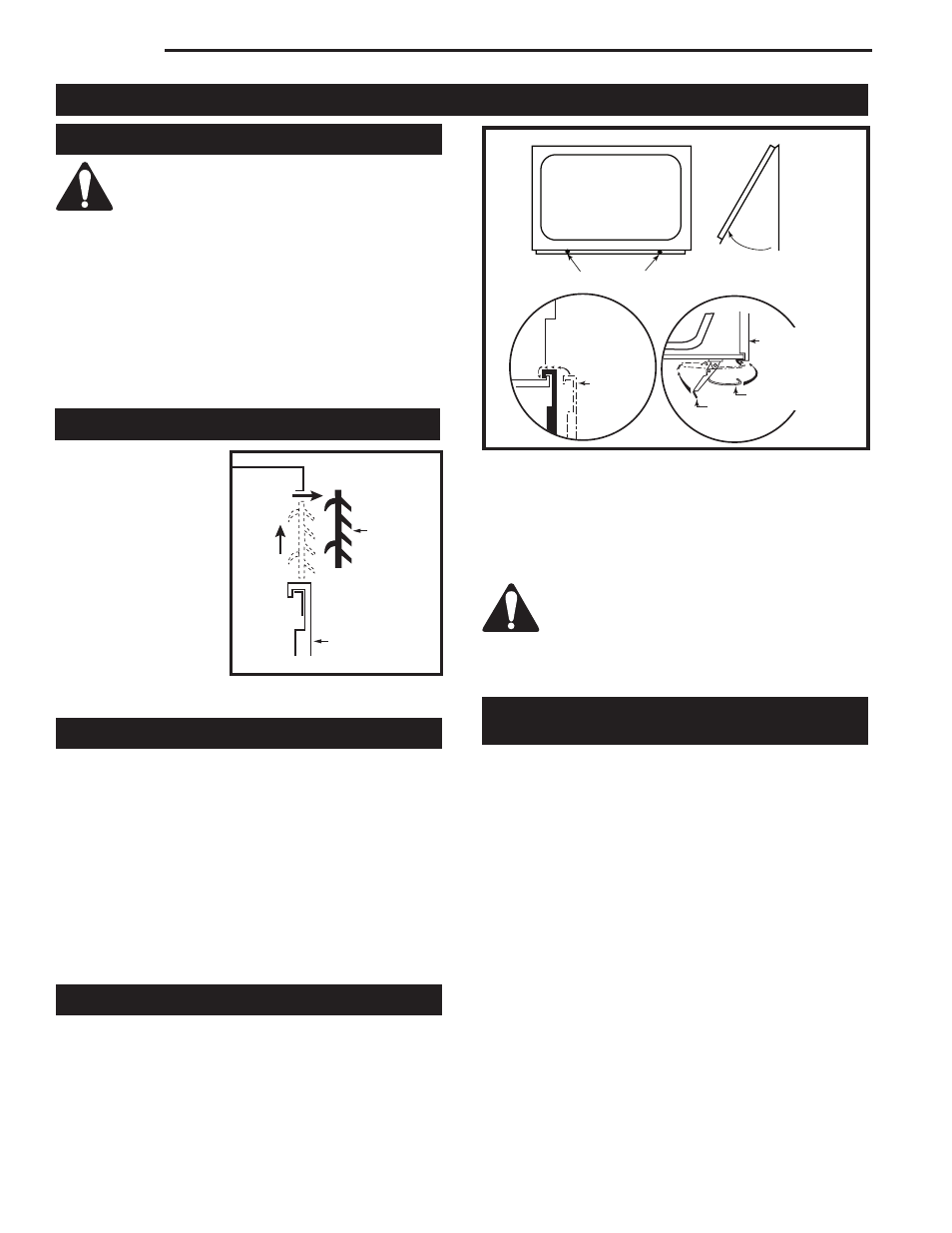

20
DVHVAC36
10001195
Operating Instructions
General Glass Information
Only glass approved by Vermont Casting,
Majestic Products should be used on this
fireplace.
• The use of non-approved replacement glass will void
all product warranties.
• Care must be taken to avoid breakage of the glass.
• Do not operate appliance with glass front
removed, cracked or broken.
• Replacement of the glass (complete with gasket)
is available through your Majestic Fireplaces
dealer and should be done by a licensed
qualified service person.
Louvre Removal
To remove top louvre,
pull louvre up and
then lift out. (Fig. 35)
1.
2.
FP1227
Louvre removal
11/02
Top Lou-
vre
Assembly
Window
Frame As-
sembly
FP1227
Fig. 35 Remove top louvre as-
sembly.
Window Frame Assembly Removal
1. Shut off gas.
2. Let the fireplace cool if it has been operating.
3. Remove top louvre assembly. (See Louvre Removal)
4. Open the lower louvre assembly.
5. Release the two clamps at the bottom of the window
frame by pulling down on the clamp handles. (Fig.
36)
6. Tilt window frame assembly out slightly at the bot-
tom, lift the frame up and away from the fireplace.
7. To replace window frame assembly, reverse this
procedure.
Glass Cleaning
It will be necessary to clean the glass periodically.
During start-up, condensation, which is normal, forms
on the inside of the glass and causes lint, dust and
other airborne particles to cling to the glass surface.
Also initial paint curing may deposit a slight film on
the glass. It is therefore recommended the glass
FP1405
DVHVAC
remove glass frame
8/03
Clamps
Glass
Frame
Fireplace
Front
Window
Frame
Assem-
bly
Window
Frame
Assembly
Pull Clamp Hook
Push
Clamp
Handle
FP1405
Fig. 36 Window frame assembly removal.
be cleaned two or three times with a non-ammonia
household cleaner and warm water (we recommend
gas fireplace glass cleaner). After that the glass should
be cleaned two or three times during each heating
season depending on the circumstances present.
Clean glass after first two weeks of
operation.
Do not clean glass when it is hot.
Do not use abrasive cleaners.
Do not strike or slam the glass.
Installation of Logs &
Burner Lava Rock Material
Refer to Figure 37.
1. Remove window frame assembly.
2. Remove logs from packaging.
3. Place rear log (B15) on rear bracket (ensure log is
seated properly, levelled and centered to the unit),
so it will not move from side to side and it is firmly
positioned on the bracket.
4. Slip front ember log (B12) down in the front deflector.
5. Place front left log (B13) on top burner, left side. Use
log's bottom holes to locate it into the left bracket log
locator studs.
6. Place front right log (B14) on top of burner, right
side. Use log's bottom holes to locate it into the right
bracket log locator studs.
7. Place burner lava rock on top of burner. (Fig. 37)
Refer to "Setting Temperature Rise".
8. Place top right log (B17) onto locator notches.
Ensure log is secure.
