Optional Accessories
Decorative Bay Window
1. Remove existing bottom louvre assembly and hinges
from fireplace. (Set aside the two (2) self tapping
screws).
2. Remove existing top louvre from fireplace.
3. Assemble Bay Window Kit according to instructions
supplied with kit.
4. Place the two pieces of ceramic refractory along the
base of the bay window. (Fig. 43)
5. Hang bay window assembly over existing window
frame assembly.
Do not remove existing window frame as-
sembly.
6. Re-install upper louvre assembly.
Remove all plastic from brass trims.
7. Bottom brass trim is removable when unit is installed
with marble or tile surround which covers the fire-
place bottom.
When fitting the bay window kits, the
original front frame/glass assembly must
remain in place. The bay window kit is fit-
ted over the existing front glass.
Ceramic Re-
fractory
Brass Window
Top
Brass Window Bottom
Brass Bottom FP1407

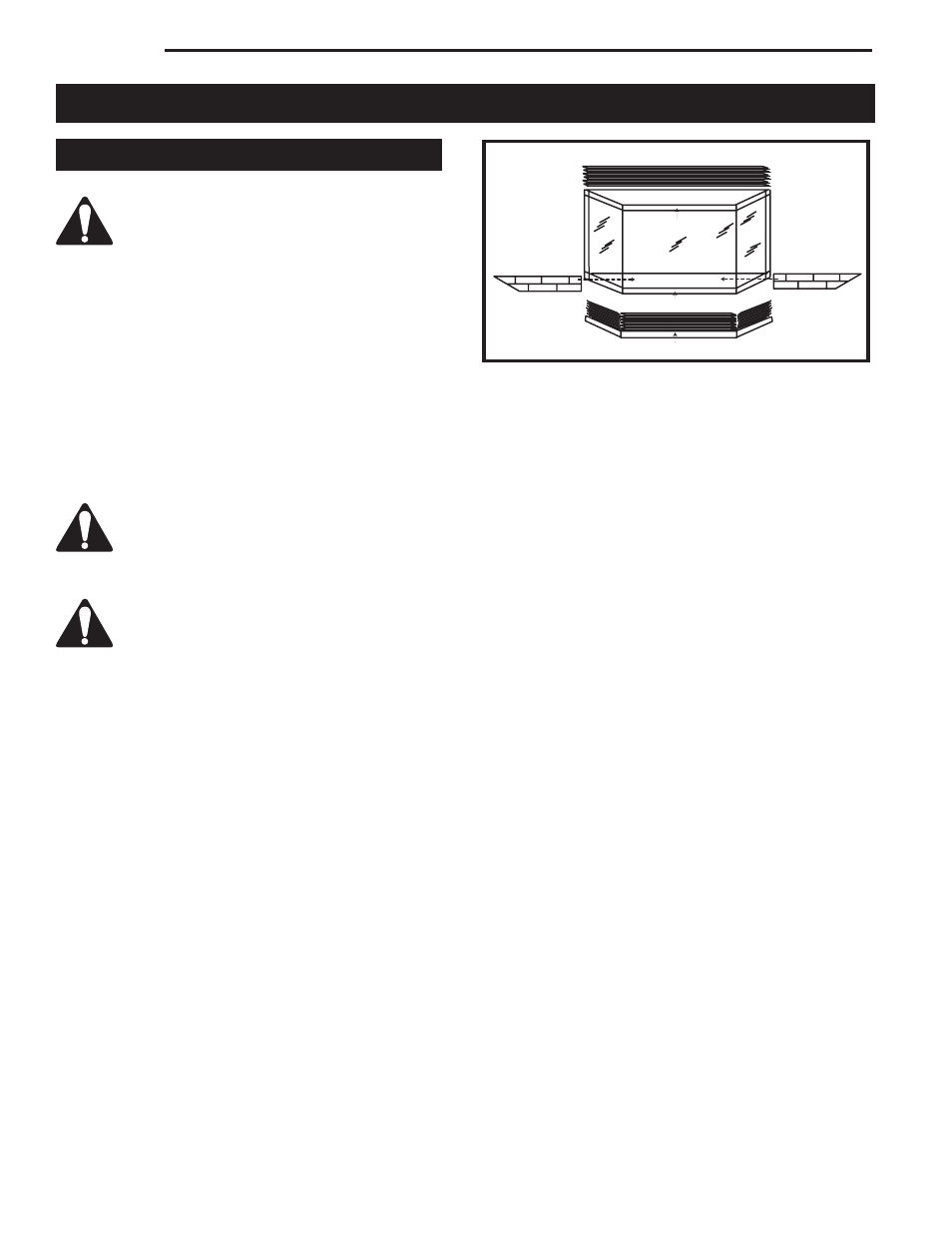

Fig. 43 DVHVAC36 bay window.
Ceramic Re-
fractory
