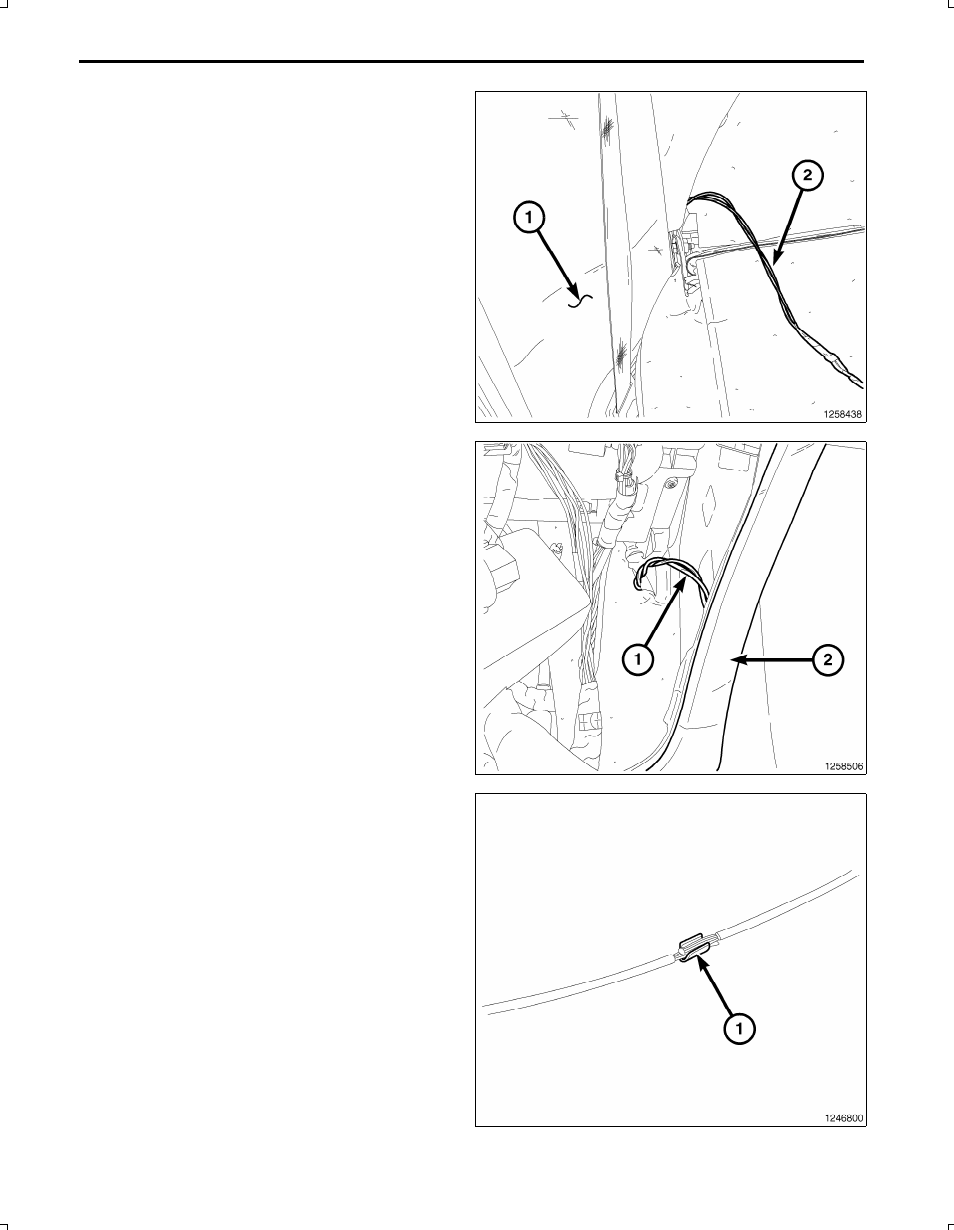

10. Route the Wi­Fi power harness (2) down passenger

side quarter trim panel (1).

11. Tuck the Wi­Fi power harness up under the passenger

side quarter trim panel (1).

12. Route the Wi­Fi power harness towards the cowl

panel, tucking up under the passenger side b­pillar
trim panel.

13. Route the Wi­Fi power harness (1) under carpet to the

front center console (2) and cut to length.

14. Locate the cigarette lighter outlet wiring harness.

15. Cut each wire and remove 13mm (0.5 in.) of insulation

from each wire that needs to be soldered/spliced.

16. Place a piece of supplied adhesive lined heat shrink

tubing on one side of each cut wire. Insure the tubing
will be long enough to cover and seal the entire sol­
dered area.

CAUTION: Do not use acid core solder.

17. Solder the supplied fused pigtail to Wi­Fi power har­

ness power wire.
