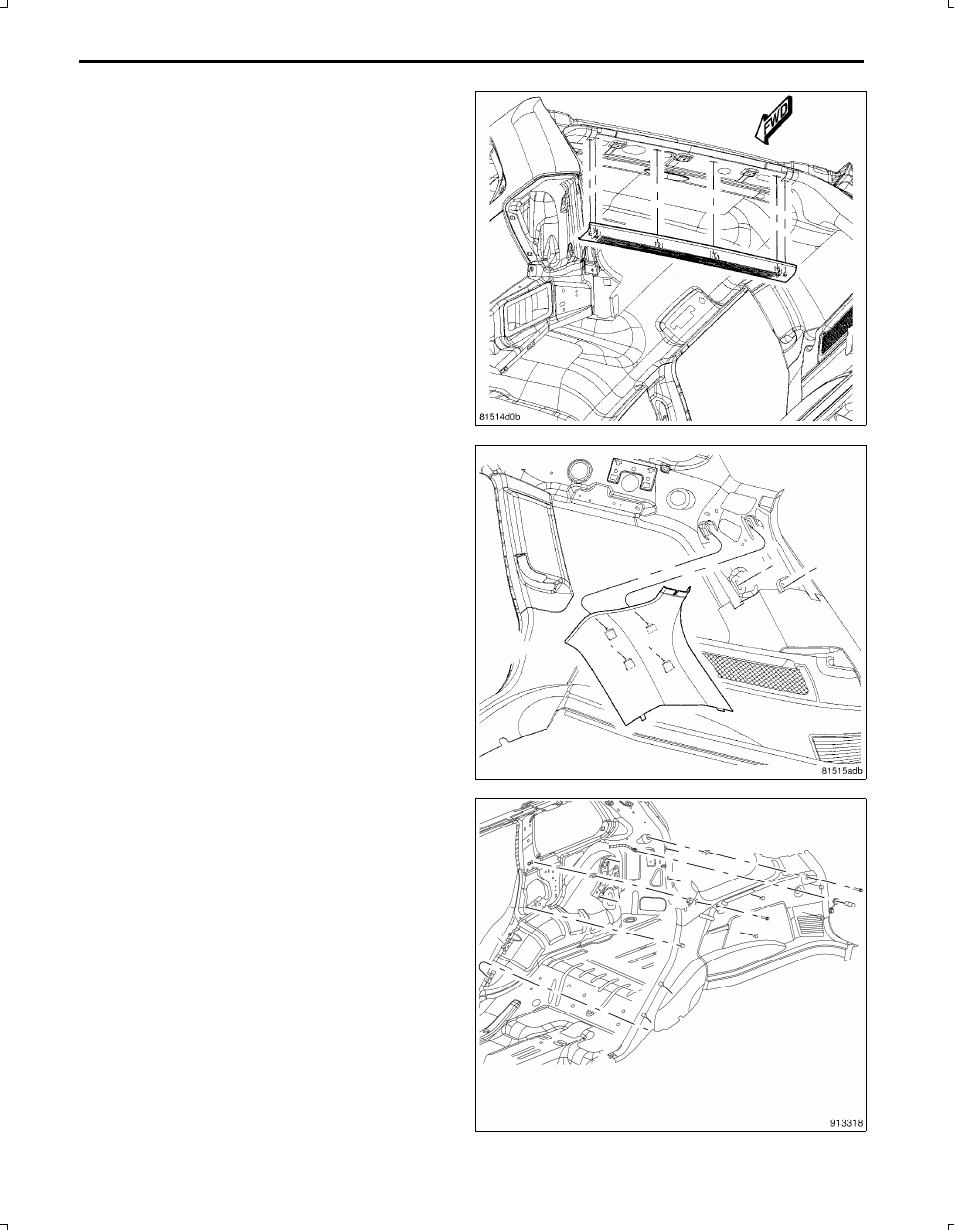

5. Remove the upper liftgate trim panel. Using trim
stick C­4755 or equivalent, disengage the retaining
tabs that secure the upper liftgate trim panel to the
retaining clips in the liftgate opening and remove the
trim panel.
6. Remove the D­pillar trim panel. Using trim stick
C­4755 or equivalent, disengage the retaining tabs
that secure the D­pillar trim panel to the retaining
clips in the D­pillar and remove the trim panel.
7. Remove the two nuts that secure the load floor to the
floor panel and remove the load floor.
8. Using trim stick C­4755 or equivalent, disengage the
retaining tabs that secure the quarter trim panel to the
quarter panel.
9. Pull the quarter trim panel away from the quarter
panel.
10. If equipped, disconnect the power outlet wire harness
connector.
11. Remove the quarter trim panel.
Oct 16, 2009 K6860899 Rev. 1
