18. Locate the cigarette lighter outlet wiring harness.
19. Cut each wire and remove 13 mm (0.5 in.) of insula
tion from each wire that needs to be soldered/spliced.
20. Place a piece of supplied adhesive lined heat shrink
tubing on one side of each cut wire. Insure the tubing
will be long enough to cover and seal the entire sol
dered area.
CAUTION: Do not use acid core solder.

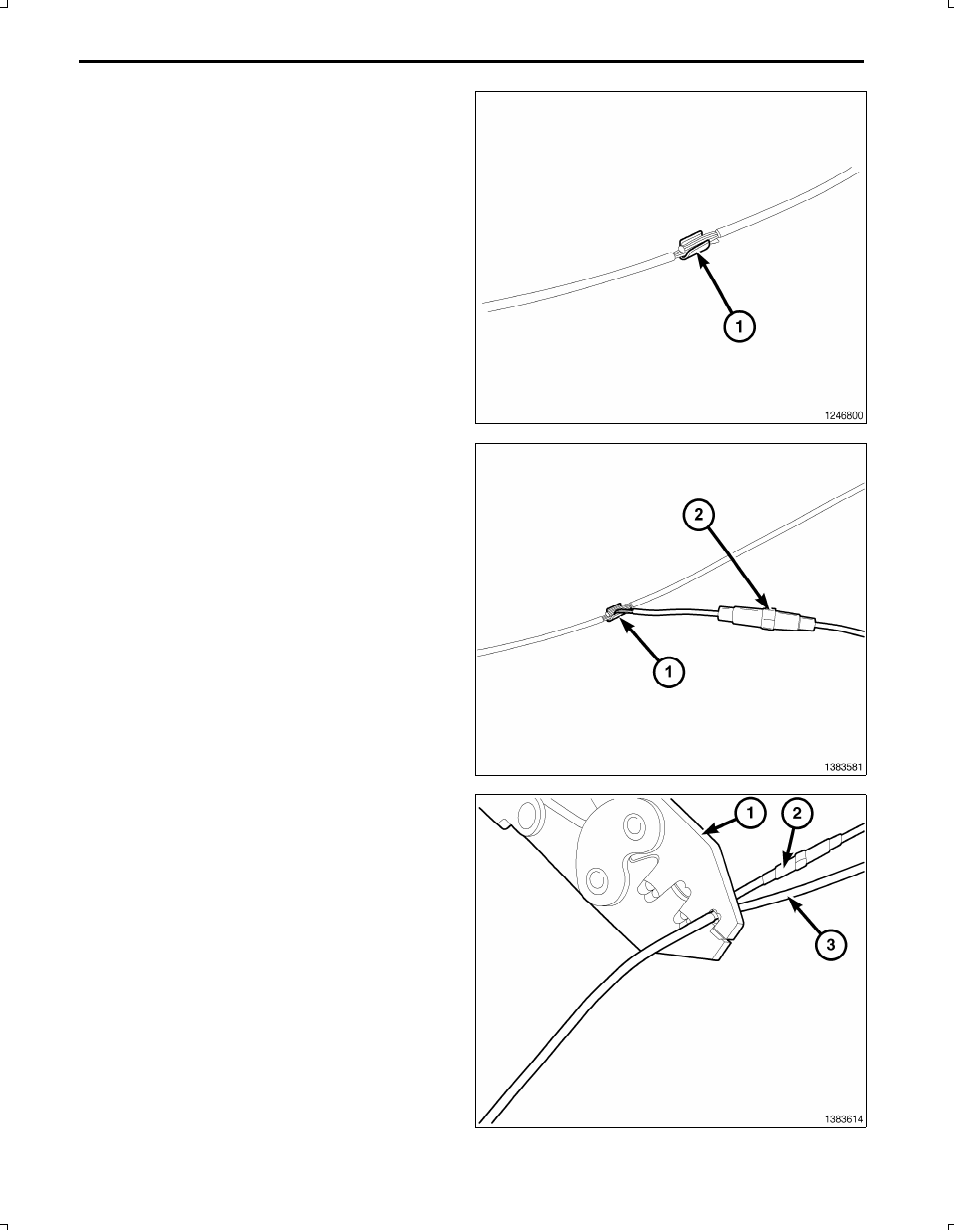

21. Solder the supplied fused pigtail to WiFi power har
ness power wire.
22. Place the strands of the power side wires overlapping
each other inside of the splice clip (1).
23. Using crimping tool (1), Mopar® p/n 05019912AA or
equivalent, crimp the splice clip and wires together.
24. Repeat the previous two steps for the ground side
wires.
