6

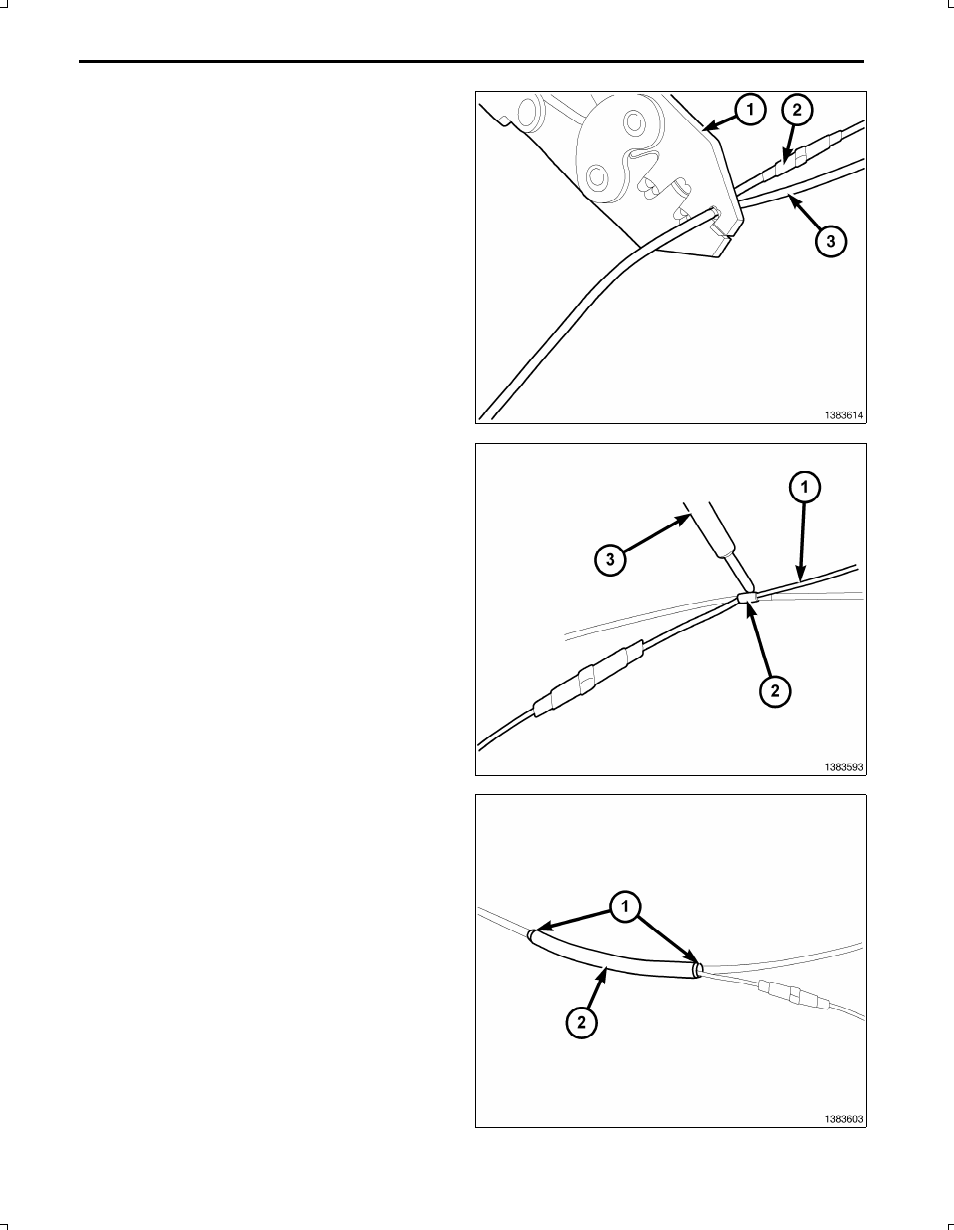

25. Using crimping tool (1), Mopar® p/n 05019912AA or
equivalent, crimp the splice clip and wires together.
26. Repeat the previous two steps for the ground side
wires.
27. Solder (3) the connection (2) together using rosin core
solder (1).
28. Center the heat shrink tubing (2) over the solder joint
and heat using a heat gun. Heat the joint until the tub
ing is tightly sealed and sealant (1) comes out of both
ends of the tubing.
