Mopar K6860899 - Manual (Page 25)

7
300/CHARGER

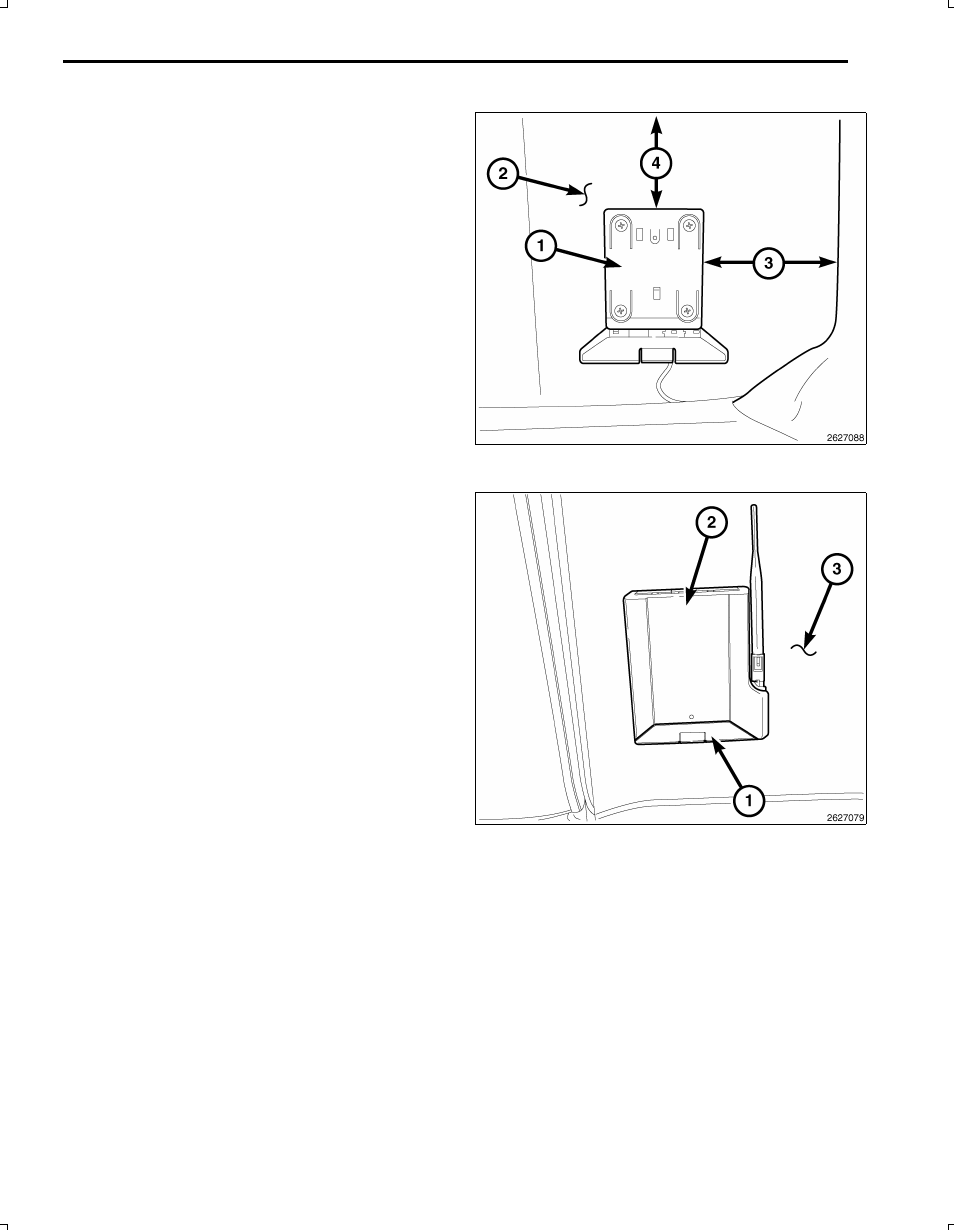

1. Secure the Wi­Fi Router bracket (1) with the supplied
fasteners on the back of the second row seats (2).
2. Measure 133 mm (5.25 in.) (4) from the bottom of the
upper support brace to the top of the Wi­Fi Router cra­
dle.
3. Measure 152 mm (6 in.) (3) from the right edge of the
Wi­Fi Router cradle (1) of the seat back support.
ALL VEHICLES
NOTE: Challenger shown, 300/Charger similar.
1. Install the WiFi Router (2) into the mounted WiFi
Router cradle (1).
2. Route and secure the twisted pair wire harness from
the PDC to the Wi­Fi Router along the passenger side
trunk.
3. Connect the twisted pair wire harness to the router.
4. Verify system operation.
Feb 12, 2010 K6860899 Rev. 2
