8

WITHOUT FULL CENTER CONSOLE

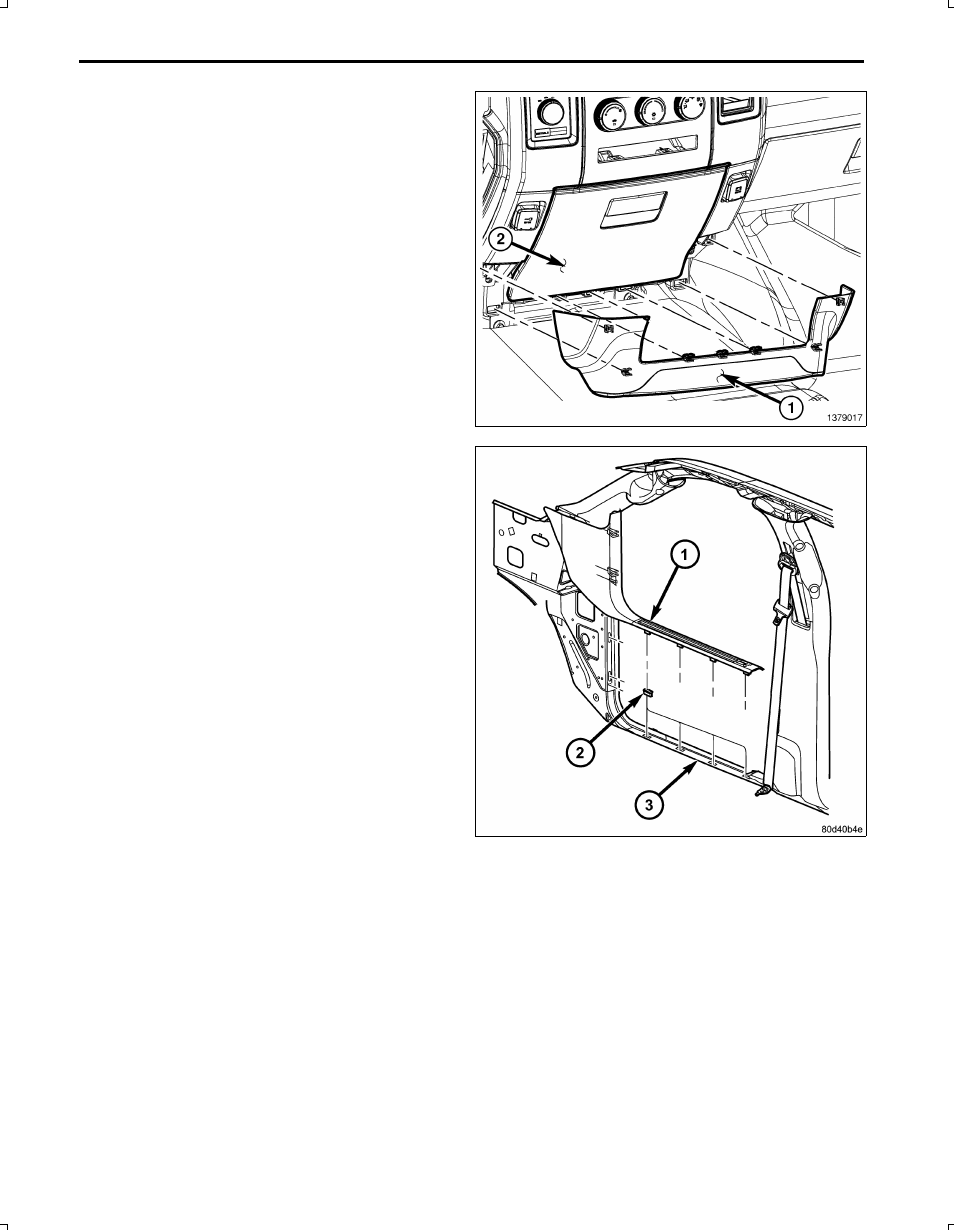

41. Install the lower IP surround to the vehicle.

42. Connect the power outlet electrical connectors and in­

stall the power outlet trim panel.

43. Close the close out panel by depressing the tab at the

top of the panel.

44. Install the two screws behind the close out and install

the cup holder (2).

45. Install the two lower screws securing the cup holder to

the IP.

46. Install the lower bezel panel (1).

ALL

47. Position the cowl trim panel (1) onto the door sill (3).

48. Push the cowl trim panel forward and then engage the

retaining tabs that secure the sill trim panel to the rear
door sill.

Oct 16, 2009

K6860899 Rev. 1
