2) Attach the top rear support pipe (6) using hardware as shown in Detail E. Position top support

pipe so it is centered on bleacher and equal distance from each edge or end back supports.

3) Slide lower rear support pipe (6), (pipe with holes) through the bottom brackets of each back

support (1). Line up holes in bracket and install hardware as shown in Detail E (if holes do not
line up, new holes will need to be drilled, use 7/16” drill bit).

f) Assemble Rear Corner Pipe:

1) Assemble the rear corner support pipes as shown. Slide the corresponding pipe clamps and

fittings onto the corner support pipe (5), 67” long. Pay special attention to the orientation of
the pipe clamps (15). Temporarily secure the fittings in place by lightly tightening the
setscrews. Mirror the assembly for the other side of the enclosure.

Upper Rear Rail Pipe without holes (6)

Lower Rear Rail Pipe with holes (6)

ITEM 12

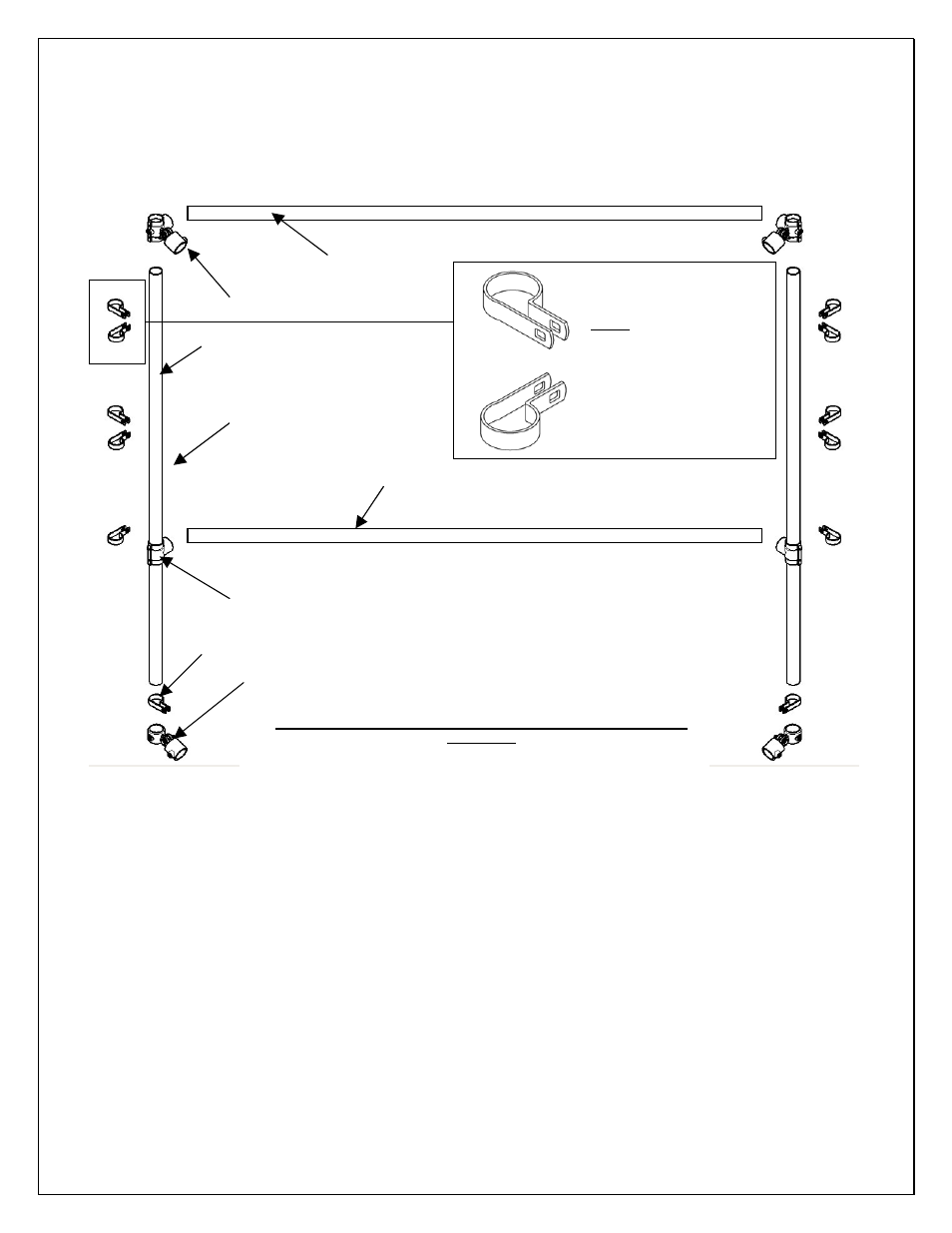

DETAIL F - VIEW OF REAR FRAME LOOKING FROM THE FRONT OF

BLEACHER

Corner Support pipe (5)

Pipe clamp (15)

ITEM 13

ITEM 11

NOTE:
Pipe clamps (15) are to be slid
onto corner support pipe (5) as
shown. Orientation of clamps
is critical.

FIVE COUNT OF PIPE
CLAMPS (15)
IS BETWEEN ITEM 11
AND ITEM 12
