b) Install Guardrail Back Supports:

1) Remove all hardware anchoring the top seat plank (fifth row), if not already done. Insert

mounting flange for guardrail back support (1) between seat plank and frame. Reinstall
anchoring hardware as shown in Detail B - tighten only finger tight.

2) Install the hardware securing the vertical mounting flange of the guardrail back support (1)

to the frame as shown in Detail B. Drill a 3/8” hole in the vertical frame member if needed.

3) Install remaining guardrail back supports (1) repeating steps 1 and 2.
4) Now tighten all hardware securing the guardrail back supports to the frame.
5) Insert the top cap (19) in the top of each back support (1).
6) Insert plastic plugs (21) to plug the unused holes in the back support (1) – see Detail B.

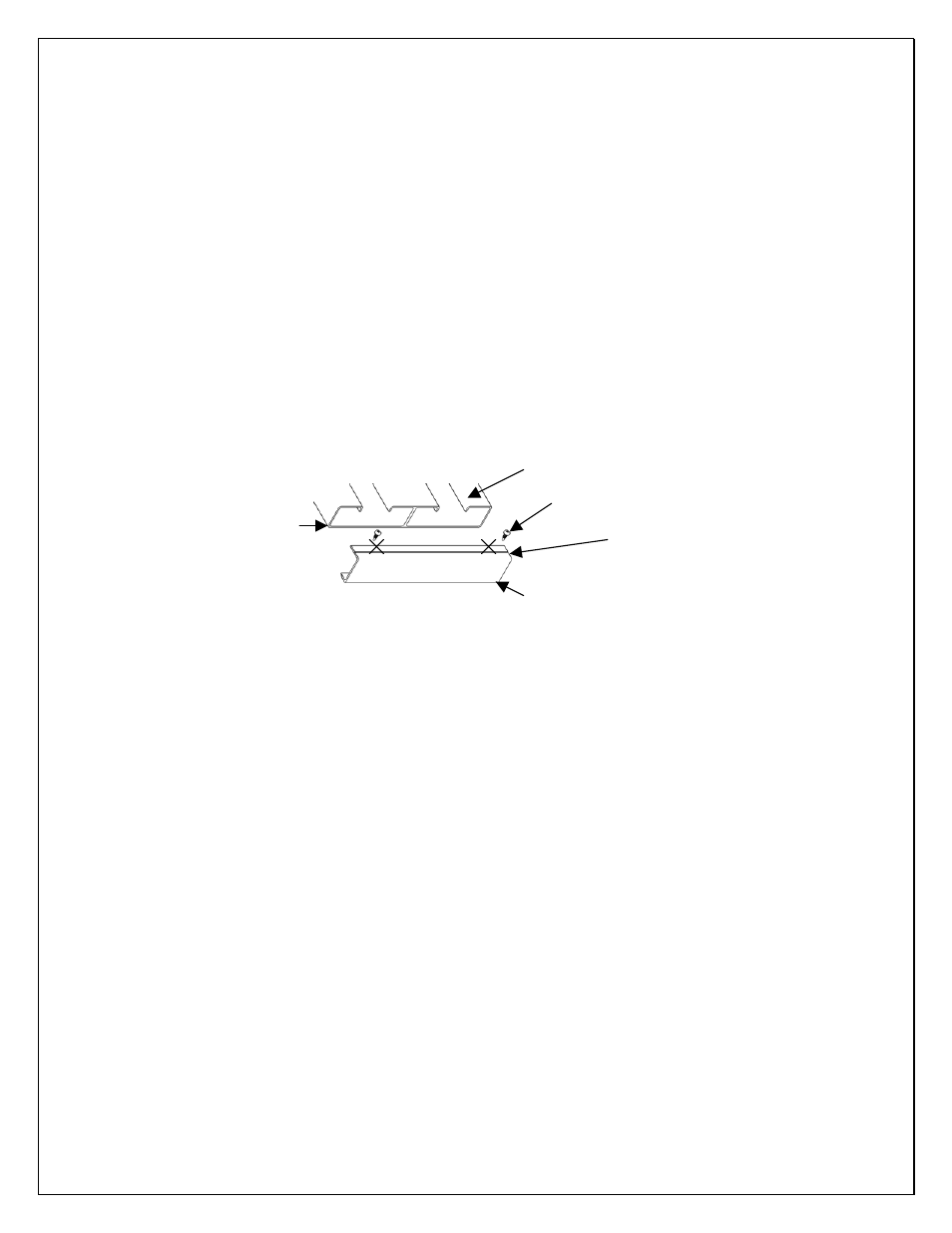

DETAIL C

c) Install Plank End Caps:

1) Using a rubber mallet, install the end caps (28) over each end of the new planks (9). Secure

the end caps in place using the self-threading pan head Philip screws (29). - See Detail C

BOTTOM OF PLANK

LOCATE SCREWS
ALONG GROOVE IN
BOTTOM OF END CAP.

End Cap (28)

ITEM 9

#8 x ½” Self Drilling Screw (29)
