Jaypro Sports BLCH5CUE21 User Manual
Page 6
© 2005 Jaypro Sports Equipment JSL-Inst034 Rev D 04-26-2010
6 of 14

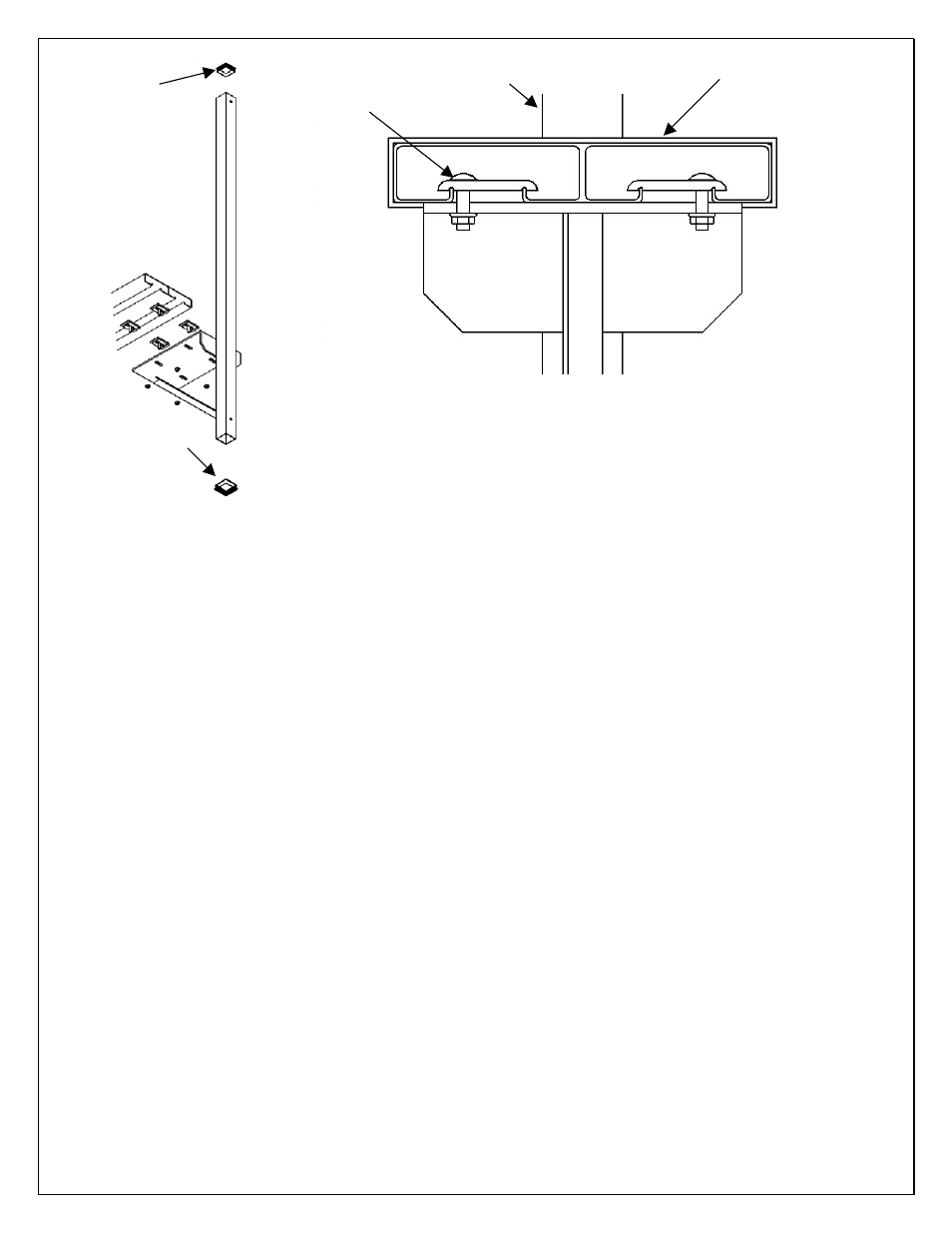

DETAIL D
d) Install Guardrail Side Supports:
1) Attach one guardrail side support (2) to the underside of the third seat plank, using the
hardware shown in Detail D. Leave hardware finger tight to allow for future adjustment.
2) Install plastic cap (19) in the top and bottom of the vertical support.
3) Repeat step 1 for the other side of bleacher.
- Slotted bolt clip (16)
- 5/16” x 1-1/4” Carriage
bolt (18)
-5/16” Flange nut (26)
EXISTING THIRD
ROW SEAT PLANK
Guardrail
Side
Support (2)
Tube Cap (19)
Tube Cap (19)
