in the hinge as needed to assemble. Tighten the setscrews securing the fittings to the pipes.

3) Repeat step for the other side.

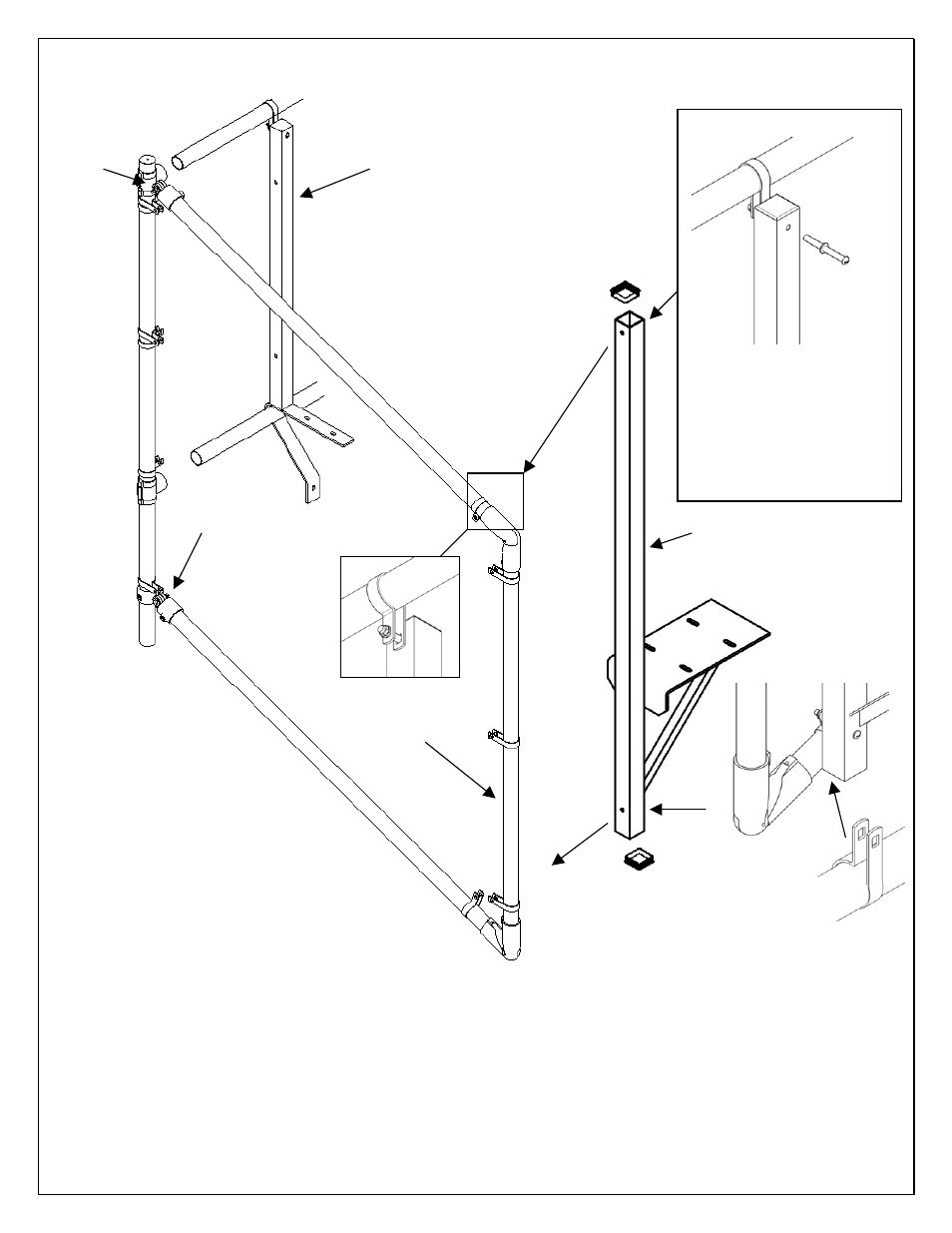

DETAIL I

h) Install the Side Frames:

1) Insert the top and bottom pipes of the side frame into the hinge fittings (11, 13) attached to

the corner assembly.

2) Attach both clamps that are on the top and bottom pipes of the side frame to the guardrail

side support (2) using hardware as shown in Detail I.

3) Tighten all hardware and setscrews.
4) Repeat steps for the other side.

ITEM 11

SEE DETAIL H

ATTACH TOP AND BOTTOM
SIDE PIPES (3) TO THE SIDE
SUPPORT (2) USING
- 5/16” X 3” Pan hd screw (25)
- 5/16” Washer (27)
- 5/16” Flange nut (26).
MIRROR ASSEMBLY FOR THE
OTHER SIDE OF THE
ENCLOSURE.

ITEM 13

SEE STEP b AND e

SEE STEP d
