© 2005 Jaypro Sports Equipment JSL-Inst034 Rev D 04-26-2010 7 of 14

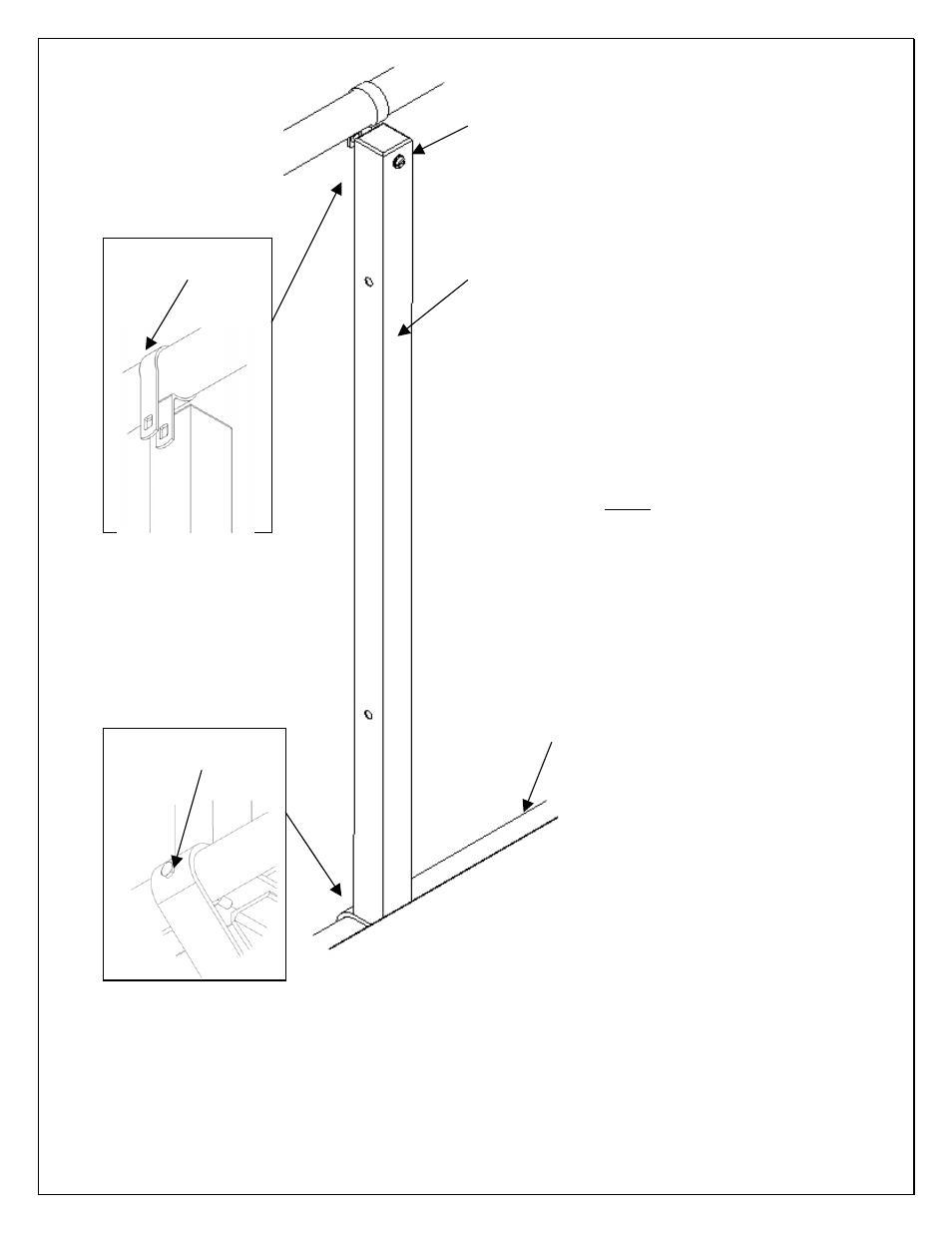

e) Install Rear Support Pipes:
1) Slide 3 or 4 pipe clamps (15) onto the top rear support pipe (6), (pipe without holes). Pay
special attention to the orientation of the pipe clamps with respect to the tabs. The bottom pipe
will have the tabs pointing up and the top pipe will have the tabs pointing down. In all cases,
the tangent side will be towards the support. (see detail above)
ITEM 6
NOTES:
1. SLIDE THE CORRESPONDING NUMBER OF
PIPE CLAMPS (15) (3 OR 4) ONTO THE TOP
REAR SUPPORT PIPE (6) (PIPE W/O HOLES).
2. NOTE THE ORIENTATION OF THE CLAMPS,
WITH THE TABS POINTING DOWNWARDS
AND THE TANGENT SIDE TOWARDS THE
BACK OF THE BLEACHER.
ITEM 15 & ITEM 6
Guardrail Back Support (1)
-5/16” x 3” Pan head screw (25)
-5/16” Washer (27)
-5/16” Flange nut (26)
- 3/8” x 3” Hex Hd Screw (31)
- 3/8” Flange nut (32)
DETAIL E
