© 2005 Jaypro Sports Equipment JSL-Inst034 Rev D 04-26-2010 4 of 14

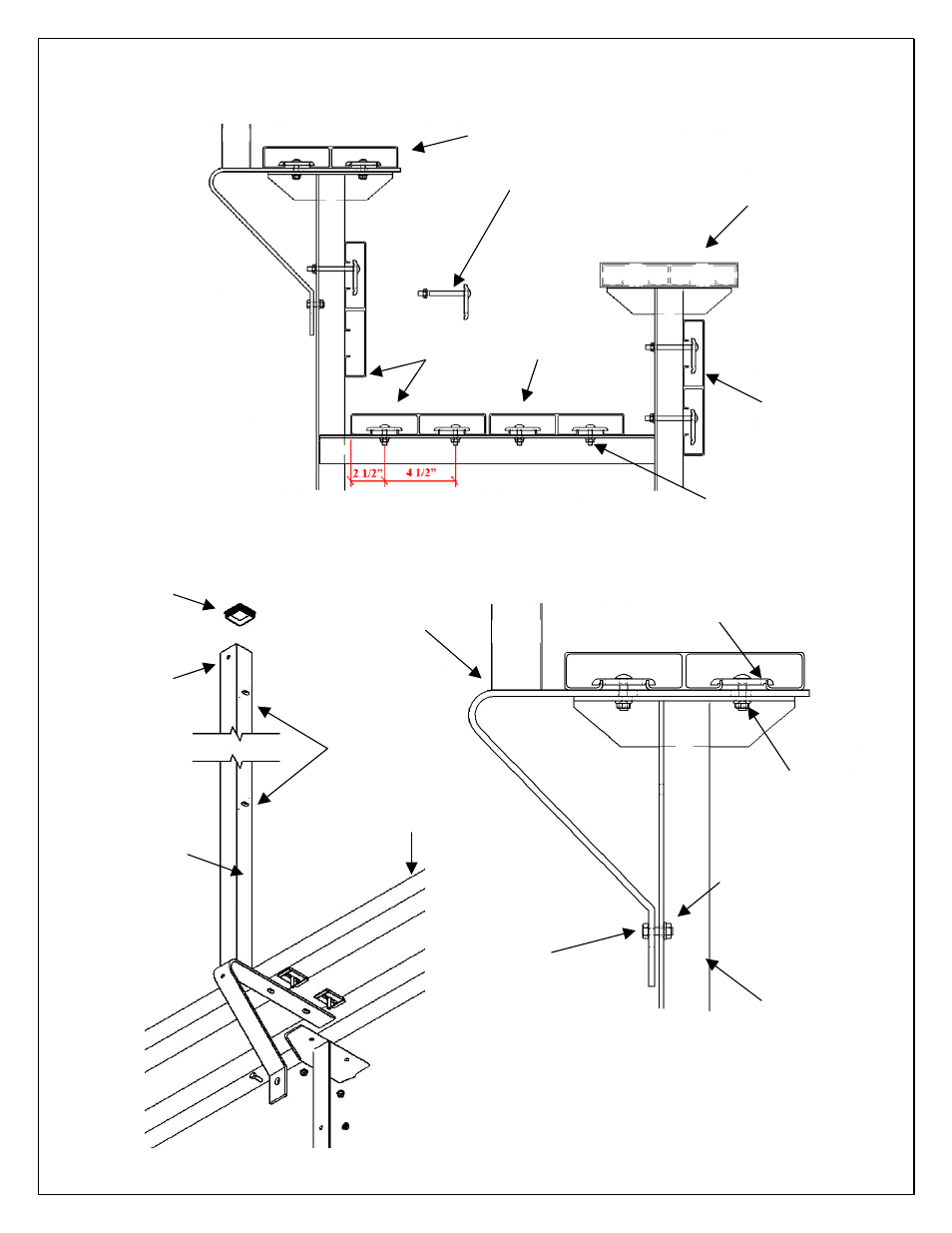

DETAIL A
DETAIL B
REATTACH EXISTING PLANK
-5/16” x 1-1/4” Carriage bolt (18)
-5/16” Flange nut (26)
-5/16” x 1-1/2” Carriage bolt (22)
-5/16” Flange nut (26)
Slotted bolt clip (16) Guardrail Back
Support (1)
EXISTING LEG FRAME
Tube Cap (19)
-1/2” Hole plug (21)
BOTH SIDES
Guardrail Back
Support (1)
DO NOT PLUG HOLE
FIFTH SEAT PLANK
FOURTH SEAT PLANK
ITEM 9
ANCHOR CONSIST OF:
- Slotted bolt clip (16)
- 5/16” x 3” Carriage bolt (24)
- 5/16” Flange nut (26)
ANCHOR CONSIST OF:
- Slotted bolt clip (16)
- 5/16” x 1-1/4” Carriage bolt (18)
- 5/16” Flange nut (26)
ITEM 9
EXISTING
FIFTH FOOT
PLANK
