41
Select Digital zoom +. The On-Screen Menu disappears
and D . zoom + appears. Press the OK button to expand the
image size. Use the Point  buttons to pan the image.
The Panning function can work only when the image is
larger than the screen size.
A projected image can be also expanded by pressing the
D.ZOOM
+ or the OK button on the remote controller.
To exit the Digital zoom +/– mode, press any button except
the D.ZOOM +/– and the OK buttons.
Select Digital zoom -. The On-Screen Menu disappears and
D . zoom - appears. Press the OK button to compress image
size.
The projected image can be also compressed by pressing
the D.ZOOM – or the OK button on the remote controller.
To return to the previous screen size, select a screen size
from the Screen Size Adjustment Menu or select an input
source from the Input Source Selection Menu (See pages
32-33) again, or adjust the screen size with the D.ZOOM
+/– buttons.
Note:
• The panning function may not operate
properly if the stored Mode in the PC adjust
Menu is used (p.37).
• The minimum compression ratio is limited
depending on the input signal, when the
Keystone function is working or when
Custom is selected for the screen size.
• True and Digital zoom +/- can not be
selected when 480i, 575i, 480p, or 575p is
selected in the PC System Menu (p.34).
• Digital zoom +/- can not be selected when
True is selected in the Screen menu. (p.40)
3D
Remote Controller
D .ZOOM + button
POINT buttons
OK button
D .ZOOM – button

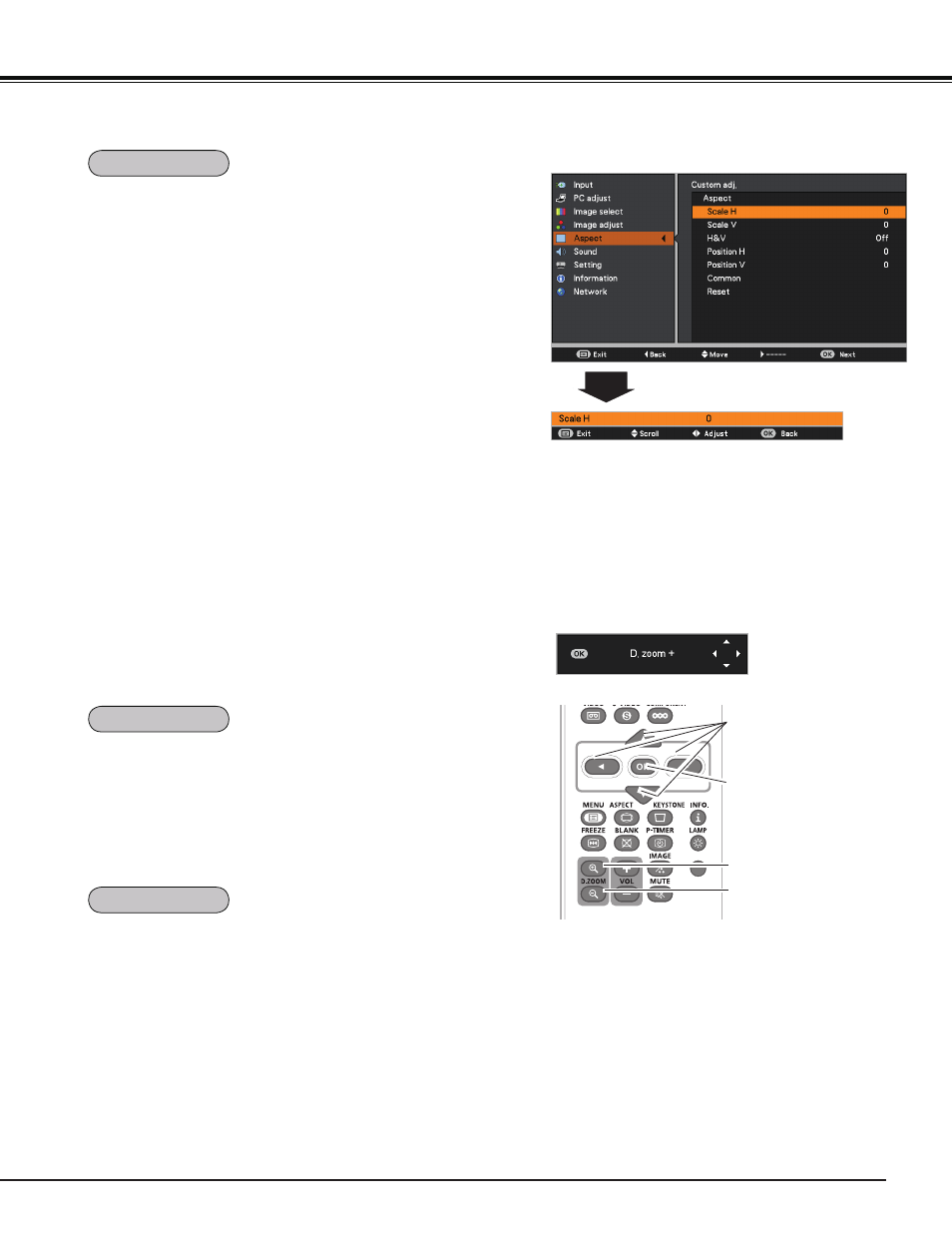

Adjust the screen scale and position manually with this
function.
Press the Point  button at Custom adj . and the Custom
adjustment menu is displayed on the screen, you can use
the Point  buttons to choose the item you want to adjust.
Scale H/V .......... Adjust the Horizontal/Vertical screen
scale.
H&V ................... When set to On, the aspect ratio is fixed.
Scale V appears dimmed and becomes
unavailable. Adjust Scale H, then the
screen scale is automatically modified
based on the aspect ratio.
Position H/V ..... Adjust the Horizontal/Vertical screen
position.
Common ........... Save the adjusted scale or position to
all the inputs. Press the OK button at
Common to display a confirmation box.
To save the scale or position, press the
OK button at "Yes". When Custom is
selected, the saved scale or position is
used.
Reset ................. Reset the all adjusted values. Press
the OK button at Reset to display a
confirmation box. To reset, press the OK
button at "Yes".
Note:
• When no signal is detected, Normal is set
automatically and Custom adj. cannot
be selected and the Aspect dialog box
disappears.
• The adjustable range for Scale H/V and
Position H/V is limited depending on the
input signal.
Custom adj . Menu
Custom adj .
Computer Input
Digital zoom +
Digital zoom –
D .ZOOM +/–
