1-8
Cisco 7200 VXR Installation and Configuration Guide
OL-5013-09
Chapter 1 Cisco 7200 VXR Product Overview
Cisco 7206VXR Overview
With the NPE-G1 or NPE-G2 installed and the Port Adapter Jacket Card installed in the I/O controller
slot, an additional port adapter slot is available.
Note
If you have difficulty installing a processing engine or I/O controller in the lowest slot of a
Cisco 7200 VXR router that is rack-mounted, remove the port adapters, processing engine and I/O
controller from the chassis and reinstall them. Install the processing engine and I/O controller in the
lowest slots first, then populate the slots above them, in a bottom-to-top order.

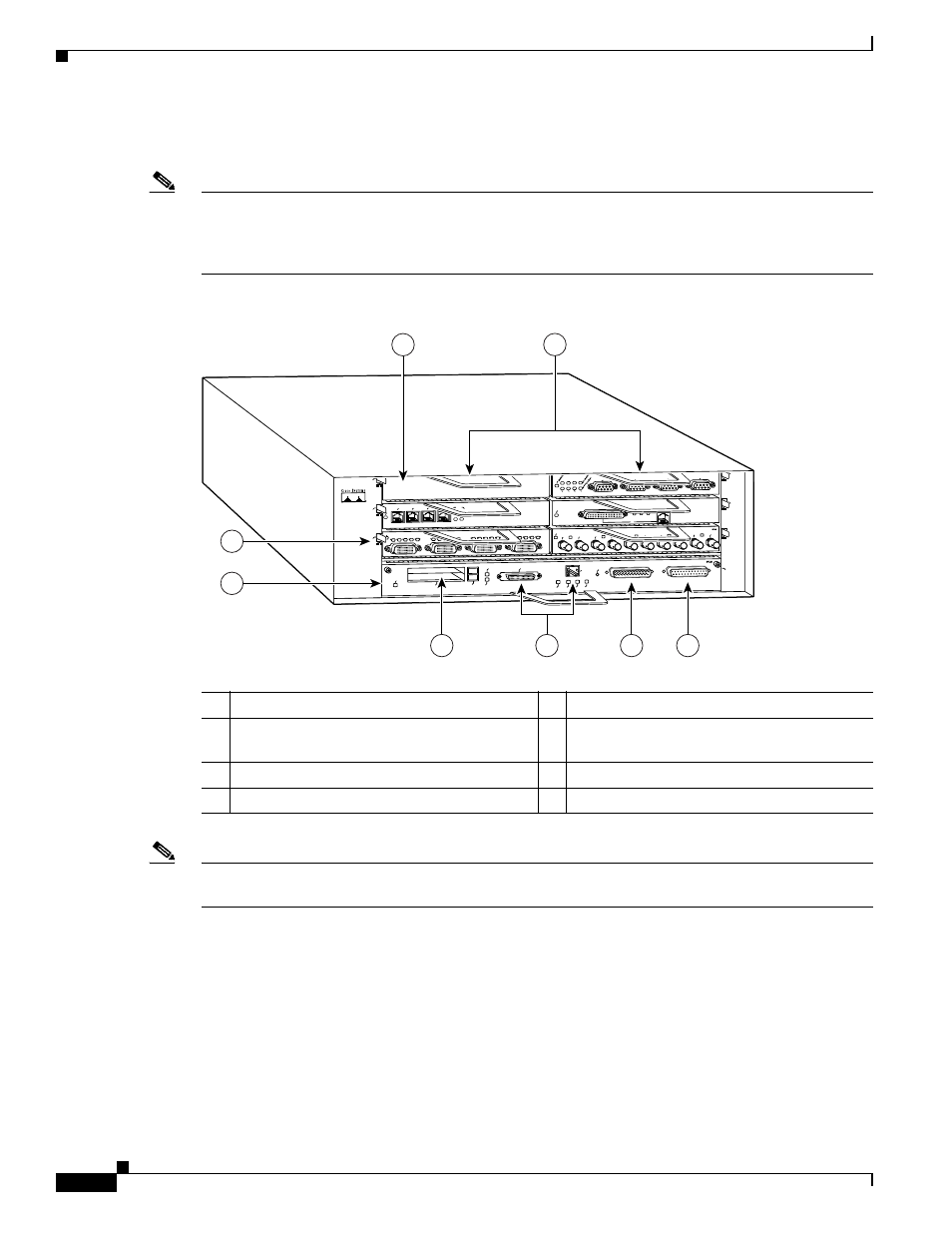

Figure 1-3
Cisco 7206VXR Router—Front View
Note
In
, a blank port adapter is installed in slot 5. To ensure adequate airflow across the port
adapters, each port adapter slot must be filled with either a port adapter or a blank port adapter.
1
Blank port adapter
5
PC Card slots
2
Port adapters
6
Optional Fast Ethernet interface (MII port and
RJ-45 port)
3
Port adapter lever
7
Auxiliary port
4
I/O controller
8
Console port
