1-37
Cisco 7200 VXR Installation and Configuration Guide
OL-5013-09
Chapter 1 Cisco 7200 VXR Product Overview
Field-Replaceable Units
Note In n Figure 1-20 , the NVRAM is replaced by an SRAM component (U14) that is made to act like the
NVRAM by the addition of some external components, one of which is the button-type lithium battery
labeled “Battery for SRAM.”

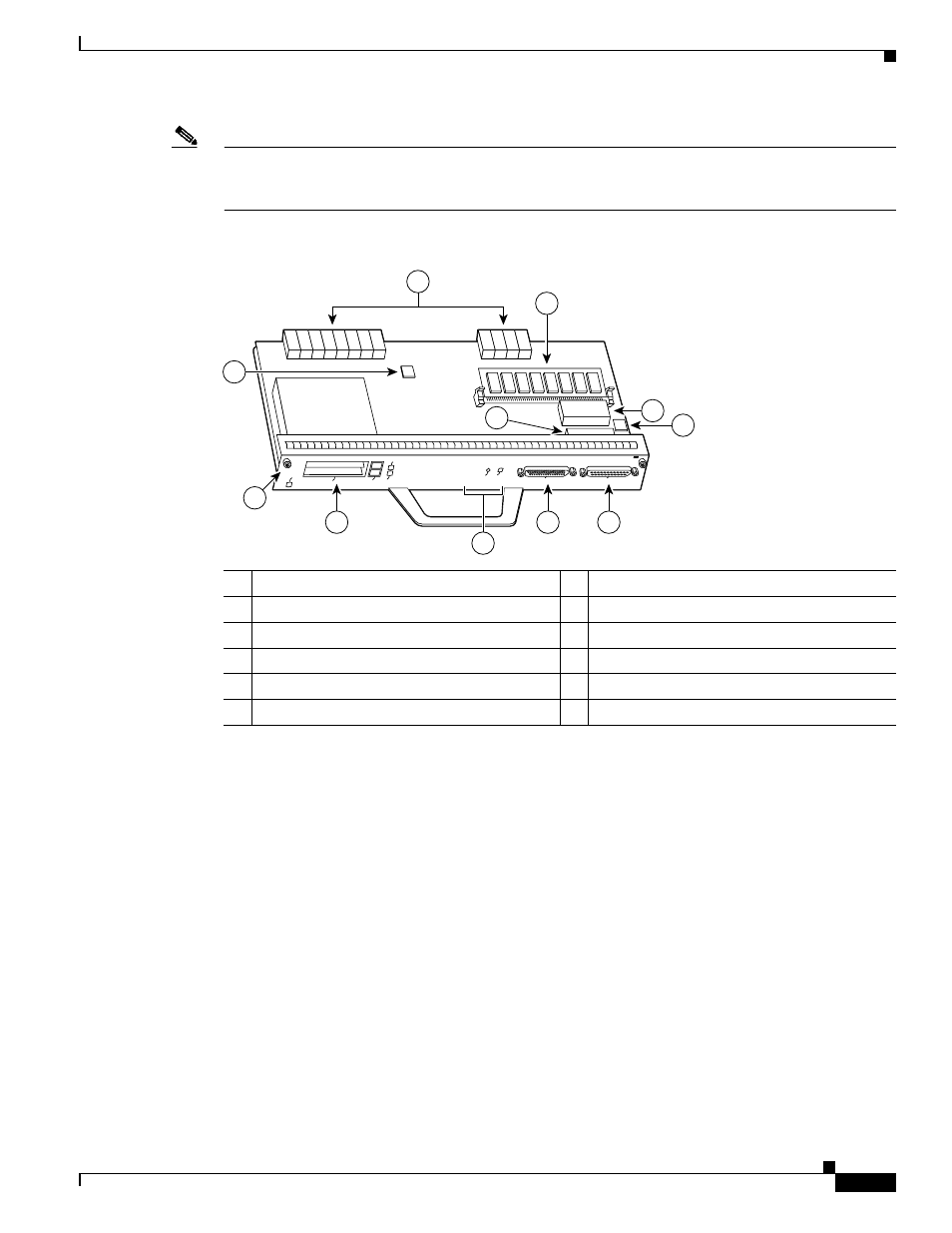

Figure 1-19 C7200-I/O—Without Fast Ethernet Port (Version 1)
1 Temperature sensor 7 Captive installation screw
2 Midplane connectors 8 PC Card slots
3 Flash SIMM (U99) 9 LED and CPU reset button
4 Boot ROM (U20) 10 Auxiliary port
5 NVRAM (U41) 11 Console port
6 Temperature sensor
93277 C P U R ES ET
IO PW R O K
A U X
C O N S O LE
P C M C IA E JE C T
S LOT
0
S LO T 1 FAST ETHERNET INPUT/OUTPUT CONTROLLER
E N A B LE D
8
7
11 10
1
4
3
5
6
2
9
