Chapter 1 Cisco 7200 VXR Product Overview
Field-Replaceable Units

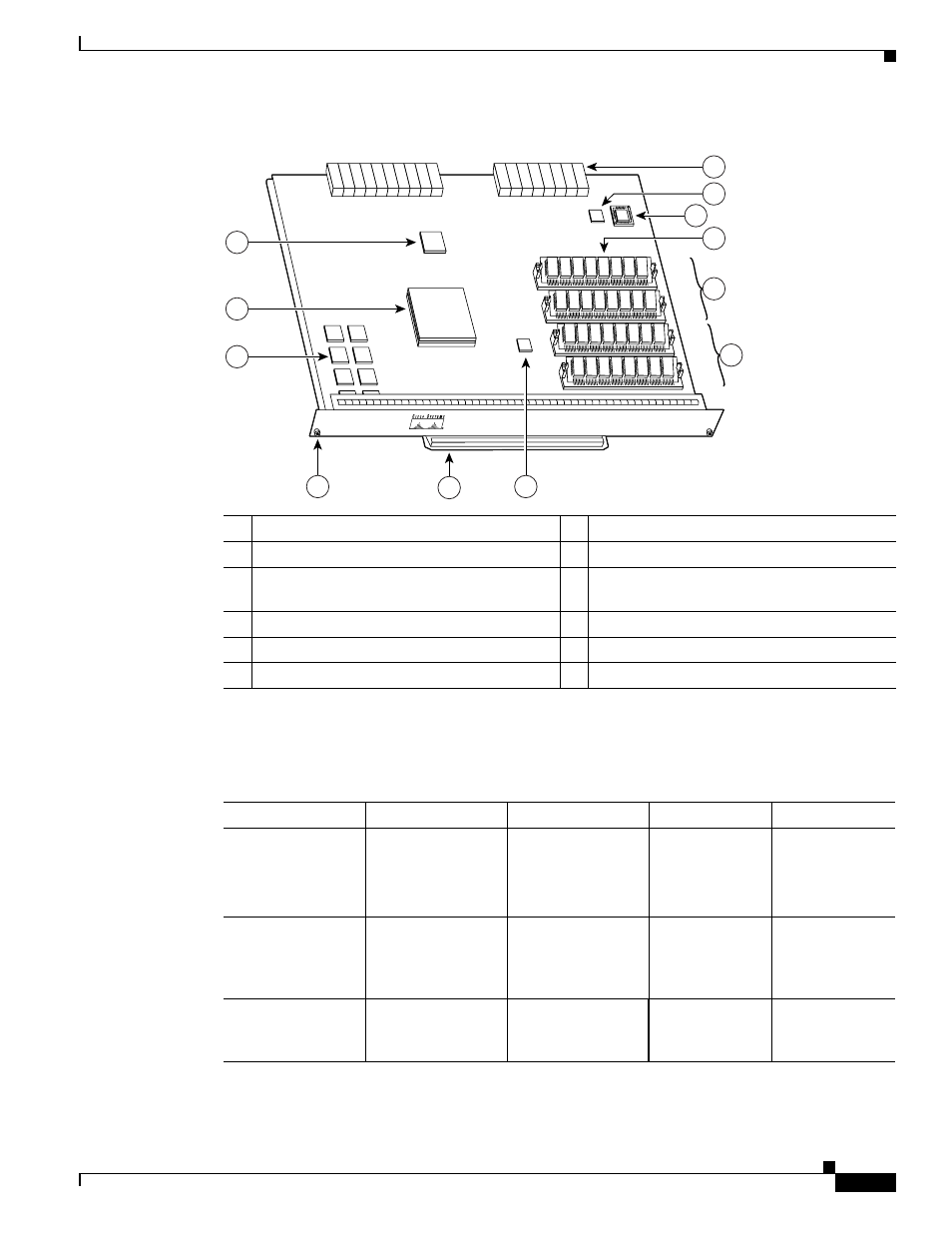

Figure 1-11 NPE-200
Table 1-14 lists the NPE-200 memory specifications, and Table 1-15 lists factory-installed DRAM
configurations and their product numbers.
1 System controller 7 Midplane connectors
2 R5000 microprocessor 8 Temperature sensor
3 4-MB SRAM (U6, U10, U13, U14, U28, U29,
U38, and U39) 9 Boot ROM (U92)
4 Captive installation screw 10 DRAM SIMMs
5 Handle 11 Bank 1
6 Temperature sensor 12 Bank 2
66420
U52
U42
U25
U11
NETWORK PROCESSING ENGINE-200
7
11
10
8
12
4 6 5
3
2
1
9
Table 1-14 NPE-200 Memory Specifications
Memory Type Size Quantity Description Location 1
DRAM 32 to 128 MB 2 to 4 16- or 32-MB
SIMMs (based
on maximum
DRAM required) Bank 0: U11 and
U25
Bank 1: U42 and
U52
SRAM 4 MB 8 8 chips, each
being 512K
words x 8 bits
wide U6, U10, U13,
U14, U28, U29,
U38, and U39
Boot ROM 2 256 KB 1 EPROM for the
ROM monitor
program U92
