ET f^flTTOR
INPUT
D I
r*-il
(i)
m
m
SWITCHED
200W MAX
220V SO eOHz
OFF 1 ON
SURROUND
SOUND

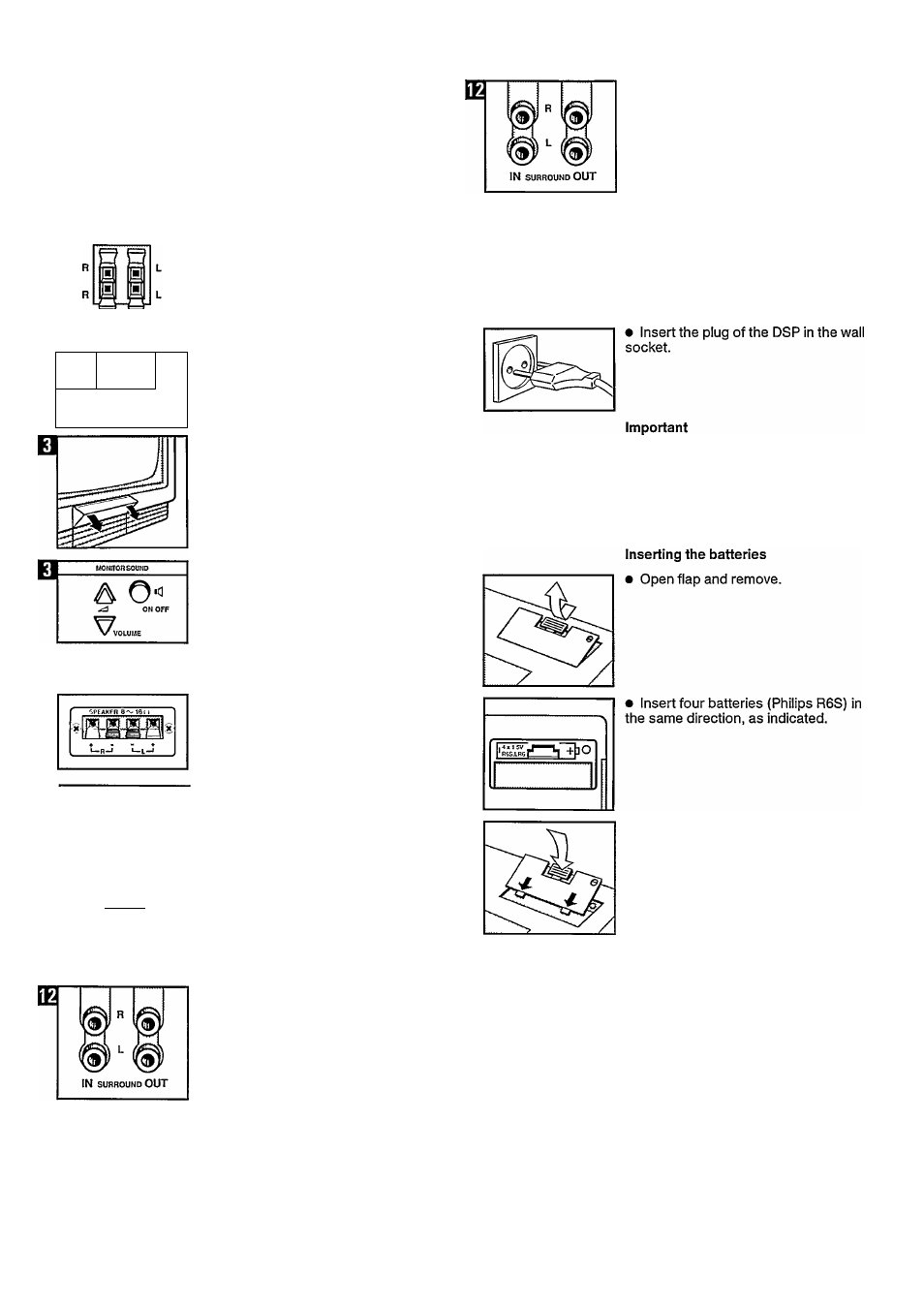

PIP (Picture In Picture)
• Connect the Cinch cable to the
(yellow) PIP output of the A/V tuner
amplifier and the PIP input of the
monitor.
• Connect the (8 Cl) loudspeakers to
the R (RIGHT) and L (LEFT) outputs on
the A/V tuner amplifier and PIP input of
the monitor.
If no Matchline Dolby Surround
Processor has been connected, the
‘SURROUND SOUND’ switch on the
A/V tuner amplifier should be in
position OFF.
Switching off built-in monitor
loudspeakers (with switched on
monitor)
• Open control panel by pressing the
top right-hand corner.
Press the IC] ON/OFF button.
Matchline Dolby Surround Processor
(DSP) 22AV1997 (if present)
• Connect two additional (8 Cl)
loudspeakers to the ‘speaker’ output of
the DSP.
• Insert the plug of the A/V tuner
amplifier in the ‘AC outlet’ of the DSP.
• Now the POWER button on the DSP
simultaneously switches the DSP and
the A/V tuner amplifier ON or OFF.
• Connect the Cinch‘SURROUND
OUT’ terminal on the A/V tuner
amplifier with the Cinch ‘LINE IN’
terminal on the DSP.
• Connect the Cinch ‘SURROUND IN’
terminal on the A/V tuner amplifier with
the Cinch ‘LINE OUT’ terminal on the
DSP.
• Set the‘SURROUND SOUND’switch
on the A/V tuner amplifier to ON. If this
switch is in the ON position, the volume
control, volume indication, balance
control and balance indication of the
A/V tuner are switched off.
These functions and indications are
then taken over by the DSP.
The loudness and spatial stereo circuit
and the corresponding indications are
also switched off when the
‘SURROUND SOUND’ switch of the
A/V tuner amplifier is in the ON
position. These functions and
indications are also taken over by the
DSP.
For further information about the
operating principle of the DSP and the
A/V tuner amplifier, see the operating
instructions of the DSP.
Remote control
• Replace flap.
