other connection

facilities

1(3>

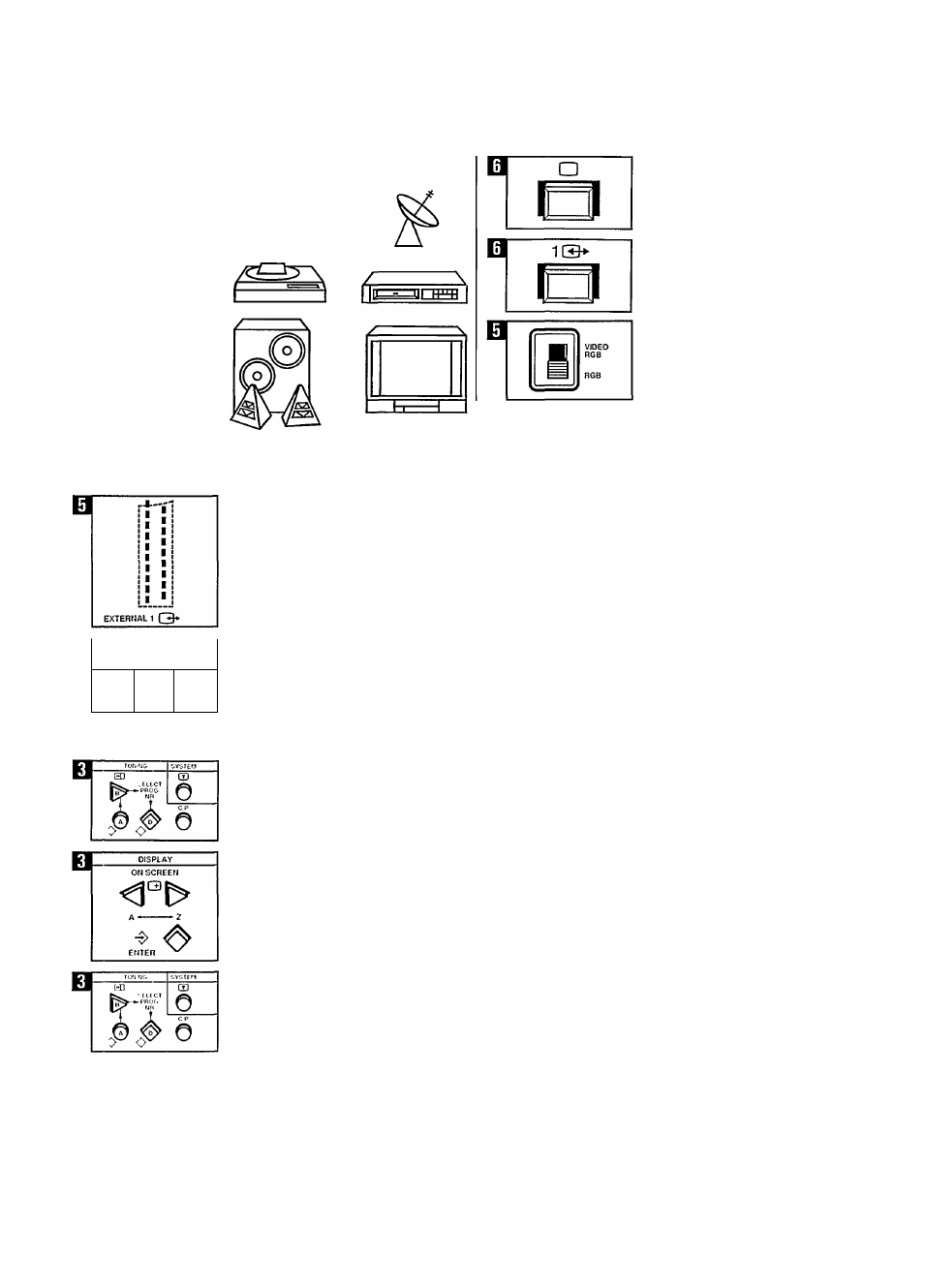

Euroconnector

EXTERNAL 1 (10) for connecting
peripheral equipment.

The Euroconnector is a multi-functional
connection socket for both Audio and
Video equipment (including RGB).

Before this equipment is switched on,

the TV must be switched to the EXT 1

mode.

• Press button 1Q*-. Indicator EXT 1
appears ± 3 sec. on the ieft of the
screen.

Note: If required the source name can
be programmed via OSD:

• Press button A (^).

• Press button (CD) <1 or t> until the

required letter or digit is found.

• Press button ENTER
Select the following letter or digit etc.
Repeat the operations until the source
name is stored (max. 5 positions).

• Press button D (^).

R L

VARIABLE

*■ LEVEL

Switching to the External mode may
be:

a. automatic,
if the unit connected supplies the
switchover signals for this.

Note: If required, you can cancel the
automatic switchover.

• Press button a.

b. non-automatic,
if the unit connected does not supply
switchover signals, button 1C3* on the
remote control must be pressed.

Importanti
If a unit connected to the
Euroconnector supplies RGB signals

without switchover signals, switch
VIDEO RGB/RGB should be set to the

RGB position.

If in doubt, consult the Operating
Instructions for the connected unit.

Variable output level

Connection for Audio equipment

This output can be linked with the

auxiliary (AUX) input of your audio unit
so that you can play back the sound via

your sound equipment.

The sound adjustments can also be
made with the remote control.
