26 TruVision 12/32 Series IP Camera Configuration Manual

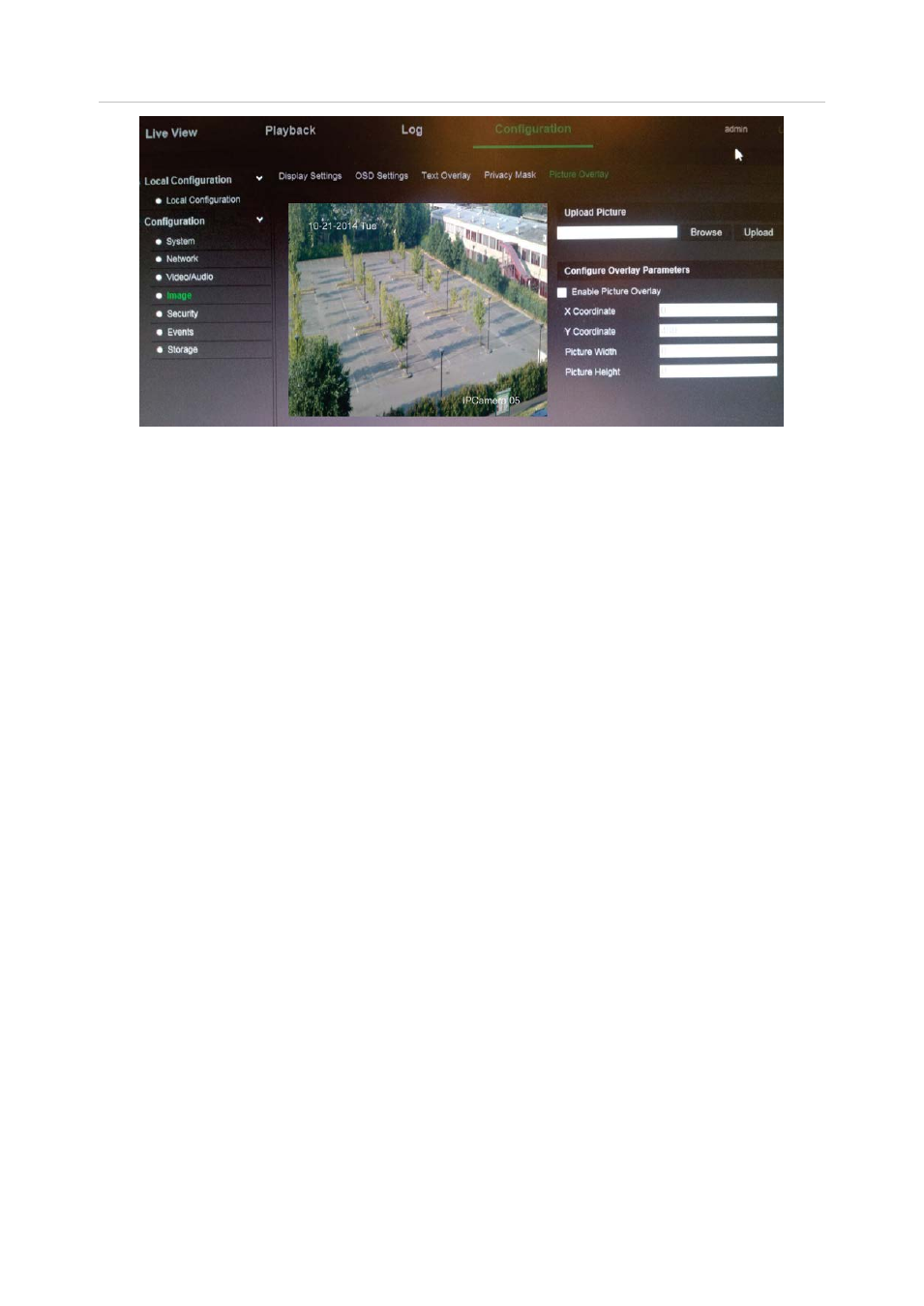

Figure 9: Camera image settings menu
To add a picture:
1. From the menu toolbar, click Configuration > Image > Picture Overlay .
2. Click Browse to select a picture and Upload to upload it.
3. Check Enable Picture Overlay checkbox to enable the function.
Note: X Coordinate and Y coordinate values are for the location of the picture on
the image. And the Picture width and height shows the size of the picture.
Motion detection alarms
You can define motion detection alarms. A motion detection alarm refers to an alarm
triggered when the camera detects motion. However, the motion alarm is only triggered
if it occurs during a programmed time schedule.
Select the level of sensitivity to motion as well as the target size so that only objects
that could be of interest can trigger a motion recording. For example, the motion
recording is triggered by the movement of a person but not that of a cat.
You can define the area on screen where the motion is detected, the level of sensitivity
to motion, the schedule when the camera is sensitive to detecting motion as well as
which methods are used to alert you to a motion detection alarm.
You can also enable dynamic analysis for motion. When there is motion, the area will
be highlighted as green.
