6.0 THE ADVISOR X TEST SYSTEM
6.1 General Description
The structural vibration detectors in the Advisor X System can
be checked with the Remote Test System. A DV1215 Test
Transmitter is mounted inside the detector on the supervised
surface. Upon application of 12VDC power, the transmitter’s
transducer converts the supplied oscillations into signals which
are transmitted into the protected surface and picked up by the
detector. The detector goes into alarm and its LED output
(Terminal 3) goes out of conductive mode. In the indicator unit,
a corresponding LED is activated. The LED remains on as long
as the sensor is in alarm.
7

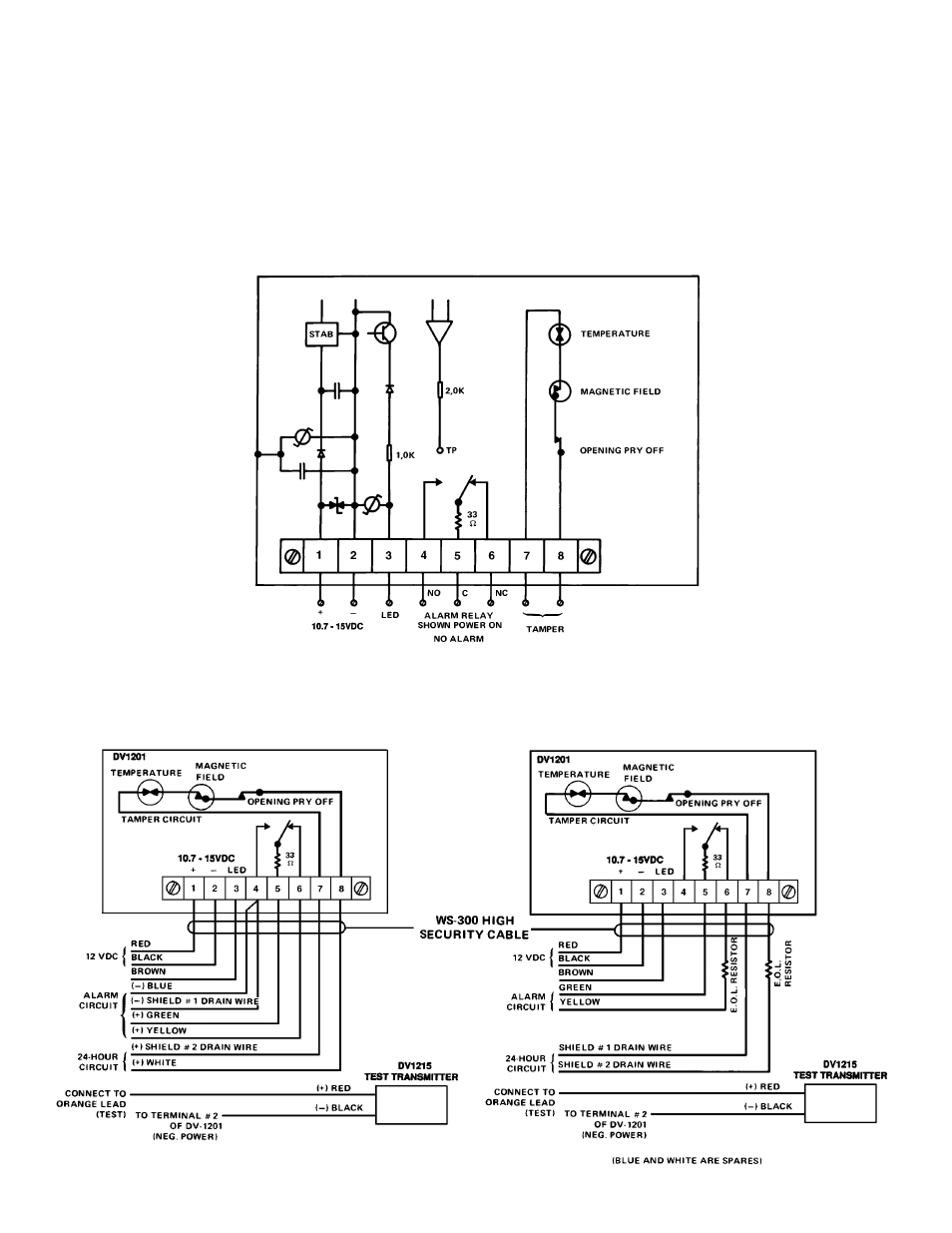

7.2 Connecting the DV1201 to a
Four-wire Circuit Type Control in a
UL Complete Mercantile Safe System
7.3 Connecting the DV1201 to a Two-wire
Balanced Loop Type Control in a
UL Complete Mercantile Safe System
7.0 WIRING DIAGRAMS
7.1 Wiring the DV1201/DV1221 into Most Security Systems
