Page 13
6
2 Protocol, Baud Rate, Address setup
Before you operate, you need to set protocol, baud rate and address. Otherwise you can not control
the product!
2.1 Protocol and Baud Rate Setup
Please configure the following settings before begin controlling dome:
z
Protocol
z
Baud
rate
z
Address
Note: Please reboot the speed dome to get all the setups activated!

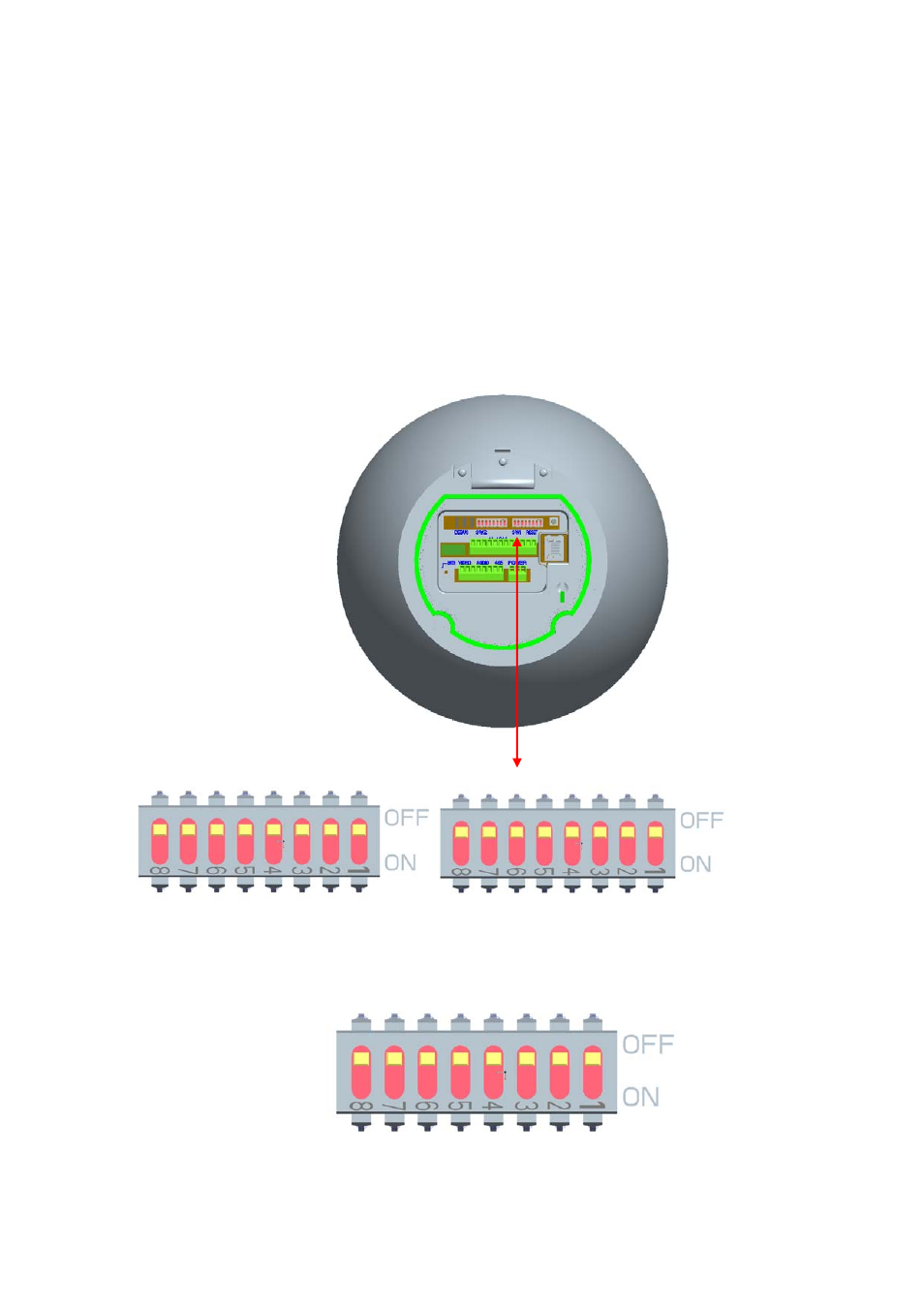

Open the lower dome, the interface is shown as below. See Figure 2-1.
SW2
SW1
Figure 2-1
SW2
Figure 2-2
