28
TRANSMITTER SETTINGS TRANSMITTER SETTINGS
Transmitter Specifi cations:
● 2.4GHz FHSS ● 6 Channel Encoder
● 100mW Output Power ● Automatic Linking
● 230mAh Current Drain
● Requires (8) AA Alkaline (Rechargeable AA cells can be used)

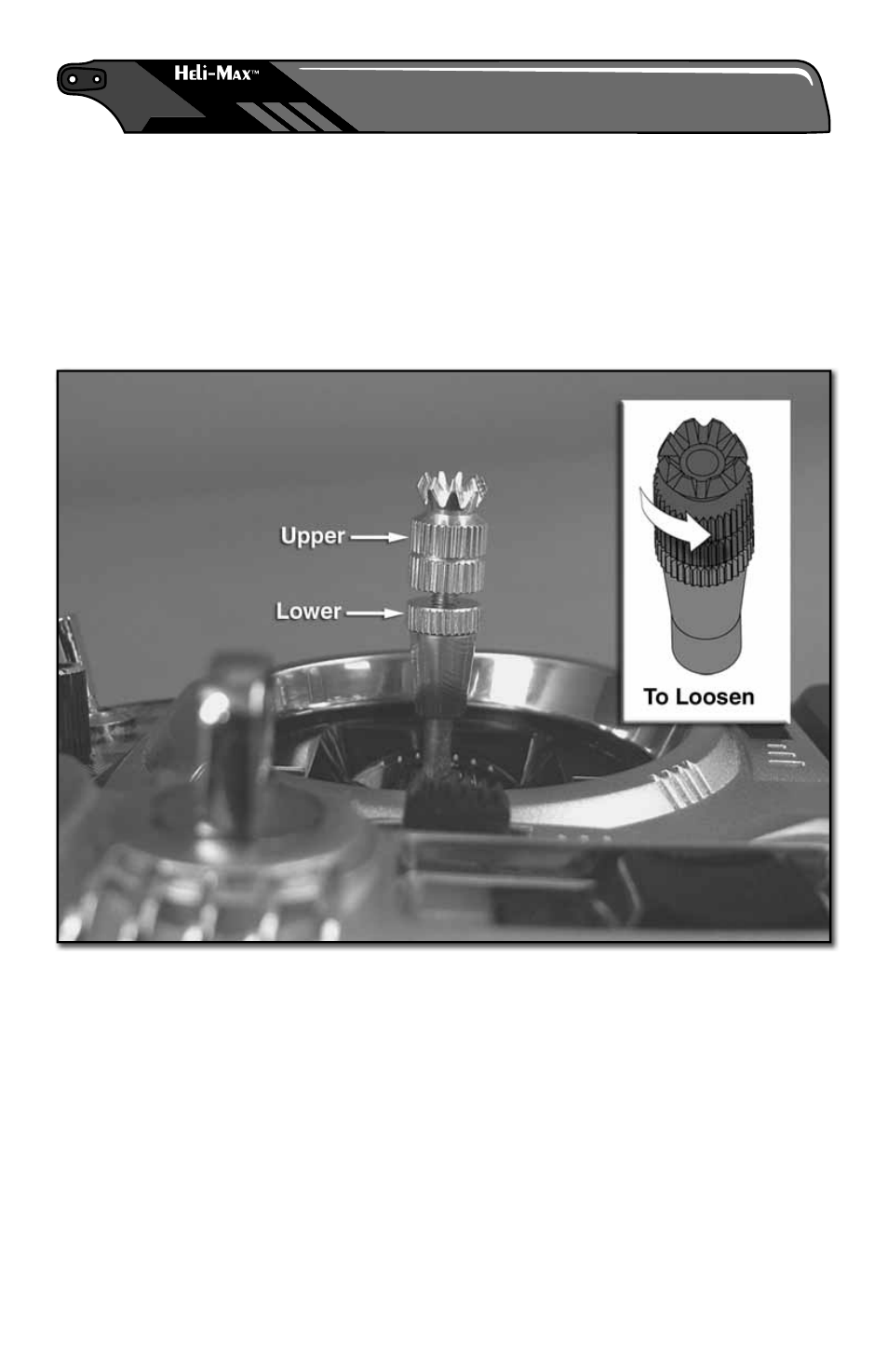

Stick Length Adjustment
To adjust the stick length hold onto the lower portion of the stick and turn the
upper portion counterclockwise to unlock and separate the upper stick end from
the lower stick end. Rotate the upper stick end to adjust the length. Once you
have the desired stick length set, hold onto the upper stick end to prevent it from
rotating and tighten the lower stick against the upper stick end to lock it into
position. Repeat for the other stick assembly if necessary.
