SERVO SETUP

Note:

The AXE CP 2.4GHz RTF is factory set-up and test fl own so there is no

need to make these adjustments unless you have damaged or changed a servo.

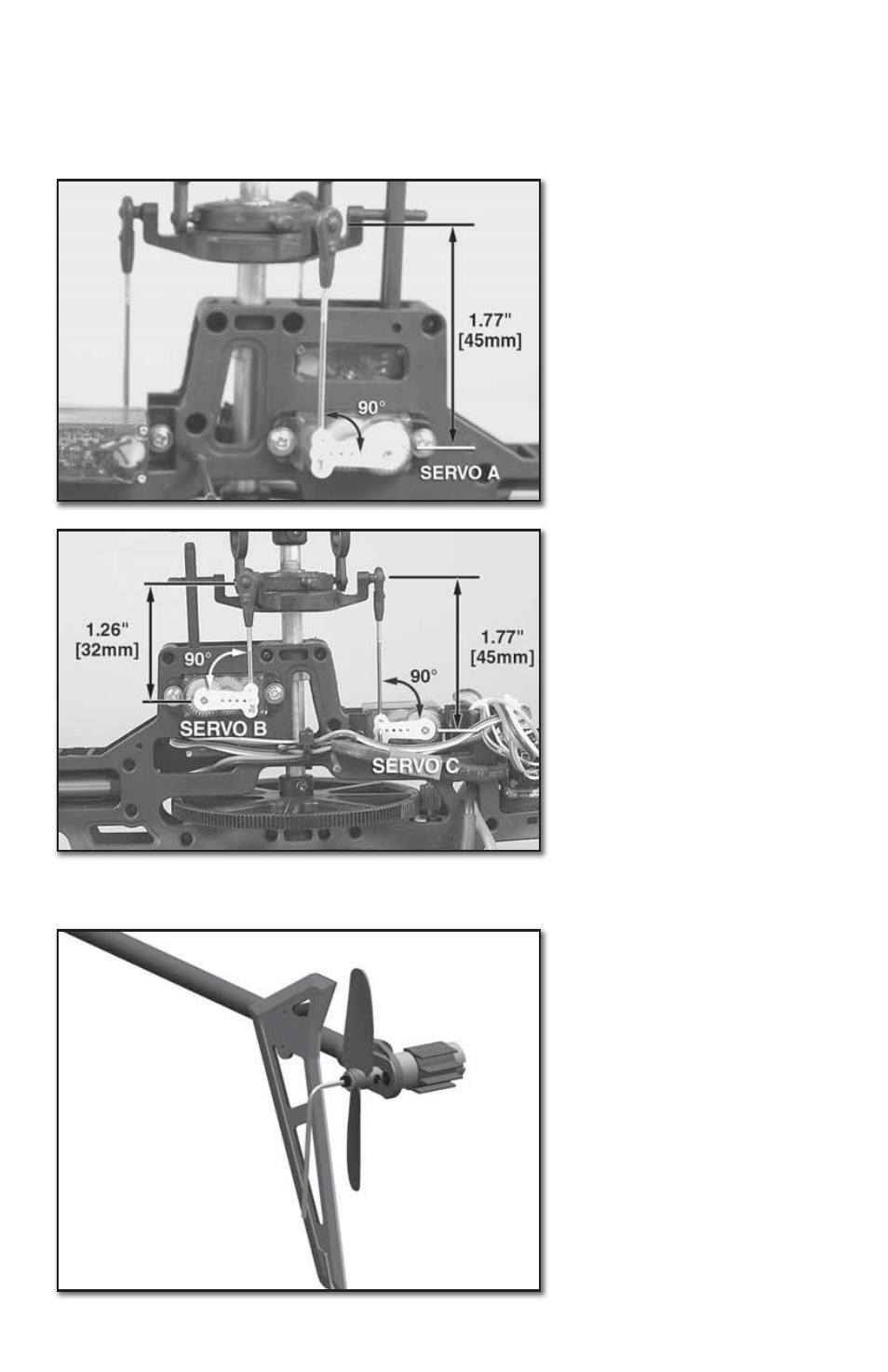

Servo arms are perfectly
level when the throttle
stick is all the way down in
normal mode (Idle Up Off).
Helicopter left side Servo A
pushrod length should be
1.77” [45mm].

Servo arms are perfectly
level when the throttle
stick is all the way down in
normal mode (Idle Up OFF).
Helicopter right side Servo
B pushrod length should be
1.26” [32mm] and Servo C
pushrod length should be
1.77” [45mm].

TAIL ROTOR REPLACEMENT

Use two small fl at bladed
screwdrivers to pry the old
tail rotor from the motor. Try
to apply even pressure to
both sides of the tail rotor.
When installing the new
tail rotor please note that
the beveled portion of the
hub goes in towards the
motor. Simply press the new
propeller onto the tail motor.
