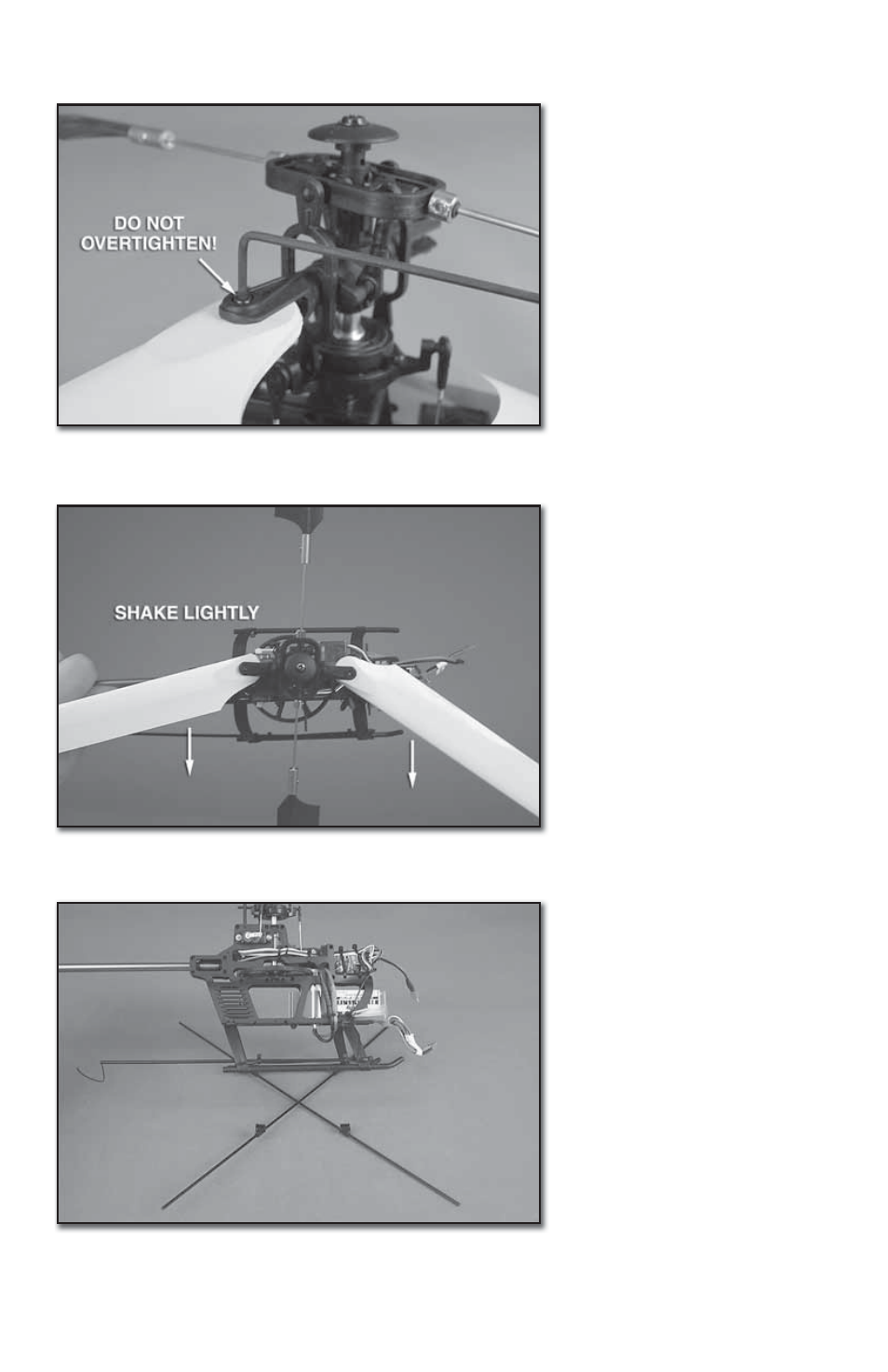

Slide a blade into the
blade grip and re-install
the 2 x 12mm socket head
cap screw. Repeat for the
other blade.

BLADE TENSION TEST

❏ To test the blade tension,
hold the helicopter up
sideways. The blades should
support themselves until the
helicopter is shaken slightly;
then they will fall as shown in
the picture above. The blades
should be fairly loose but it is
critical that both blades are
the same tension.

ASSEMBLE TRAINING GEAR

❏ 1. Snap the four plastic
fi ttings onto the landing gear
as shown. Slide the carbon
rods through the underside of
the fi ttings.
