User Manual – Haltech 350Z
3.4 Auxiliary Outputs
The ECU has two Auxiliary Outputs that can be configured via the ECU Manager.
Both outputs can be found on the 3 POS AMP connector fitted to the Patch Harness.
The wiring for this connector is as follows:
Position Function
1 Boost Solenoid Output (Aux Out 1)
2 +12V
3 AUX Out 2

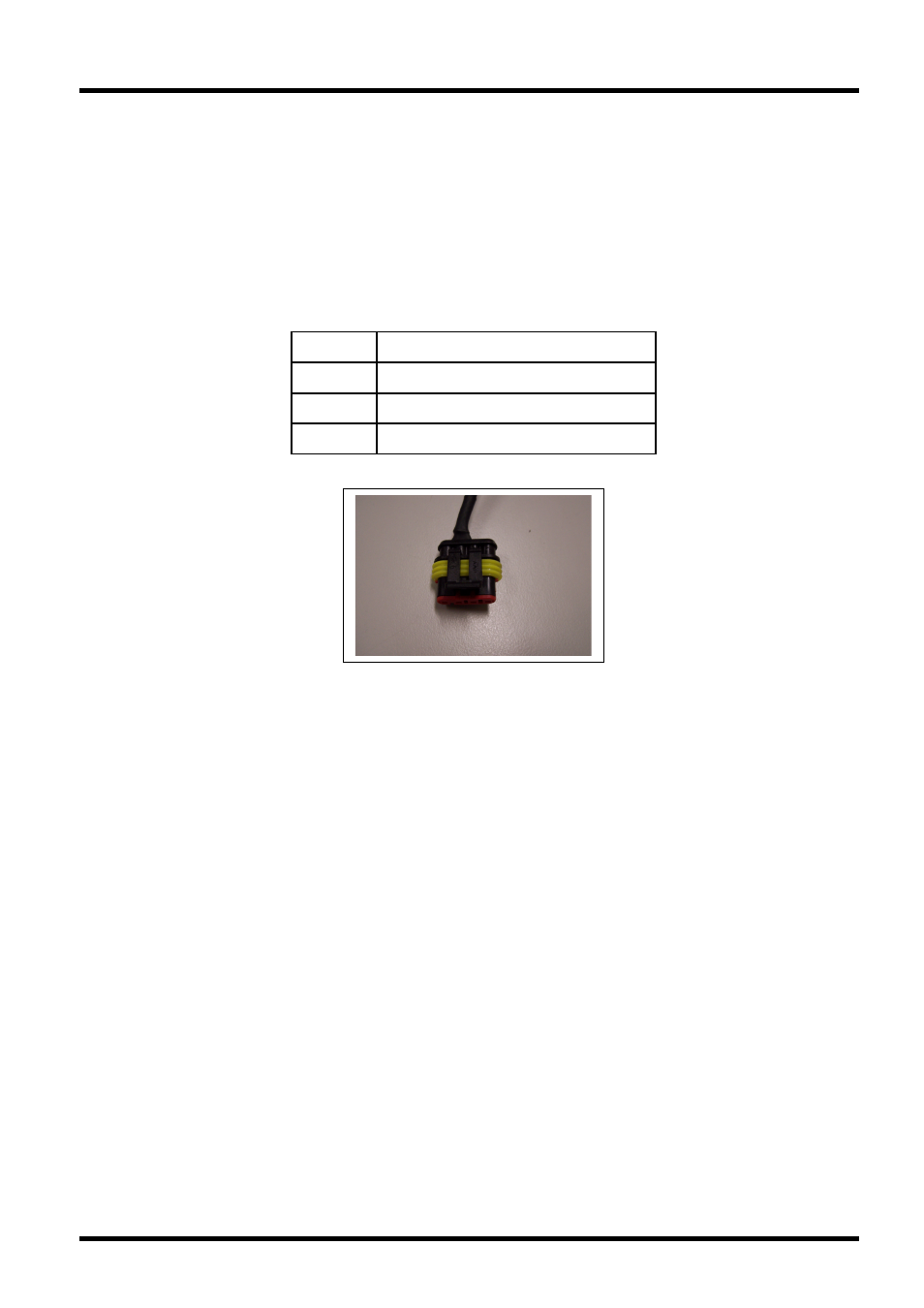

Figure5. The Auxiliary Output Connector (3 Position)
3.4.1 Installing a Boost Control Solenoid (Optional Accessory)
An external Boost Control Solenoid can be fitted to Patch loom via the AMP 3 POS connector.
The wiring for the Boost Control solenoid should be as follows:
Once the Boost control Solenoid has been wired, the ECU must be configured to operate correctly. This can be
done via the Main Setup Page.
3.5 Auxiliary Rev Limiter Input
The ECU has an Auxiliary Rev Limiter that can be configured via the ECU Manager.
The Aux Rev Limiter Input can be found on the 2 POS AMP connector fitted to the Patch Harness.
To activate the Aux Rev Limiter, connect the Aux Rev Limiter Input to the Ground wire.
The wiring for this connector is as follows:
1.0 Page 8 of 42
