8
❏

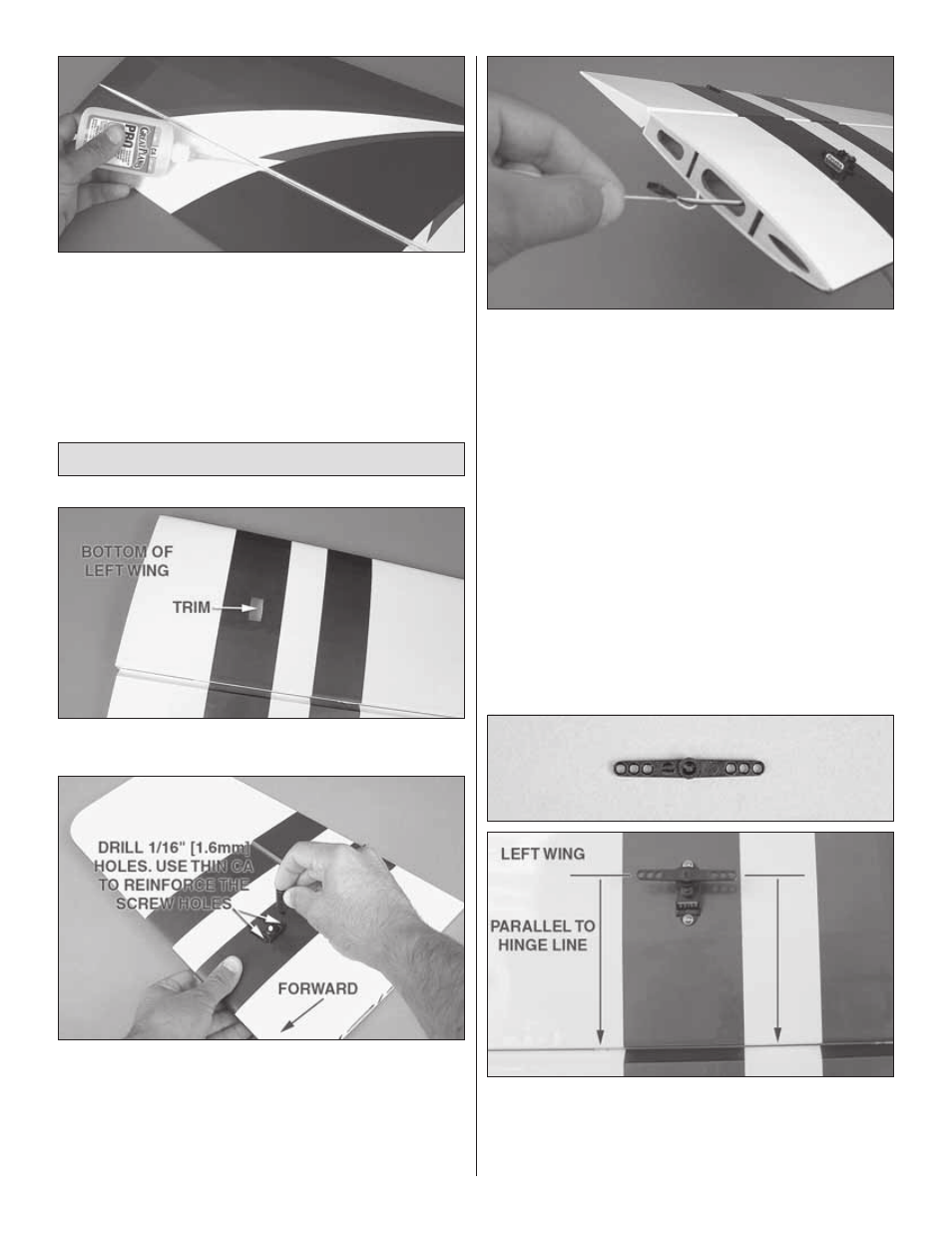

5. Defl ect each aileron up and down until the beveled edge
lies fl at with the TE of the wing panel. This will ensure that
you will achieve full travel of each aileron without opening too
much of a gap. When satisfi ed with the fi t of each aileron, apply
seven to eight drops of thin CA glue to the top and bottom
of each hinge. Allow the CA a few minutes to harden before
attempting to move the ailerons. Do not use CA activator.
Install the Aileron Servos & Pushrods
❏
1. Using a sharp hobby knife, trim open the aileron servo
bay in each lower wing panel.
❏
2. With the splines facing forward, temporarily insert a
servo into each servo bay. Using a 1/16" [1.6mm] drill bit,
drill holes for the servo mounting screws (provided with
your servos). Thread a servo screw into each hole and then
remove the screws and pull out the servos. Apply two to three
drops of thin CA glue into each of the holes you threaded
and allow the CA to dry thoroughly.
❏
3. Reinstall the aileron servos and use the installation
string to pull the servo lead out through the wing rib. Install
the servo mounting screws.
❏
4. Use your radio to center the servos. Locate the servo
arms that fi t the splines of your servos. Test fi t a double-sided
servo arm onto each aileron servo. Fit the arm so that the
two arms are aligned parallel to the hinge line. Cut off the
inboard arm.
