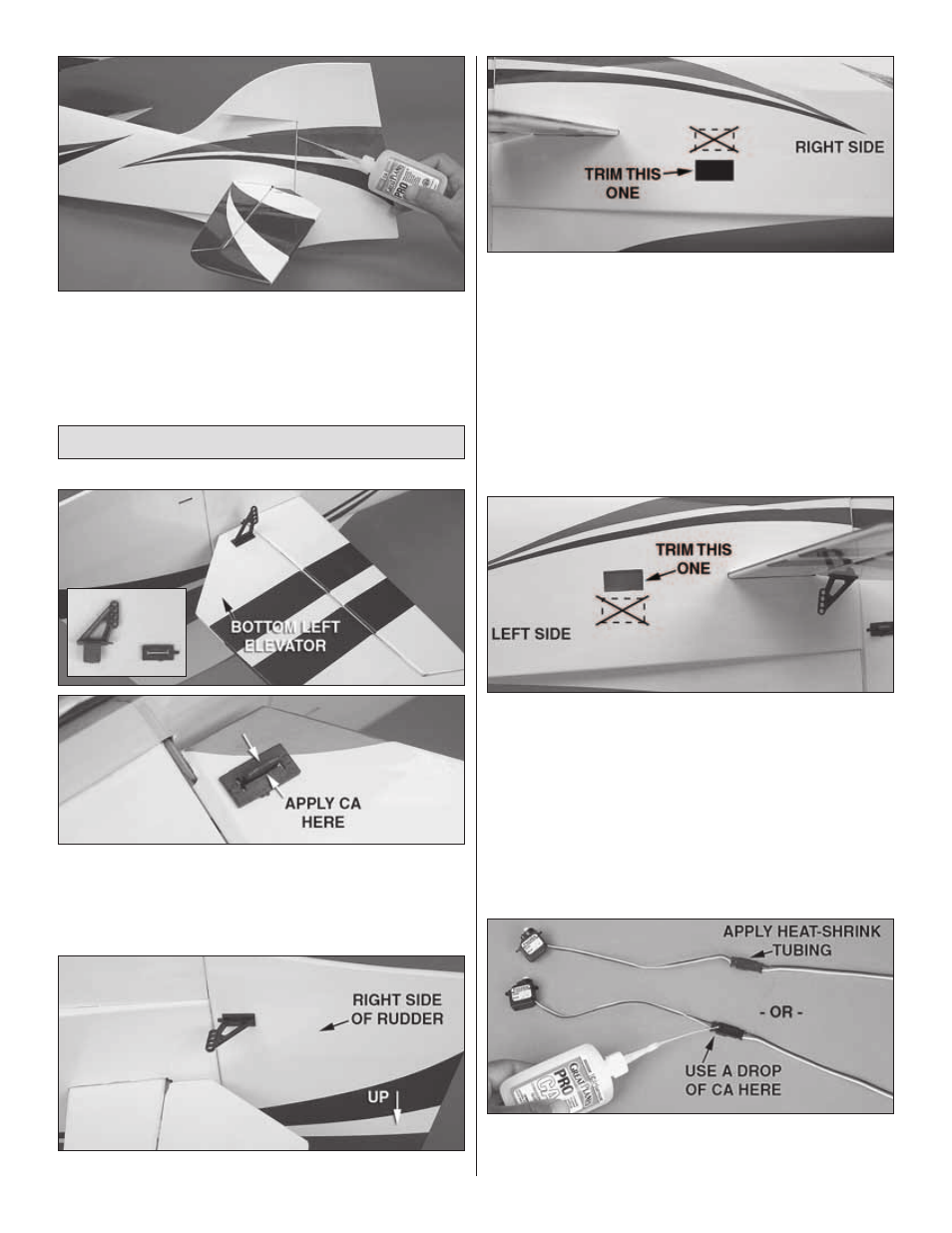

12. Join the rudder to the fi n using four CA hinges.
Install the Tail Servos & Pushrods
❏
1. Locate two control horns and two horn retainers. Fit
one horn to the bottom of the left elevator. Turn the model
over and install a horn retainer onto the stud of the control
horn. Apply one drop of medium CA to each side of the stud.
You may trim off the tip of the stud after the glue has cured.
❏
2. Install the other horn on the right side of the rudder.
❏
3. Trim the covering from the lower servo bay on the
right side of the fuselage. This is where the rudder servo will
be installed. Re-tack the covering using a sealing iron.
❏
4. Trim the covering from the upper servo bay on the
left side of the fuselage for the elevator servo. Re-tack the
covering using a sealing iron.
❏
5. Connect a 12" [305mm] servo extension to each of
the tail servos. Use one drop of medium CA or heat-shrink
tubing to secure the servo extension to the servo lead.
