4. When instructed to test fit parts, this means DON'T USE
GLUE until you are satisfied that everything fits properly -
THEN glue the parts together if instructed to do so
6 The easiest way to cut balsa sticks is with a single edge
razor blade or razor saw Position the stick over the plan,
mark its size, then cut the part on a piece of scrap lumber
A modeling miter box works well for cutting square corners
and 45° gussets.
5. Whenever the instructions tell you to glue pieces
together, CA or epoxy may be used When a specific type
of glue is required, the instructions will state the type of
glue that is highly recommended. When 30-mmute epoxy
is specified, it is highly recommended that you use only
30-minute (or slower) epoxy because you will need either
the working time and/or the additional strength

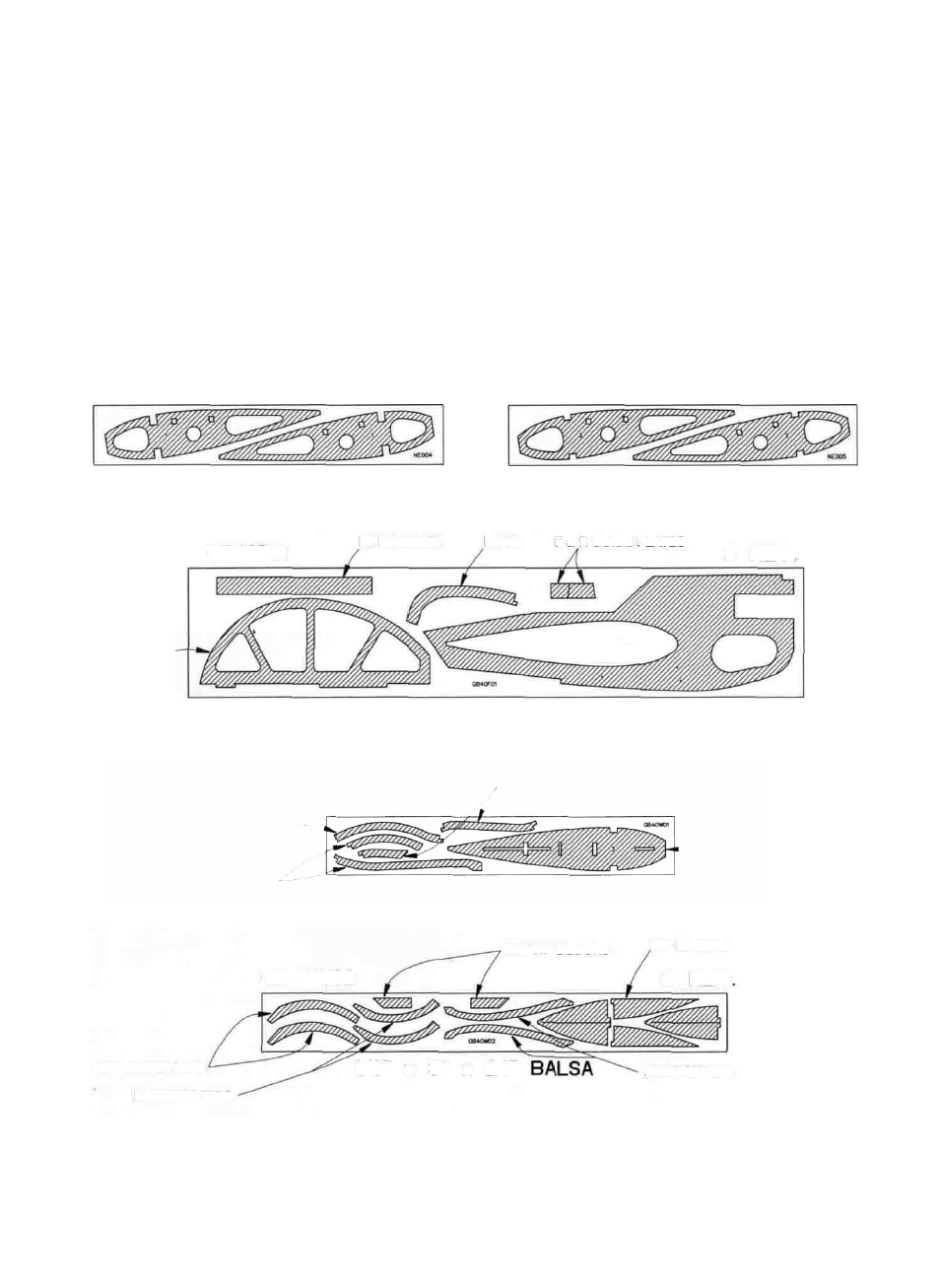

DIE-CUT PATTERNS
NE004 2 REQ. NE005 5 REQ.
3/32" X 3" X 18" BALSA
3/32" X 3" X 18" BALSA
GB40F01
2 REQ.
LE DOUBLER
NOSE
F & R GUIDE PLATES
1/8" x 6-5/8" x 31-3/4" PLY
CANOPY FRAME
FIN LE
RUDDER OUTER FRAME
TIP RIB
1/8" x 3" x 18" BALSA
GB40W01
2 REQ.
STABILIZER TIPS
ELEVATOR TIPS
GB40W02
2 REQ
1/8" x 3" x 24" BALSA
AlLERON TIPS
TIP BRACES
AFT TIP BLOCKS
5
