4.0 Operating instructions
4.1
Unpacking instructions
Standard equipment includes:
 Immersion thermostat (T100 or TC120)
 Pump outlet plates (TC120 only)
 Mains cord with plug
 Operating manual
 Quick start guide
ST bath accessory includes:
 Stainless steel bath
 Bridge plate
 Circulating tray (ST18, ST26 & ST38 baths only)
P bath accessory includes:
 Plastic bath
 Bridge plate
Remove packing materials carefully and retain them for future shipment or storage of the
equipment.
4.2
Fitting controller to ST baths
The T100/TC120 can be fitted to the following stainless steel baths, ST5, ST12, ST18,
ST26 and ST38 in two orientations for convenience, facing over ST bath (A) or facing
outwards (B):

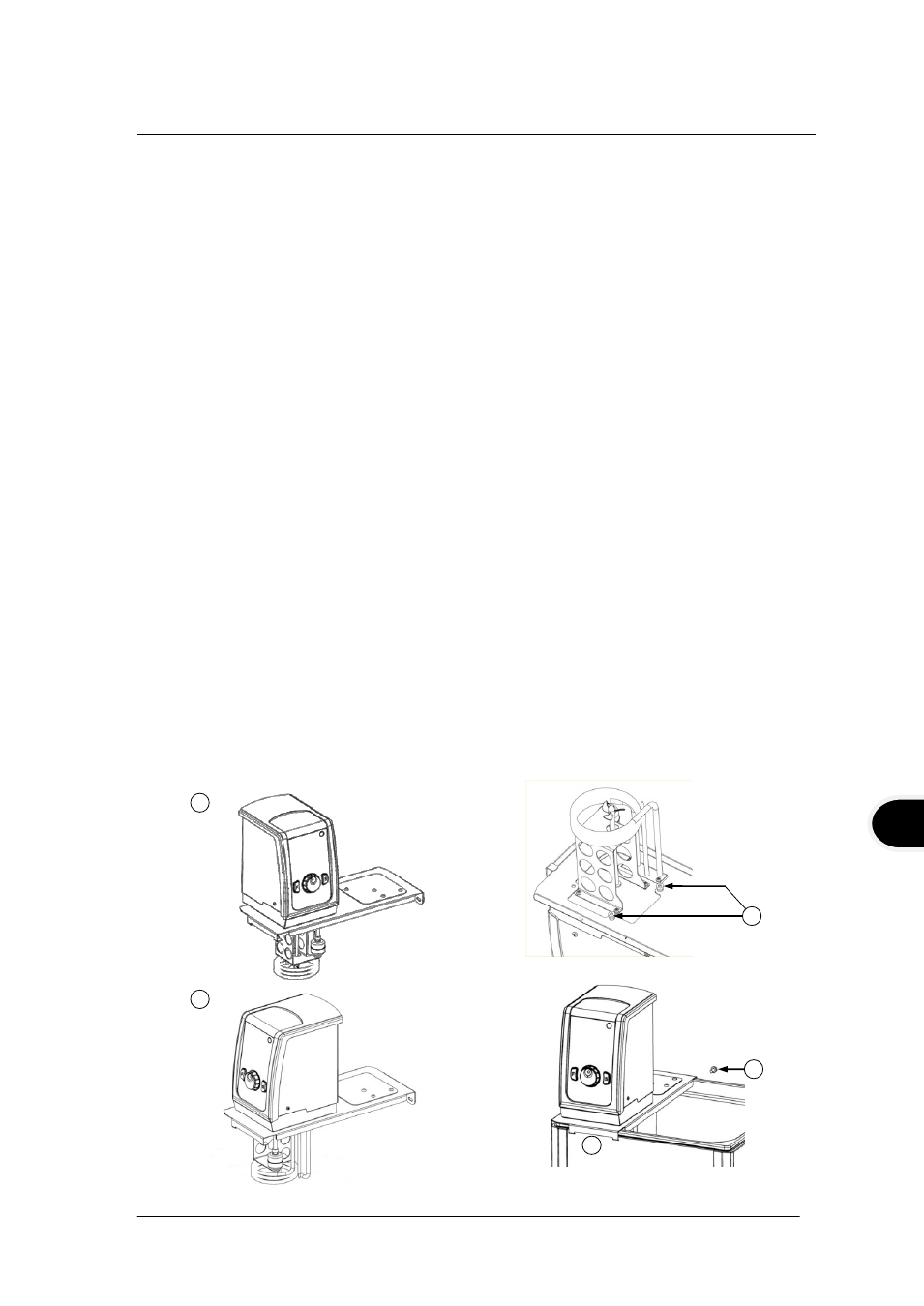

1. Fit the T100/TC120 through the hole in the bridge plate and align using the locating
threads. Secure using the retaining nuts. Hand tighten only.
2. Hook the assembly into the slots on the ST bath and use the supplied fixing to secure
to the rear of the bath.
2
A
B
1
2
