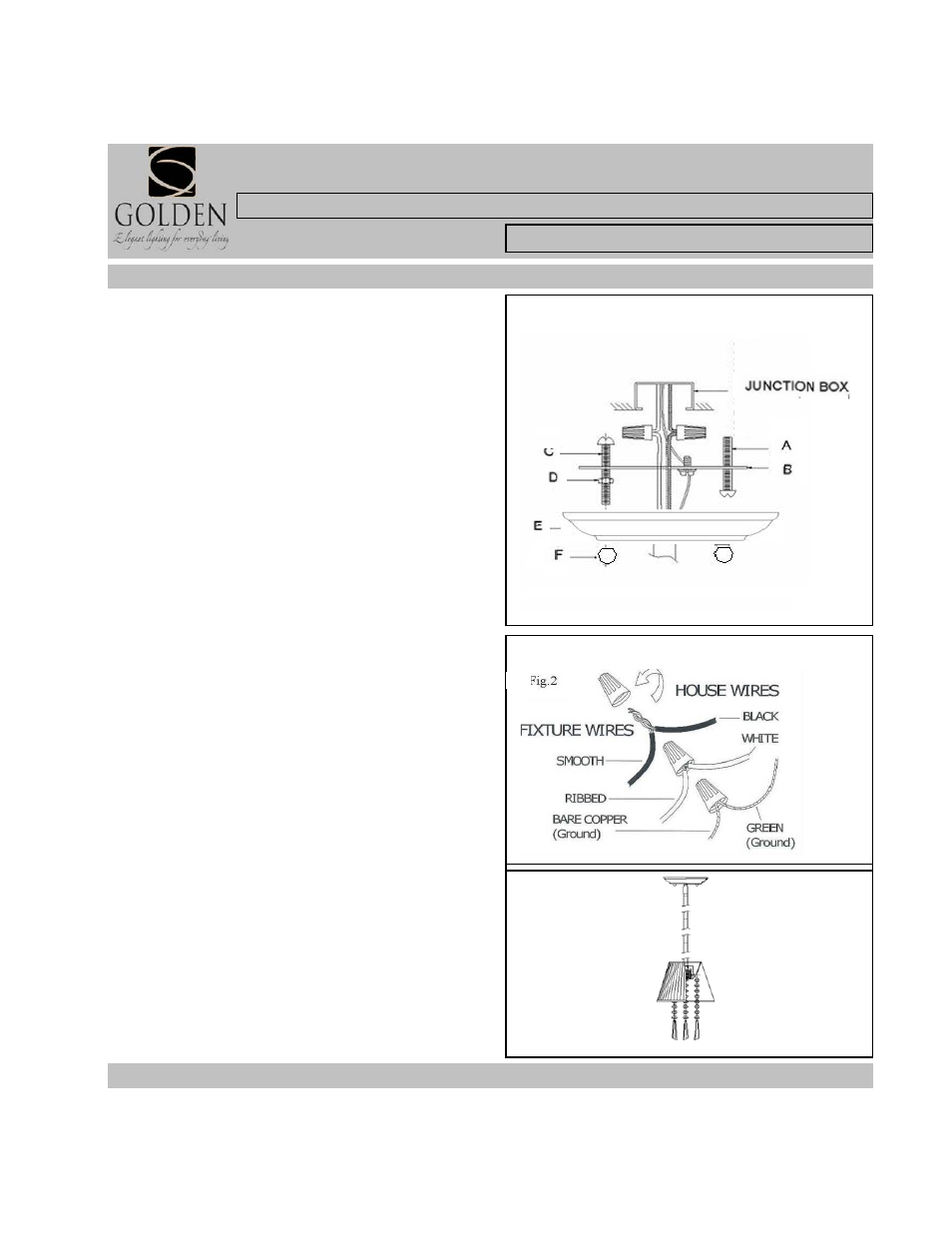

INSTALLATION INSTRUCTIONS

Fixture Name: Tetiva 8201-M1L BLK/SLV

For Wall Mount Light Fixture

WARNING ! SHUT OFF POWER AT FUSE OR CIRCUIT BREAKER.

FINISHING THE INSTALLATION (Fig 3)

9. Place the fixture Back Plate (E) over the two Mounting

Screws (C). Secure the Back Plate (E) against the wall by

threading Deco nuts (F) over the two Mounting Screws

(C) until tight as shown on Fig.1

YOUR INSTALLATION IS NOW COMPLETE. RETURN

POWER TO THE JUNCTION BOX AND TEST THE

FIXTURE.

Fig. 3

For Customer Service, please contact the place of purchase to arrange for replacements.

HANGING THE FIXTURE (Fig 1)
1. Carefully remove the new fixture from the carton and
the yellow bag that holds all your parts. Check that all
parts are included as shown in the illustrations and the
Parts List.
2. Shut off power at the circuit breaker and completely
remove the old fixture from wall, including the old
mounting strap.
3. Mounting Strap (B) contains several pairs of threaded
holes. Find the pair of holes that matches the spacing of
the holes in your fixture Back Plate (E). Thread Fixture
Mounting Screws (C) half way into the Fixture Mounting
Strap (B).
4. Place the Mounting Strap (B) over the Junction Box so
the Fixture Mounting Screws (C) are vertical or horizontal,
as required by the fixture type.
5. Attach the Fixture Mounting Strap (B) to the Junction
Box using Mounting Screws (A). Securely tighten the
screws with screwdriver.

Fig. 1

CONNECTING THE WIRES (Fig 2)
6. Attach the power supply wires to the fixture lead wires
by connecting BLACK to BLACK (or SMOOTH) and
WHITE to WHITE (or RIBBED).
7. Attach the ground wire (GREEN or COPPER) from the
Junction Box and the fixture ground wire to the green
ground screw on the Mounting Bracket (B) or connect
both wires together using the correct size of wire
connectors.
NOTE: Twist the wires together in the same direction that
you twisted the wire connector onto the wires.
8. Tuck these wire connections neatly into the Junction
Box.

Fig. 2
