For Customer Service, contact the place of purchase to arrange for replacement parts.
3. Unscrew the Deco screws (M) from the Frame and save.
4. Several of the arms are already attached to the Frame. Gently spread the remaining arms until evenly
spaced.
5. Align the hole in lower side of Frame arm with hole Frame. Secure in place with the Deco screw (M).
6. Repeat with remaining arms both upper and lower, secure with the Deco screws (L, M).
* NOTE: The Finial can be scratched or broken if the full weight of the fixture is placed on it. To avoid damage
attach Finial after hanging the fixture.
7. Attach Finial (O) to the base of fixture Frame by threading the Finial (O) onto the threaded rod (N) until
tight.
8106-363 CDB
8106-15L CDB

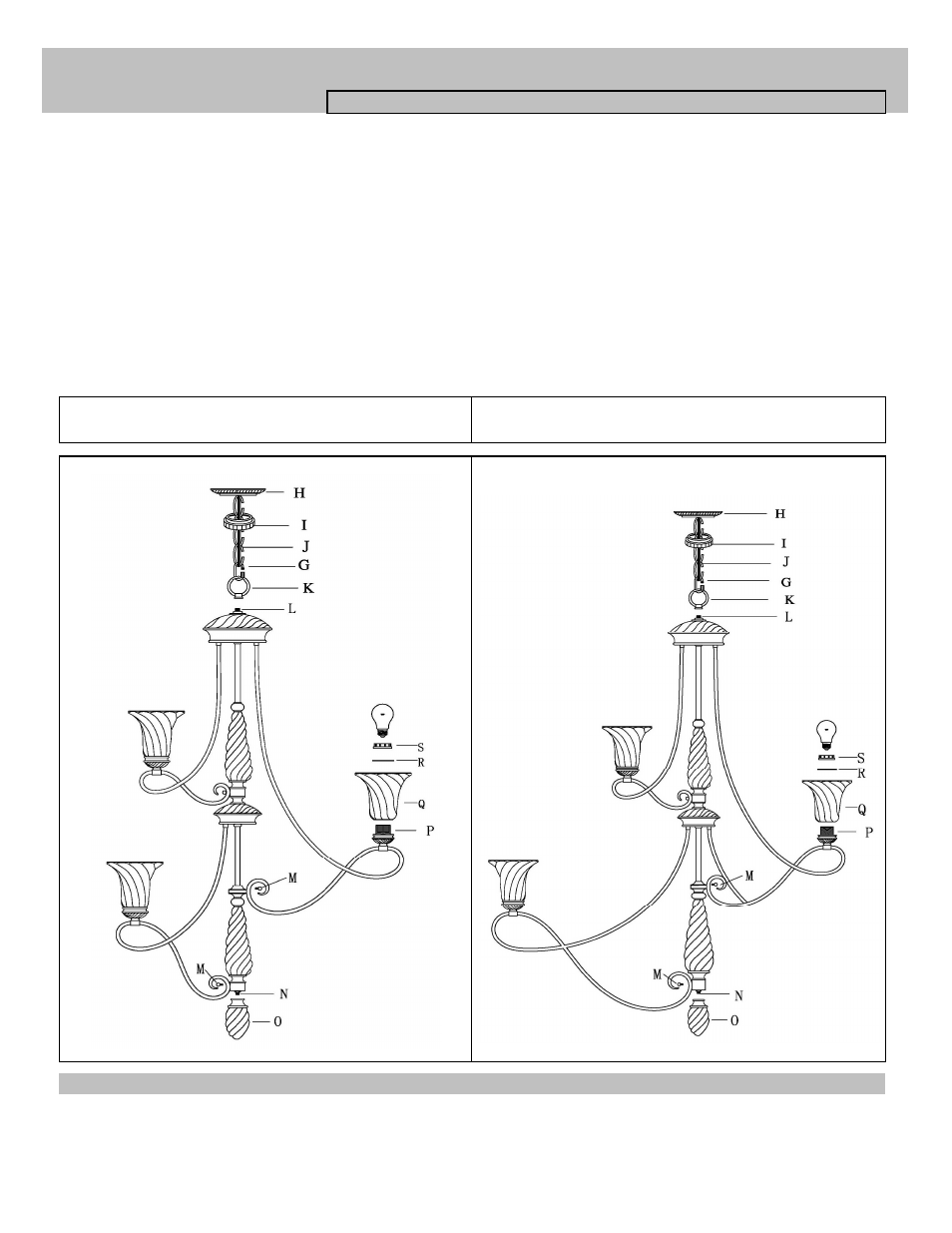

PARTS & ASSEMBLY SHEET
Fixture Name: Torbellino 8106-363/15L CDB
Fig 2
Fig 2
