Golden Lighting 3082-M3/6/8 PW - Manual

Canopy Wire Connectors Top Loop
1ea D5-1/8"*H1" 3ea P3 Orange 1ea W50 x 60mm
Chain
Junction Box
Screw
Spring Washer
1ea 6ft x3.8mm 2ea 8/32" x 1" 1ea @15 x 2mm
Chain Connector
Canopy Loop
with Collar
Nipple
2ea @4.2X50mm 1ea @3/8 x 40mm
Mounting Strap
w/ ground screw
Hex Nut
1ea 3/4"X4" 2ea @3/8 x 3mm
Part Needed Quantity
Part Needed Quantity
Reason why ( missing, scratched, broken glass, bent, bad finish)
Comments

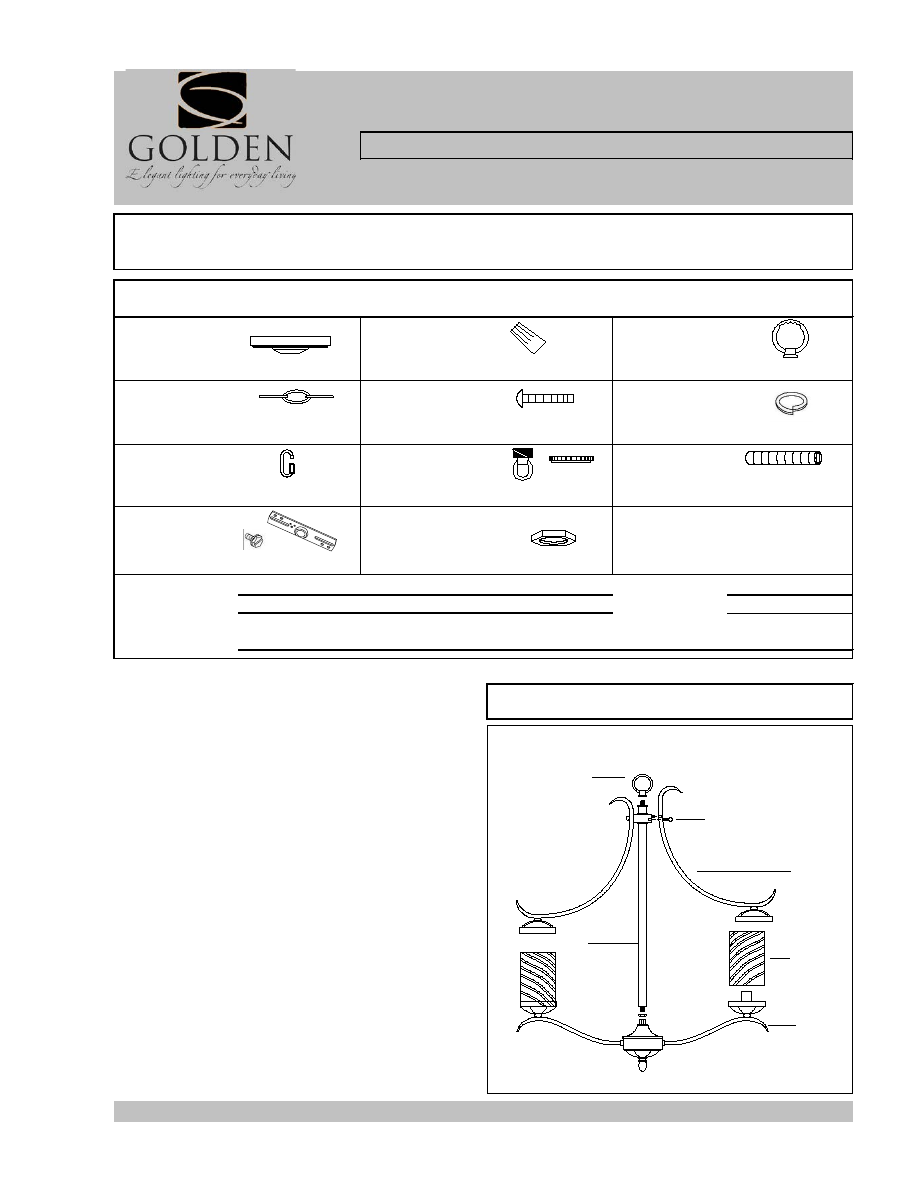

ASSEMBLING THE FIXTURE (Fig. 1)
1. Thread the threaded Stem (P) into the coupling
at center of fixture Body (R).
2. Thread the Top Loop (J) onto Stem (P). Hand-
tighten until snug.
3. Put the Glass shade(Q) into the Cup. Keep
level while attaching upper arms (I). Attach
upper arms by screwing the thumb screw (N).
Then put the Thumb Screw (N) through Deco Arm
(I) on clockwise rotation until tight.
(DO NOT EXCEED THE MAXIMUM WATTAGE RATING)
Fig. 1
F IXTURE A SSEMBLY I NSTRUCTIONS
Read and review installation instruction sheet before
assembling the fixture.
3082-M3/6/8 PW
For Customer Service, contact the place of purchase to arrange for replacement parts.
Fixture Name: Wynn 3082-M3/6/8 PW
This fixture assembled PO:__________ Date: ________
Notice: Please review the parts listing and check for all parts before assembling the fixture. If any parts are missing or
damaged, please note on this sheet and contact the place of purchase to arrange for replacement parts.
PARTS LIST
Company Name:_______________________ Co. Account #:_____________
to be filled out by retailer
1ea @3/8 x 40mm x 5mm
PARTS & ASSEMBLY SHEET
J
R
Q
I
N
P
