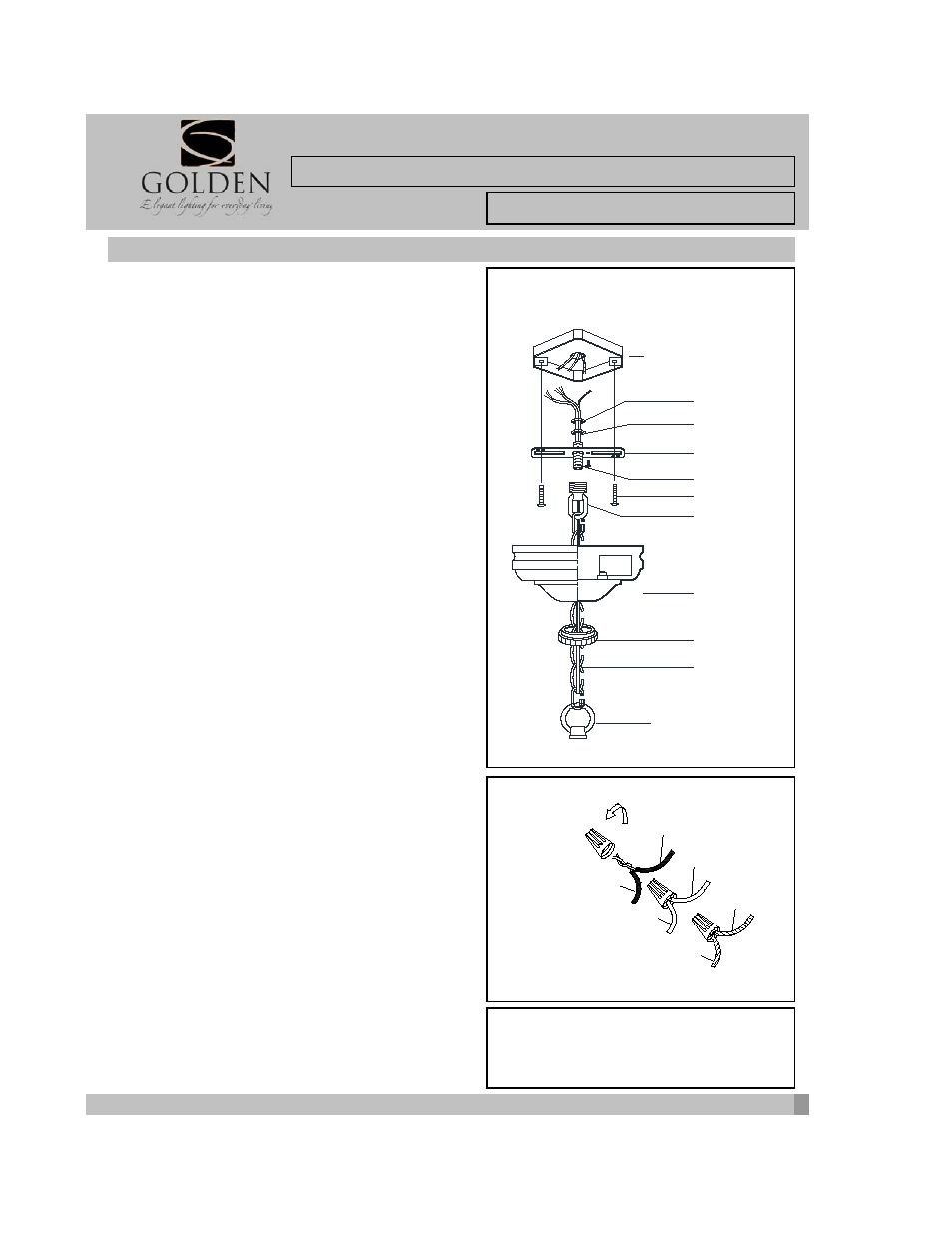

Fig. 1
INSTALLATION INSTRUCTIONS
Fixture Name: Athena 3071-M3 GG
For Chandelier Light Fixture
WARNING ! SHUT OFF POWER AT FUSE OR CIRCUIT BREAKER.
For Customer Service, contact the place of purchase to arrange for replacement parts.
Fig. 2
YOUR INSTALLATION IS NOW COMPLETE.
RETURN POWER TO THE JUNCTION BOX
AND TEST THE FIXTURE.
BARE COPPER
(Ground)
GREEN
(Ground)
FIXTURE WIRES
SMOOTH (BLACK)
RIBBED (WHITE)
BLACK
WHITE
HOUSE WIRES
HANGING THE FIXTURE (Fig. 1)
1. Carefully remove the new fixture from the carton and the
yellow bag that holds all parts. Check that all parts are included
as shown in the illustrations and on the Parts and Assembly
Sheet.
2. Shut off the power at the circuit breaker and remove the old
fixture from ceiling, including the old mounting strap.
3. Thread Nipple (C) onto Canopy Loop (F) until snug.
4. Thread the other end of the Nipple (C) with Canopy Loop (F)
attached into Mounting Strap (D).
5. Place Lock Washer (B) over the end of Nipple (C) which
should protrude through Mounting Strap (D). Then, thread Hex
Nuts (A) onto the nipple until tight.
6. Take this mounting strap assembly and mount it to the
ceiling junction box with Junction Box Screws (E). Tighten the
screws securely with screw driver.
7. Unscrew Canopy Loop Collar (H) from the canopy loop.
Take the canopy and pass over the canopy loop.
Approximately one half of the canopy loop exterior threads
should be exposed. Adjust until the desired height is reached.
Note: The Canopy loop collar should fit snugly on the canopy
loop after the canopy is installed. Remove the canopy and
canopy lock collar.
8. Assemble the fixture and have an assistant or secure
support to hold the weight of the fixture while you complete the
wiring connections.
9. Thread the fixture wires and ground wire of the assembled
fixture through the canopy loop and nipple and into the outlet
box.
CONNECTING THE WIRES (Fig. 2)
10. Attach the power supply wires to the fixture lead wires by
connecting BLACK to BLACK (or SMOOTH) and WHITE to
WHITE (or RIBBED).
11. Attach the GROUND wire (GREEN or COPPER) from the
Junction Box and the fixture Ground wire to the green Ground
Screw on the Mounting Bracket (D) or connect both wires
together using the correct size of wire connectors.
NOTE: Twist the wires together in the same direction you
twist the wire connector onto the wires.
12. Tuck these wire connections neatly into the Junction Box.
13. Raise Canopy (G) to the ceiling and secure in place by
tightening Canopy Loop Collar (H) into Canopy Loop (F).
14. Install the light bulbs as per the fixture assembly sheet.
