For Customer Service, contact the place of purchase to arrange for replacement parts.
CONNECTING THE WIRES (Fig 2)
10. Attach the power supply wires to the fixture lead wires
by connecting BLACK to BLACK (or SMOOTH) and WHITE
to WHITE (or RIBBED).
11. Attach the GROUND wire(GREEN or COPPER) from
the Junction Box and the fixture Ground wire to the green
Ground Screw on the Mounting Bracket (B) or connect both
wires together using the correct size of wire connectors.
NOTE: Twist the wires together in the same direction you
twist the wire connector onto the wires.
12. Tuck these wire connections neatly into the Junction
Box.
Fig. 2
FINISHING THE INSTALLATION
13. Raise Canopy (G) to the ceiling and secure in place by
tightening the Canopy loop collar(H) onto the Canopy
Loop(F)
14. Install the light bulbs and glass shade as per the fixture
assembly sheet.
YOUR INSTALLATION IS NOW COMPLETE.
RETURN POWER TO THE JUNCTION BOX AND
TEST THE FIXTURE.
WARNING ! SHUT OFF POWER AT FUSE OR CIRCUIT BREAKER.

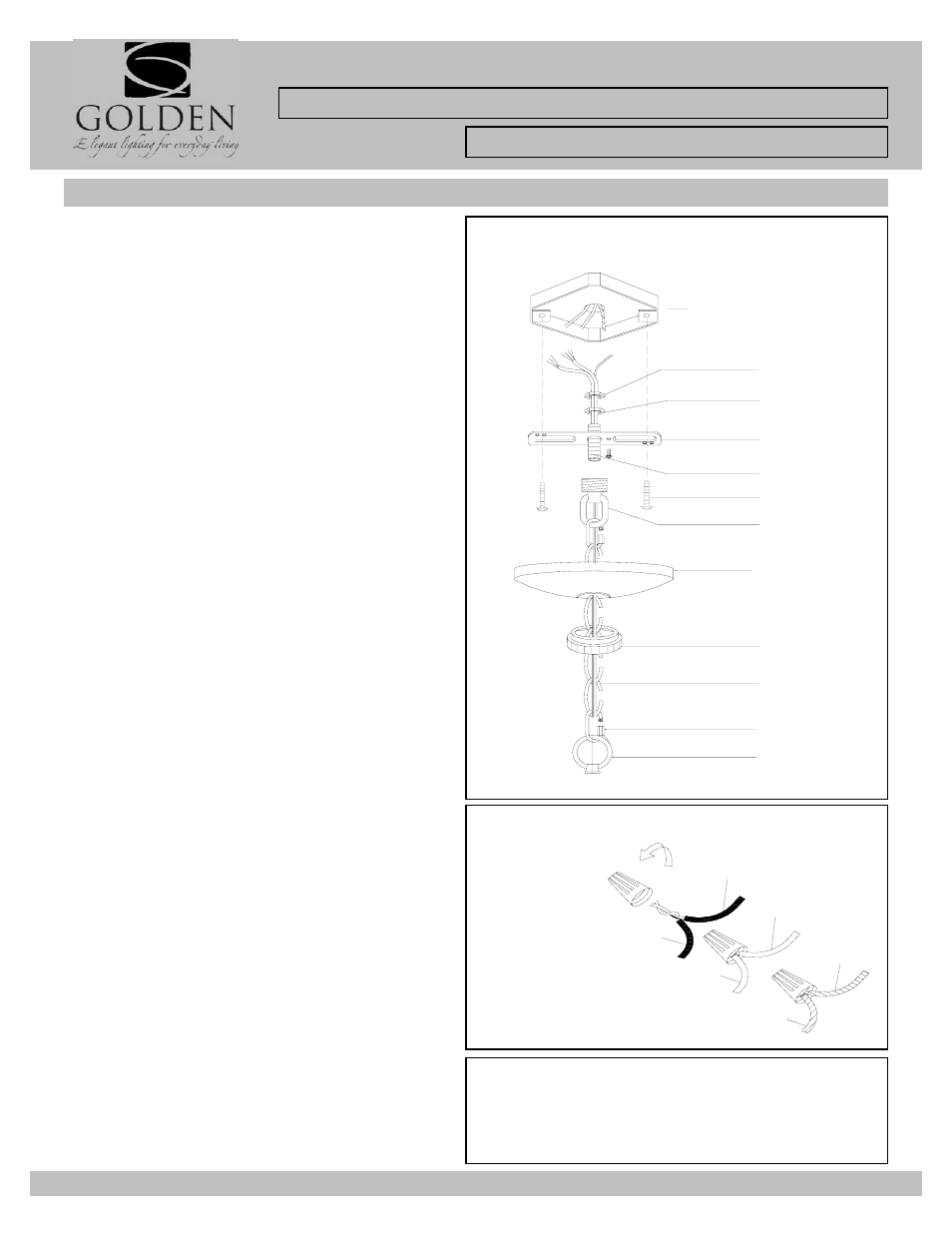

HANGING THE FIXTURE (Fig.1)
1. Carefully remove the new fixture from the carton and the
yellow bag that holds all parts. Check that all parts are
included as shown in the illustration and parts list.
2. Shut off the power at the circuit breaker and remove old
fixture from ceiling, including the old mounting strap.
3. Thread Nipple (C) into Canopy Loop (F) until snug.
4. Thread other end of the Nipple (C) with Canopy Loop
attached into Mounting Strap (D).
5. Place Lock Washer (B) over end of Nipple (C) protruding
through Mounting Strap (D) and thread spring washer (B)
and Hex Nuts (A) onto Nipple until tight.
6. Take this mounting strap assembly and mount to ceiling
junction box with junction box Screws (E). Tighten screw
securely with screw driver.
Fig. 1
7. Unscrew the Canopy loop collar (H) from the Canopy
loop. Take the canopy and pass over the Canopy loop.
approximatly one half of the canopy loop exterior threads
should be exposed. Adjust until desired height is reached.
*the Canopy loop collar should fit snugly on the Canopy loop
after the canopy is installed. Remove Canopy and Canopy
lock collar.
8. Assemble the fixture and have an assistant or secure
support hold the weight of the fixture while you complete the
wiring connections.
9. Thread the fixture wires and ground wire of the assembled
fixture through the canopy loop and nipple and into the outlet
box.
INSTALLATION INSTRUCTIONS
Fixture Name: Cerchi 1030-SF CH
For Chandelier Light Fixture
BARE COPPER
(Ground)
GREEN
(Ground)
FIXTURE WIRES
SMOOTH (BLACK)
RIBBED (WHITE)
BLACK
WHITE
HOUSE WIRES
L
B
C
A
JUNCTION BOX
(CEILING)
D
E
F
H
J
CHAIN
G
