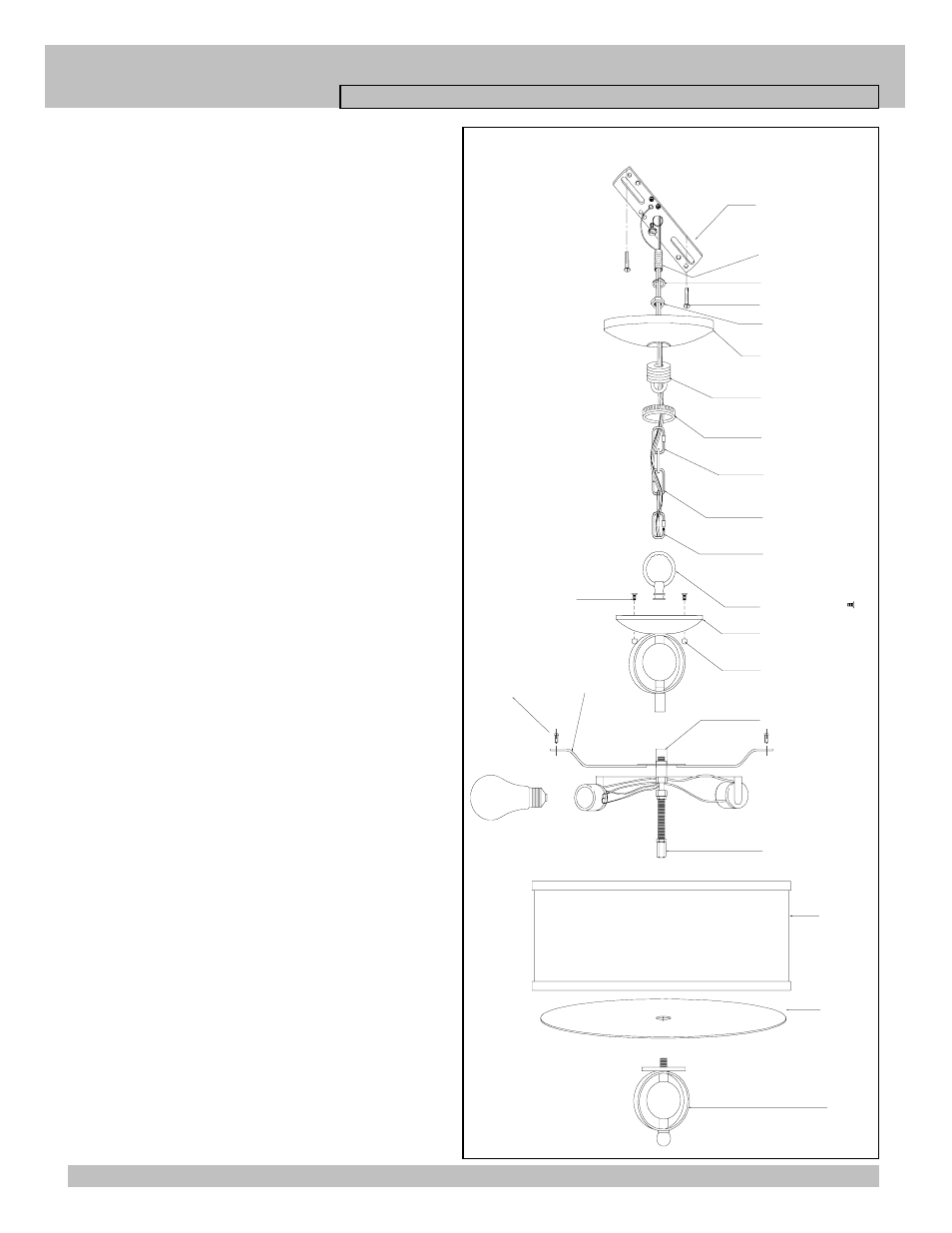

PARTS & ASSEMBLY SHEET
Fixture Name: Cerchi 1030-SF CH
Note: Complete these remaining steps after the fixture
is hung.
8. Slide Shade (H) through Fixture connector (K) and
secure Shade (H) to Arms (Y) with Screws (N).
9. Install light bulbs in accordance with fixture's
specifications.
10. Slide Diffuser ( I ) to Shade (H) and secure in place
by with Bottom Finial (J) to the Fixture connector (K).
11. The Center column rings may be turned to your
desired angle.
(DO NOT EXCEED MAXIMUM WATTAGE RATING)
Fig 3
For Customer Service, contact the place of purchase to arrange for replacement parts.
ASSEMBLING THE FIXTURE as Chain hung (Fig.2)
1. Remove the Circular strap from top of Fixture and
replace the long mounting screws with two short screws
(Z) to hold the Deco nuts (E) in place on the fixture Top
cap (F).
2. Feed the fixture wires through the Top loop (W) and
pull the wires until taut. Then screw the Top Loop (
W) to
the coupling in top cap (F) until tight.
3. By measuring determine correct number of links
needed for proper hanging height. Use a pair of pliers to
open one link of the Chain (T) then remove the excess
Chain (T) and discard it.
4. Use one chain connector(V) to attach one end of the
chain to the Top loop (W) and close the chain connector.
5. Feed the fixture wires (U) through the Chain (every
three links) and pull the wires until taut.
6. Slip Canopy loop collar (S) over the chain, then do the
same with the canopy (Q).
.
Fig 2
7. When ready to complete the installation Use the other
chain connector and attach the other end of the chain to
the canopy loop (R) and close the chain connector.
8. Make sure the weight of the chandelier is supported
by the chain-not the electrical wire.
