FINISHING THE INSALLATION (Fig.3)

9. Place the fixture’s canopy over the Mounting Strap (B)

and over the Mounting Screws (A), adjust the fixture canopy

(F) until the Mounting Screws (A) protrude out from the

canopy (F) and secure the fixture against the ceiling by

threading the decorative nuts (E) until tight.

10. Install the light bulbs and fabric shade as per the fixture

assembly sheet.

YOUR INSTALLATION IS NOW COMPLETE. RETURN

POWER TO THE JUNCTION BOX AND TEST THE

FIXTURE.

Fig. 3

For Customer Service, contact the place of purchase to arrange for replacement parts.

WARNING ! SHUT OFF POWER AT FUSE OR CIRCUIT BREAKER.

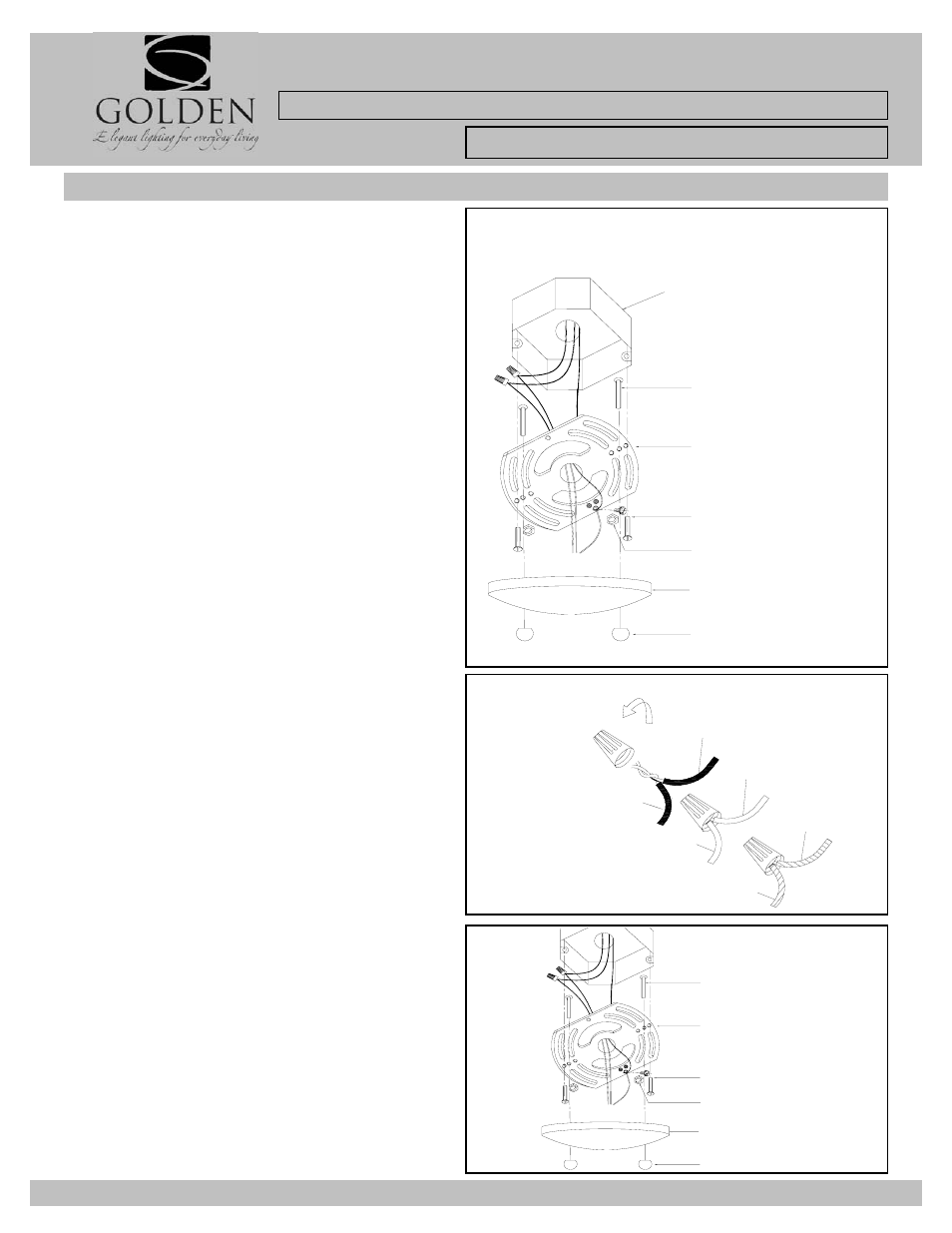

HANGING THE FIXTURE as Semi flush (Fig. 1)

1. Carefully remove the new fixture from the carton

and the yellow bag that holds all your parts. Check

that all parts are included as shown in the illustration

and parts list.

2. Shut off power at the circuit breaker and remove the

old fixture from ceiling, including the old mounting

strap.

3. The Circular mounting strap (B ) contains several

pairs of threaded holes, find the pair of holes that

match the hole spacing in your fixture Back Plate (D)

and thread the two Mounting Screws (A) half way into

the Mounting strap (B) facing down, Secure in place

with hex nuts. These will have their threaded ends

protrude through the two holes in the fixture

canopy(F).

4. Place the Mounting Strap (B ) over the junction box.

5. Attach the Mounting Strap (B) to the Junction Box

using the two mounting screws (C). Tighten the

screws (C) securely with screw driver.

Fig. 1

CONNECTING THE WIRES (Fig 2)

6. Attach the power supply wires to the fixture lead wires by

connecting BLACK to BLACK (or SMOOTH) and WHITE to

WHITE (or RIBBED).

7. Attach the GROUND wire(GREEN or COPPER) from the

Junction Box and the fixture Ground wire to the green

Ground Screw on the Mounting Bracket (B) or connect both

wires together using the correct size of wire connectors.

NOTE: Twist the wires together in the same direction you

twist the wire connector onto the wires.

8. Tuck these wire connections neatly into the Junction Box.

Fig. 2

INSTALLATION INSTRUCTIONS

Fixture Name: Cerchi 1030-SF CH

For Semi Flush / Convertible Light Fixture

BARE COPPER

(Ground)

GREEN
(Ground)

FIXTURE WIRES

SMOOTH (BLACK)

RIBBED (WHITE)

BLACK

WHITE

HOUSE WIRES

JUNCTION BOX

(CEILING)
